Features:

• One piece stainless steel design
• 0-100 PSIG range
• 1/8 NPT fitting
• Connector needed; P/N: I3AS or Delphi Metripack P/N: 12065287

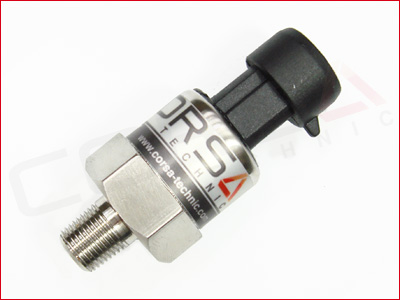

The 1400 series pressure transducers are a reliable, high performance design incorporating MEMS technology for the most demanding measurement applications.

Features:

• One piece stainless steel design
• 0-100 PSIG range
• 1/8 NPT fitting
• Connector needed; P/N: I3AS or Delphi Metripack P/N: 12065287

Specifications:

• Supply voltage: 5.0 + 0.5 VDC
• Supply current: < 10 mA
• Output type: Ratiometric
• Output current: Max. Source 1 mA
• Output impedance: 10 ohms max
• Output voltage: 0.5 to 4.5 VDC at 5.0 VDC excitation
• Pressure range: 0 to 100 PSIG
• Operating temperature range: -40 to +150 C
• Response time: 1 ms
• Accuracy (including non-linearity, hysteresis, repeatability, and thermal errors): 2%FS
• Proof pressure: 200 PSIG
• IP rating: 65
• Weight: 40g

Click here to view data sheet

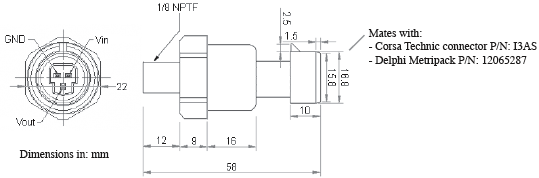

Dimensions

Output Plot
