UP28U-SKT1

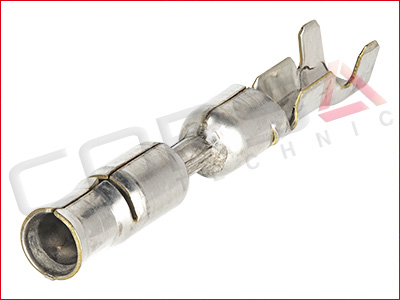

2.8mm ''Wedgelock'' Socket Terminal
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| UP28U-SKT1 | .85 mm2 (18 AWG) | Tin | D9AB-14488-NA |
| - | 1.25 mm2 (16 AWG) | Tin | D9AB-14488-PA |
| - | 2.0 mm2 (14 AWG) | Tin | D1AB-14488-CA |
| Available stock: Aftermarket OEM | |||
Documents
Drawing (C-1438248_B2.pdf)Specifications
General
- Sealing:Matte Sealed
- Contact Size:2.8mm (.110)
- Wire Size:0.85 - 2.00 mm2
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
