UP16-4S-A
4-Way Kit

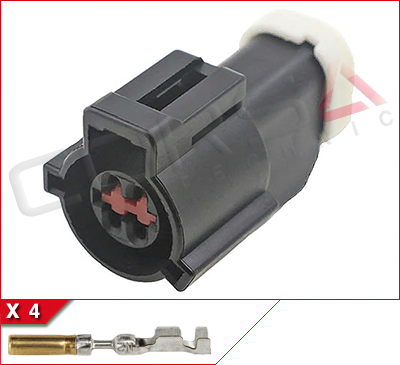

Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing, 4x sockets for 20-18 AWG wire, TPA
Mfr:OEM Ford
Series:1.6mm Micropin "Wedgelock"
OEM P/N:E6DB-14A464-AA
Keying:A
Mating Part:1F1T-14A624-DA
Gray seal for 2.41-3.18mm insulation wire
Specifications
General
- Sealing:Matte Sealed
- Number of Ways:4
- Contact Size:1.58mm (.063)
- Wire Size:0.25 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:8.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 135 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Ford 1U2Z-14S411-BGA, WPT-152 (Tin plated terminals) pigtail connector
- Ford 7U2Z-14S411-MA, WPT-894 (Tin and gold plated terminals) pigtail connector
- Ford 1U2Z-14S411-LA, WPT-112 (Gold plated terminals) pigtail connector
- Ford 1F1T-14A464-FA
