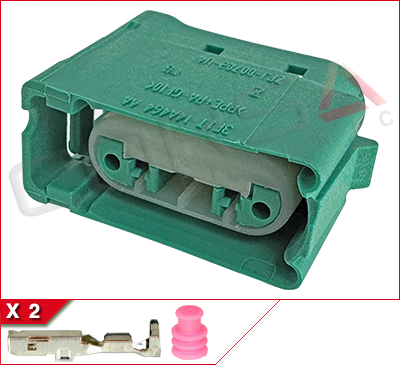

FM60-3S-1-MOD3-Way Kit (Middle cavity blocked)
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing, 2 socket contacts, 2 seals
Mfr:OEM Federal Mogul
Series:6.0 Centerline
OEM P/N:ZFJ-00702-UA
Keying:A
Mating Part:N/A, device only
NOTE: 3-way housing, however, the middle cavity is blocked
Specifications
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPE/PA+GF10
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
Cross Reference List
- Ford 3F1T-14A464-AA
- Ford 6U2Z-14S411-CA, WPT-868 (tin plated terminals) pigtail connector
