Mfr:TE Connectivity/Raychem

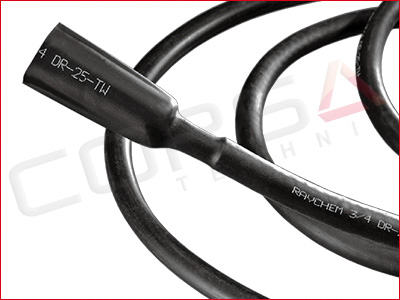

DR-25-TW flexible fluid resistant elastomeric tubing, developed from DR-25, is a thin wall version ideal for use where space and weight saving are important.
A high performance 2:1 shrink ratio, flame retardant, chemical and abrasion resistant tubing. Ideally suited for the demands of motorsport cable harnesses.
Spec: VG95343 Part 5 Type D
Operating Temperature: -75°C to +150°C
Min. Shrink Temperature: 125°C

Size (In.)	Expanded I.D. mm (In.)	Recovered I.D. mm (In.)	Nom. Recovered Wall Thickness mm (In.)	Full spool amount
3/32	3.2 (.125)	1.6 (.062)	0.51 (.020)	150m (492 ft)
1/8	3.2 (.125)	1.6 (.062)	0.51 (.020)	150m (492 ft)
3/16	4.8 (.187)	2.4 (.093)	0.51 (.020)	150m (492 ft)
1/4	6.4 (.250)	3.2 (.125)	0.64 (.025)	75m (246 ft)
3/8	9.5 (.375)	4.8 (.187)	0.64 (.025)	75m (246 ft)
1/2	12.7 (.500)	6.4 (.250)	0.64 (.025)	75m (246 ft)
3/4	19.0 (.748)	9.5 (.375)	0.76 (.030)	75m (246 ft)
1	25.4 (1.00)	12.7 (.500)	0.89 (.035)	30m (98 ft)
1 1/2	38.0 (1.50)	19.0 (.748)	1.02 (.040)	30m (98 ft)
