Home ▹ Connectors ▹ By Manufacturer ▹ Deutsch ▹ DT Series

DT Series

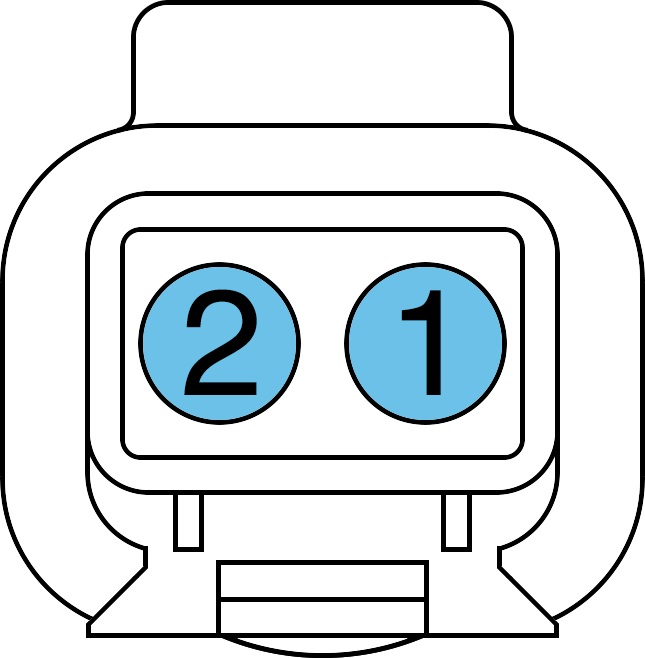

2-Way Receptacle
DT-2P GRY.N
2-Way Receptacle
DT-2P GRY.N  2-Way Receptacle

Mfr: Deutsch
Series: DT
Mating Part: DT-2S

ColorSealCapPart Number
GreyN-Seal (Std)-DT04-2P, -P004
GreyN-Seal (Std)ShortDT04-2P-E003, -EP04
GreyN-Seal (Std)LongDT04-2P-E008
GreyE-Seal-DT04-2P-C015
GreyE-SealShortDT04-2P-CE01
GreyE-SealLongDT04-2P-CE04
BlackN-Seal (Std)-DT04-2P-E004
BlackN-Seal (Std)ShortDT04-2P-E005
BlackN-Seal (Std)LongDT04-2P-EE01
BlackE-Seal-DT04-2P-CE02
BlackE-SealShortDT04-2P-CE03
BlackE-SealLongDT04-2P-CE09
Availability: In-Stock

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.46mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.01
6-19$0.96
20-49$0.91
50-99$0.86
100+$0.81
Quantity:  Ea

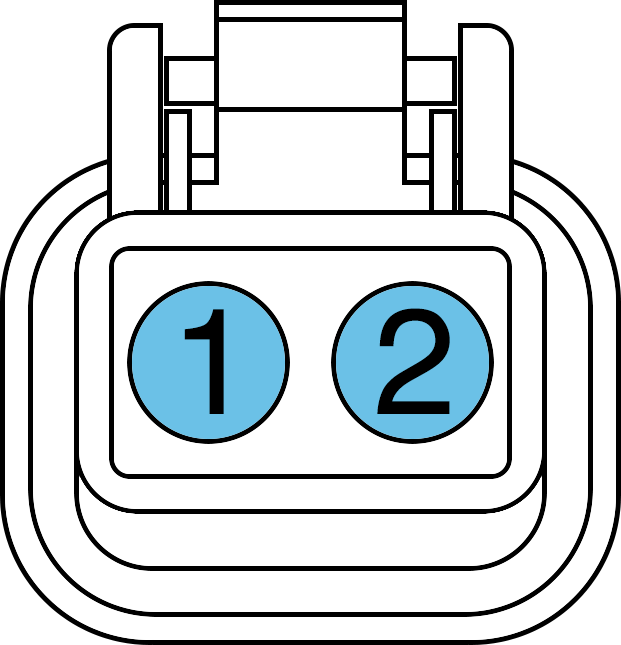

2-Way Plug
DT-2S GRY.N
2-Way Plug
DT-2S GRY.N  2-Way Plug

Mfr: Deutsch
Series: DT
Mating Part: DT-2P

ColorSealCapPart Number
GreyN-Seal (Std)-DT06-2S, -P004
GreyN-Seal (Std)ShortDT06-2S-E003, -EP04
GreyN-Seal (Std)LongDT06-2S-E008
GreyE-Seal-DT06-2S-C015
GreyE-SealShortDT06-2S-CE01
GreyE-SealLongDT06-2S-CE04
BlackN-Seal (Std)-DT06-2S-E004
BlackN-Seal (Std)ShortDT06-2S-E005, EP06
BlackN-Seal (Std)LongDT06-2S-EP11
BlackE-Seal-DT06-2S-CE06
BlackE-SealShortDT06-2S-CE03, -CE05
BlackE-SealLongDT06-2S-CE13
Availability: In-Stock

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.46mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.05
6-19$1.00
20-49$0.95
50-99$0.89
100+$0.84
Quantity:  Ea

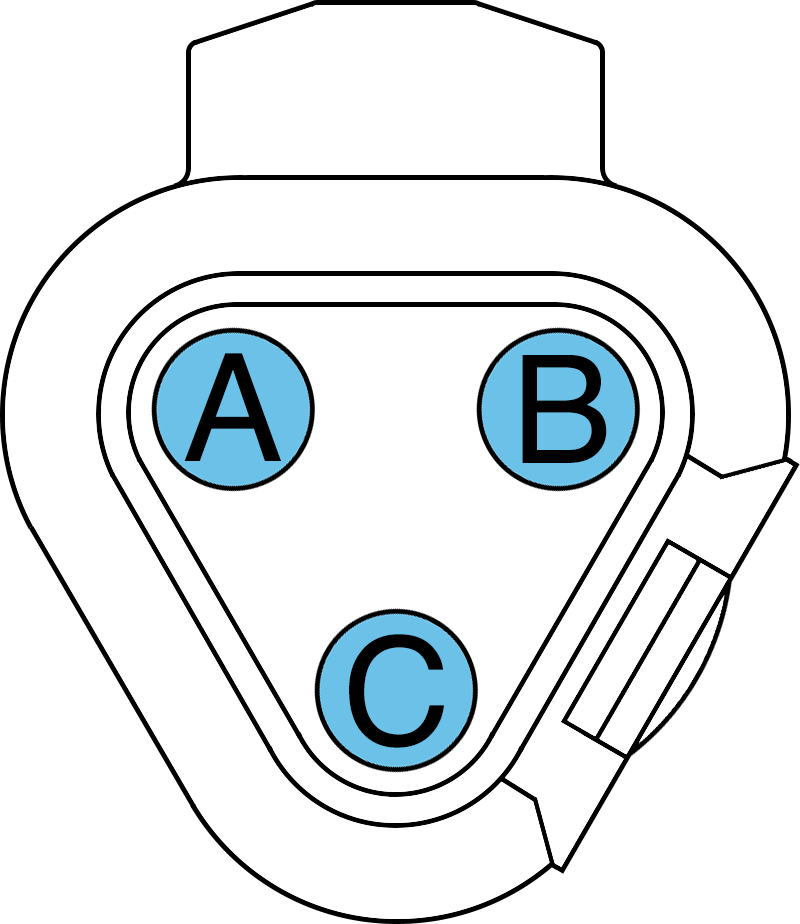

3-Way Receptacle
DT-3P GRY.N
3-Way Receptacle
DT-3P GRY.N  3-Way Receptacle

Mfr: Deutsch
Series: DT
Mating Part: DT-3S

ColorSealCapPart Number
GreyN-Seal (Std)-DT04-3P, -P004
GreyN-Seal (Std)ShortDT04-3P-E003, -EP04
GreyN-Seal (Std)LongDT04-3P-E008
GreyE-Seal-DT04-3P-C015
GreyE-SealShortDT04-3P-CE01
GreyE-SealLongDT04-3P-CE04
BlackN-Seal (Std)-DT04-3P-E004
BlackN-Seal (Std)ShortDT04-3P-E005
BlackN-Seal (Std)LongDT04-3P-EE01
BlackE-Seal-DT04-3P-CE02
BlackE-SealShortDT04-3P-CE03
BlackE-SealLongDT04-3P-CE09
Availability: In-Stock

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Pin, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.60
6-19$1.52
20-49$1.44
50-99$1.36
100+$1.28
Quantity:  Ea

3-Way Plug
DT-3S GRY.N
3-Way Plug
DT-3S GRY.N  3-Way Plug

Mfr: Deutsch
Series: DT
Mating Part: DT-3P

ColorSealCapPart Number
GreyN-Seal (Std)-DT06-3S, -P004
GreyN-Seal (Std)ShortDT06-3S-E003, -EP04
GreyN-Seal (Std)LongDT06-3S-E008
GreyE-Seal-DT06-3S-C015
GreyE-SealShortDT06-3S-CE01
GreyE-SealLongDT06-3S-CE04
BlackN-Seal (Std)-DT06-3S-E004
BlackN-Seal (Std)ShortDT06-3S-E005
BlackN-Seal (Std)LongDT06-3S-EP11
BlackE-Seal-DT06-3S-CE02
BlackE-SealShortDT06-3S-CE05
BlackE-SealLongDT06-3S-CE13
Availability: In-Stock

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Alphabetically
Mechanical
  • Contact Type:Socket, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.62
6-19$1.54
20-49$1.46
50-99$1.38
100+$1.30
Quantity:  Ea

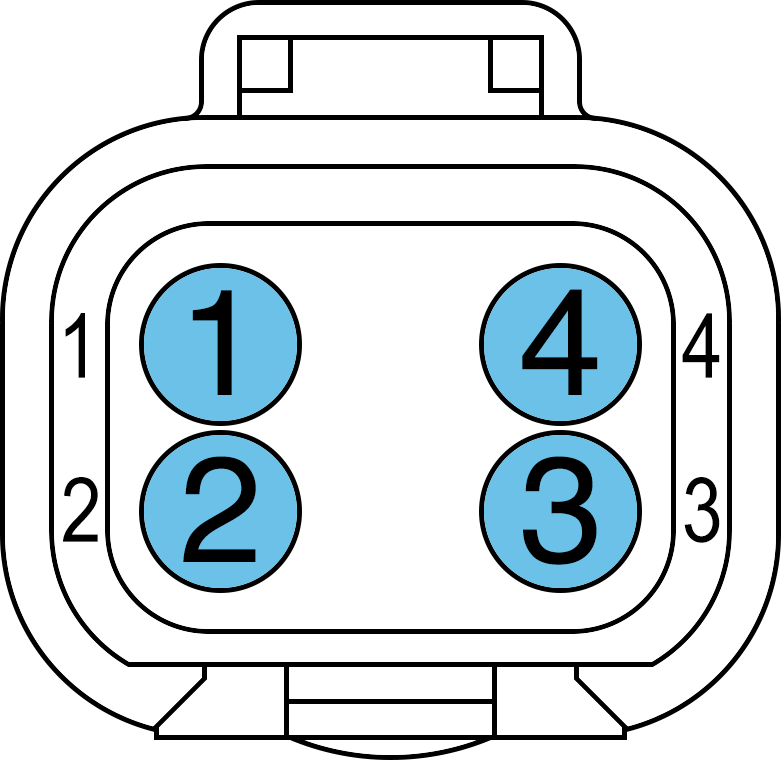

4-Way Receptacle
DT-4P
4-Way Receptacle
DT-4P  4-Way Receptacle

Mfr: Deutsch
Series: DT
Mating Part: DT-4S

ColorSealCapPart Number
GreyN-Seal (Std)-DT04-4P, -P004
GreyN-Seal (Std)ShortDT04-4P-E003, -EP04
GreyN-Seal (Std)LongDT04-4P-E008
GreyE-Seal-DT04-4P-C015
GreyE-SealShortDT04-4P-CE01
GreyE-SealLongDT04-4P-CE04
BlackN-Seal (Std)-DT04-4P-E004
BlackN-Seal (Std)ShortDT04-4P-E005
BlackN-Seal (Std)LongDT04-4P-EE01
BlackE-Seal-DT04-4P-CE02
BlackE-SealShortDT04-4P-CE03
BlackE-SealLongDT04-4P-CE09
Availability: In-Stock

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:2
  • Pitch:4.4mm
  • Row Spacing:9.1mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
6-19 5%
20-4910%
50-9915%
100+20%
Quantity:  Ea

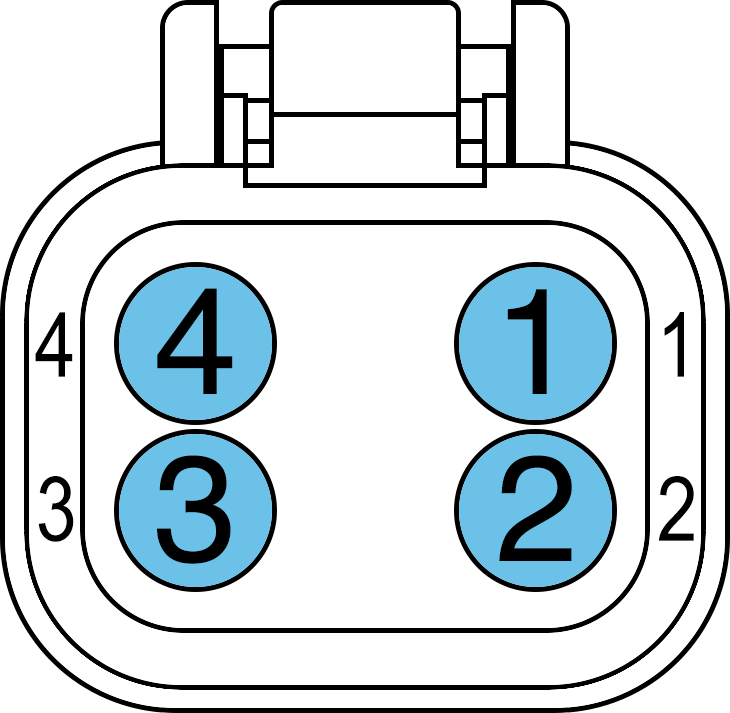

4-Way Plug
DT-4S
4-Way Plug
DT-4S  4-Way Plug

Mfr: Deutsch
Series: DT
Mating Part: DT-4P

ColorSealCapPart Number
GreyN-Seal (Std)-DT06-4S, -P004
GreyN-Seal (Std)ShortDT06-4S-E003, -EP04
GreyN-Seal (Std)LongDT06-4S-E008
GreyE-Seal-DT06-4S-C015
GreyE-SealShortDT06-4S-CE01
GreyE-SealLongDT06-4S-CE04
BlackN-Seal (Std)-DT06-4S-E004, -P012
BlackN-Seal (Std)ShortDT06-4S-E005, EP06
BlackN-Seal (Std)LongDT06-4S-EP11
BlackE-Seal-DT06-4S-CE02, -CE06
BlackE-SealShortDT06-4S-CE03, -CE05
BlackE-SealLongDT06-4S-CE13
Availability: In-Stock

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:2
  • Pitch:4.4mm
  • Row Spacing:9.1mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Coming Soon
This item is backordered.

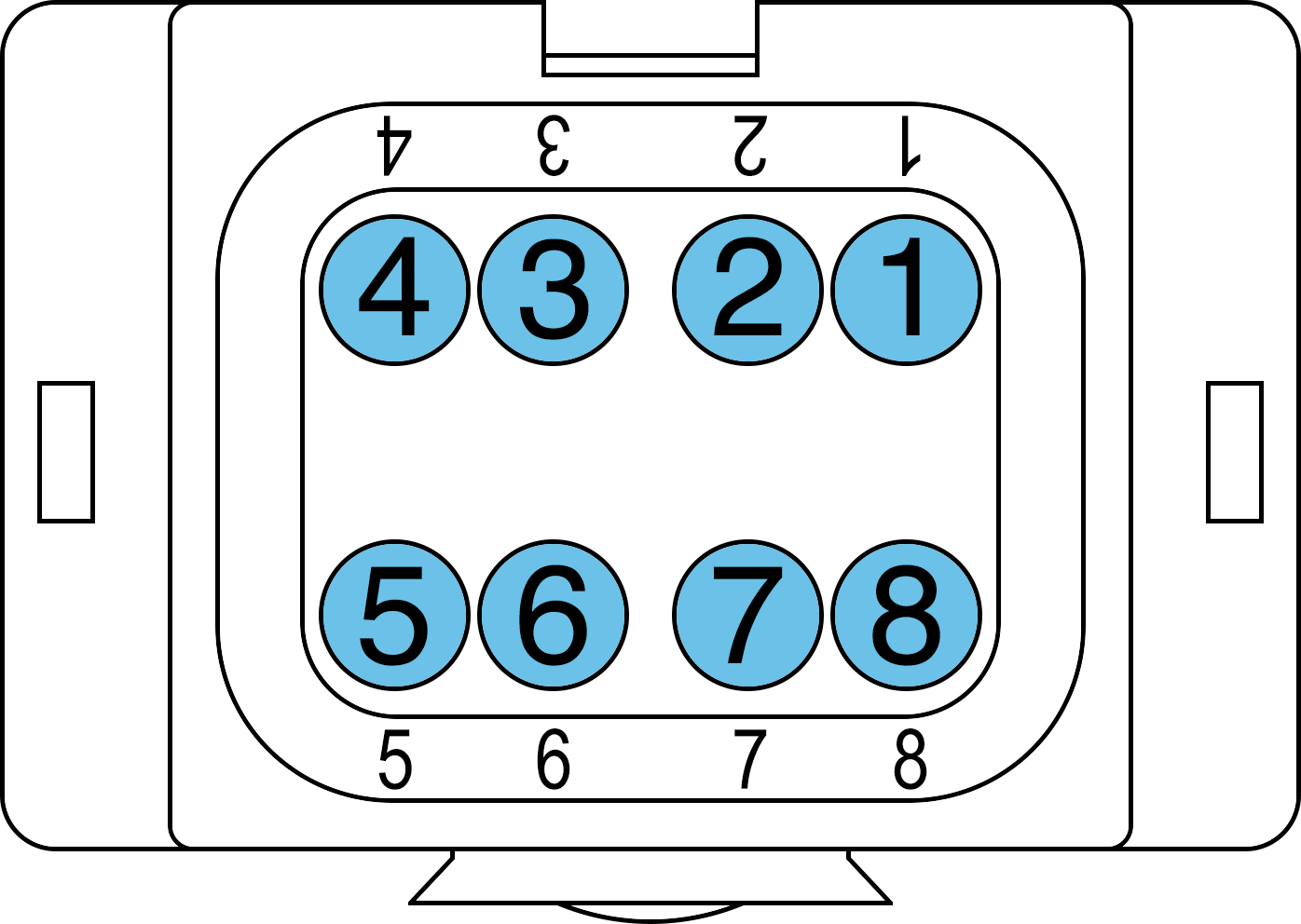

8-Way Receptacle
DT-8P GRY.N.A
8-Way Receptacle
DT-8P GRY.N.A  8-Way Receptacle

Mfr: Deutsch
Series: DT
Mating Part: DT-8S-x

KeyColorSealCapPart Number
AGreyN-Seal (Std)-DT04-08PA, -P004
GreyN-Seal (Std)ShortDT04-08PA-E003, -EP04
GreyN-Seal (Std)LongDT04-08PA-E008
GreyE-Seal-DT04-08PA-C015
GreyE-SealShortDT04-08PA-CE01
GreyE-SealLongDT04-08PA-CE04
BlackN-Seal (Std)-DT04-08PA-E004
BlackN-Seal (Std)ShortDT04-08PA-E005
BlackN-Seal (Std)LongDT04-08PA-EE01 (obs.)
BlackE-Seal-DT04-08PA-CE02
BlackE-SealShortDT04-08PA-CE03
BlackE-SealLongDT04-08PA-CE09
BBlackN-Seal (Std)-DT04-08PB
BlackN-Seal (Std)ShortDT04-08PB-E003
BlackN-Seal (Std)Longn/a
BlackE-Seal-DT04-08PB-C015
BlackE-SealShortDT04-08PB-CE01
BlackE-SealLongn/a
Availability: In-Stock
Many more combinations exist. See drawing for details.

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:8
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:9.1mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.06
6-19$3.86
20-49$3.65
50-99$3.45
100+$3.25
Quantity:  Ea

8-Way Plug
DT-8S GRY.N.A
8-Way Plug
DT-8S GRY.N.A  8-Way Plug

Mfr: Deutsch
Series: DT
Mating Part: DT-8P-x

KeyColorSealCapPart Number
AGreyN-Seal (Std)-DT06-08SA, -P004
GreyN-Seal (Std)ShortDT06-08SA-E003, -EP04
GreyN-Seal (Std)LongDT06-08SA-E008
GreyE-Seal-DT06-08SA-C015
GreyE-SealShortDT06-08SA-CE01
GreyE-SealLongDT06-08SA-CE04
BlackN-Seal (Std)-DT06-08SA-E004
BlackN-Seal (Std)ShortDT06-08SA-E005
BlackN-Seal (Std)Longn/a, see P012 style, -EP11
BlackE-Seal-ss by P012 style, -CE10
BlackE-SealShortss by P012 style, -CE11
BlackE-SealLongss by P012 style, -CE12
BBlackN-Seal (Std)-DT06-08SB
BlackN-Seal (Std)ShortDT06-08SB-E003, -EP04
BlackN-Seal (Std)Longn/a
BlackE-Seal-DT06-08SB-C015
BlackE-SealShortDT06-08SB-CE01
BlackE-SealLongn/a
Availability: In-Stock
Many more combinations exist. See drawing for details.

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:8
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:9.1mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.76
6-19$4.52
20-49$4.28
50-99$4.05
100+$3.81
Quantity:  Ea

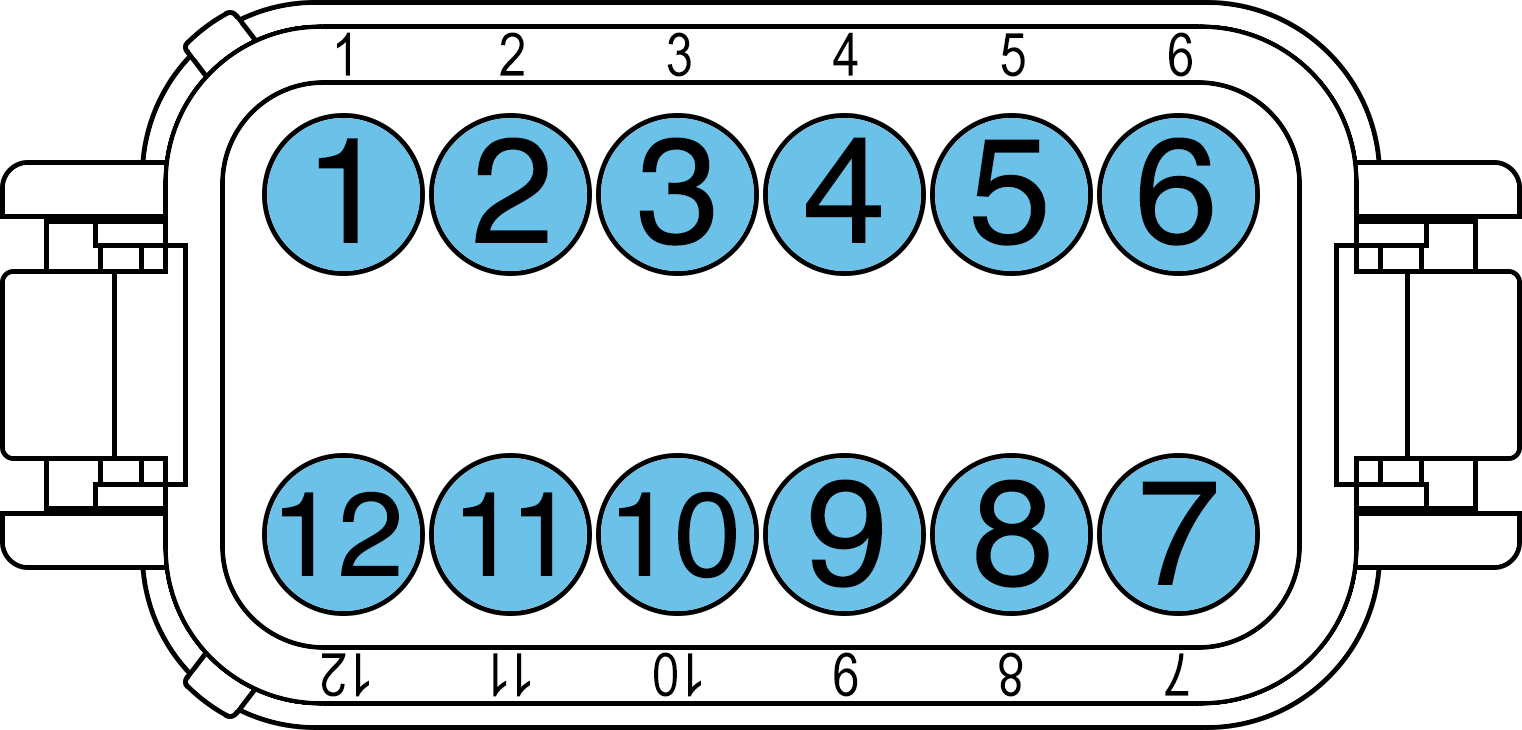

12-Way Plug
DT-12S BLK.N.B
12-Way Plug
DT-12S BLK.N.B  12-Way Plug

Mfr: Deutsch
Series: DT

KeyColorSealCapPart Number
AGreyN-Seal (Std)-DT06-12SA, -P004
GreyN-Seal (Std)ShortDT06-12SA-E003, -EP04
GreyN-Seal (Std)LongDT06-12SA-E008
GreyE-Seal-DT06-12SA-C015
GreyE-SealShortDT06-12SA-CE01
GreyE-SealLongDT06-12SA-CE04
BlackN-Seal (Std)-n/a
BlackN-Seal (Std)ShortDT06-12SA-E005
BlackN-Seal (Std)Longn/a, see B016 style, -EP11
BlackE-Seal-DT06-12SA-CE02
BlackE-SealShortCE03 ss by P012 style, -CE11
BlackE-SealLongn/a, see P012 style, -CE12
BBlackN-Seal (Std)-DT06-12SB
BlackN-Seal (Std)ShortDT06-12SB-E003, -EP04
BlackN-Seal (Std)LongDT06-12SB-E008
BlackE-Seal-DT06-12SB-C015
BlackE-SealShortDT06-12SB-CE01
BlackE-SealLongDT06-12SB-CE04
Availability: In-Stock
Many more combinations exist. See drawing for details.

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:12
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
  • Number of Rows:2
  • Pitch:4.4mm
  • Row Spacing:9.1mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, circular
  • Termination:Multi-option
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:13A
  • Voltage Rating:250V (AC, DC)
Environmental
  • Temp Range[2]:-55 - 125 °C
  • Protection Rating:IP68, IP6K9K
  • Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$5.95
6-19$5.65
20-49$5.36
50-99$5.06
100+$4.76
Quantity:  Ea

Deutsch Size 16 Solid Pin Terminal
DEU.16-PIN2
Deutsch Size 16 Solid Pin Terminal
DEU.16-PIN2  Deutsch Size 16 Solid Pin Terminal

Mfr: Deutsch
Series: DT

Wire SizePlatingPart Number
DEU.16-PIN1.50-1.5 mm2 (20-16 AWG)Nickel0460-202-16141
-AuGold0460-202-1631
DEU.16-PIN22.0 mm2 (14 AWG)Nickel0460-215-16141
-AuGold0460-215-1631
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.47
50-99$0.45
100-249$0.42
250-499$0.38
500+$0.33
Quantity:  Ea

Deutsch Size 16 Solid Socket Terminal
DEU.16-SKT2
Deutsch Size 16 Solid Socket Terminal
DEU.16-SKT2  Deutsch Size 16 Solid Socket Terminal

Mfr: Deutsch
Series: DT

Wire SizePlatingPart Number
DEU.16-SKT1.50-1.5 mm2 (20-16 AWG)Nickel0462-201-16141
-AuGold0462-201-1631
DEU.16-SKT22.0 mm2 (14 AWG)Nickel0462-209-16141
-AuGold0462-209-1631
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.00 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.48
50-99$0.46
100-249$0.43
250-499$0.38
500+$0.34
Quantity:  Ea

Deutsch Size 16 Stamped & Formed Pin Terminal
DEU.16SFC-PIN
Deutsch Size 16 Stamped & Formed Pin Terminal
DEU.16SFC-PIN  Deutsch Size 16 Stamped & Formed Pin Terminal

Mfr: Deutsch
Series: DT

Wire SizePlatingPart Number
DEU.16SFC-PIN10.50-1.0 mm2 (20-16 AWG)
1.40-2.54mm (.055-.100in) Insulation dia		Nickel1060-16-0622
-AuGold1060-16-0644
DEU.16SFC-PIN20.75-2.0 mm2 (18-14 AWG)
1.90-3.55mm (.075-.140in) Insulation dia		Nickel1060-16-0122
-AuGold1060-16-0144
DEU.16SFC-PIN30.75-2.0 mm2 (18-14 AWG)
2.41-3.81mm (.095-.150in) Insulation dia		Nickel1060-14-0122
-AuGold1060-14-0144
DEU.16SFC-PIN41.0-2.5 mm2 (16-12 AWG)
1.90-3.55mm (.075-.140in) Insulation dia		Nickel1060-16-1222
-AuGold1060-16-1244
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
50-99 5%
100-24910%
250-49920%
500+30%
Quantity:  Ea

Deutsch Size 16 Stamped & Formed Socket Terminal
DEU.16SFC-SKT
Deutsch Size 16 Stamped & Formed Socket Terminal
DEU.16SFC-SKT  Deutsch Size 16 Stamped & Formed Socket Terminal

Mfr: Deutsch
Series: DT

Wire SizePlatingPart Number
DEU.16SFC-SKT10.50-1.0 mm2 (20-16 AWG)
1.40-2.54mm (.055-.100in) Insulation dia		Nickel1062-16-0622
-AuGold1062-16-0644
DEU.16SFC-SKT20.75-2.0 mm2 (18-14 AWG)
1.90-3.55mm (.075-.140in) Insulation dia		Nickel1062-16-0122
-AuGold1062-16-0144
DEU.16SFC-SKT30.75-2.0 mm2 (18-14 AWG)
2.41-3.81mm (.095-.150in) Insulation dia		Nickel1062-14-0122
-AuGold1062-14-0144
DEU.16SFC-SKT41.0-2.5 mm2 (16-12 AWG)
1.90-3.55mm (.075-.140in) Insulation dia		Nickel1062-16-1222
-AuGold1062-16-1244
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
Mechanical
  • Contact Type:Socket, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
50-99 5%
100-24910%
250-49920%
500+30%
Quantity:  Ea

Deutsch Size 12-16 Seal Plug
DEU.12/16-PG
Deutsch Size 12-16 Seal Plug
OEM P/N: 114017-ZZ
DEU.12/16-PG  Deutsch Size 12-16 Seal Plug

Mfr: Deutsch
Series: DT, DTHD, DTP
OEM P/N: 114017-ZZ

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.16
500+$0.14
Quantity:  Ea

DT 2-Pin Receptacle Wedge Lock
DT-2P LOCK
DT 2-Pin Receptacle Wedge Lock
DT-2P LOCK  DT 2-Pin Receptacle Wedge Lock

Mfr: Deutsch
Series: DT

ColorKeyingPart Number
GreenStdW2P
GreyAW2PA
BlackBW2PB
GreenCW2PC
BrownDW2PD
Availability: In-Stock

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500+$0.11
Quantity:  Ea

DT 2-Pin Plug Wedge Lock
DT-2S LOCK
DT 2-Pin Plug Wedge Lock
DT-2S LOCK  DT 2-Pin Plug Wedge Lock

Mfr: Deutsch
Series: DT

ColorKeyingPart Number
OrangeStdW2S
GreyAW2SA
BlackBW2SB
GreenCW2SC
BrownDW2SD
Availability: In-Stock

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.16
500+$0.14
Quantity:  Ea

DT 3-Pin Receptacle Wedge Lock
DT-3P LOCK
DT 3-Pin Receptacle Wedge Lock
DT-3P LOCK  DT 3-Pin Receptacle Wedge Lock

Mfr: Deutsch
Series: DT

ColorKeyingPart Number
GreenStdW3P
BlueJ1939W3P-J1939
Availability: In-Stock

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.16
500+$0.14
Quantity:  Ea

DT 3-Pin Plug Wedge Lock
DT-3S LOCK
DT 3-Pin Plug Wedge Lock
DT-3S LOCK  DT 3-Pin Plug Wedge Lock

Mfr: Deutsch
Series: DT

ColorKeyingPart Number
OrangeStdW3S
BlueJ1939W3S-J1939
Availability: In-Stock

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.14
50-99$0.13
100-249$0.13
250-499$0.11
500+$0.10
Quantity:  Ea

DT 4-Pin Receptacle Wedge Lock
DT-4P LOCK
DT 4-Pin Receptacle Wedge Lock
DT-4P LOCK  DT 4-Pin Receptacle Wedge Lock

Mfr: Deutsch
Series: DT

ColorKeyingPart Number
GreenStdW4P
GrayAW4PA
BlackBW4PB
GreenCW4PC
BrownDW4PD
Availability: In-Stock

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.15
500+$0.13
Quantity:  Ea

DT 8-Pin Receptacle Wedge Lock
DT-8P LOCK
DT 8-Pin Receptacle Wedge Lock
OEM P/N: W8P
DT-8P LOCK  DT 8-Pin Receptacle Wedge Lock

Mfr: Deutsch
Series: DT
OEM P/N: W8P

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.34
50-99$0.32
100-249$0.31
250-499$0.27
500+$0.24
Quantity:  Ea

DT 8-Pin Plug Wedge Lock
DT-8S LOCK
DT 8-Pin Plug Wedge Lock
OEM P/N: W8S
DT-8S LOCK  DT 8-Pin Plug Wedge Lock

Mfr: Deutsch
Series: DT
OEM P/N: W8S

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.32
50-99$0.30
100-249$0.29
250-499$0.26
500+$0.22
Quantity:  Ea

DT 8-Pin Plug Wedge Lock ''P012''
DT-8S-P012 LOCK
DT 8-Pin Plug Wedge Lock ''P012''
OEM P/N: W8S-P012
DT-8S-P012 LOCK  DT 8-Pin Plug Wedge Lock ''P012''

Mfr: Deutsch
Series: DT
OEM P/N: W8S-P012

spacer
Environmental
  • Temp Range[2]:-55 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.31
50-99$0.29
100-249$0.28
250-499$0.25
500+$0.22
Quantity:  Ea

Size 16, Blue/White
M81969/14-03
Size 16, Blue/White
M81969/14-03  Size 16, Blue/White

Insert/Removal tool for size 16 contacts

*Recommended insert tool for Deutsch DT series, and can work for removal also, but removal is easier with correct tool, DT-RT1


Price: $0.72
Quantity:  Ea

Deutsch Removal Tool For Front-Release Connectors
TOOL-IRT18
Deutsch Removal Tool For Front-Release Connectors
OEM P/N: DT-RT1
TOOL-IRT18  Deutsch Removal Tool For Front-Release Connectors

OEM P/N: DT-RT1
Removal tool for TPA and front release contacts of a variety of Deutsch connector families.

Price: $13.60
Quantity:  Ea

M22520/7-03 Size 16 Contact Positioner
86-2
M22520/7-03 Size 16 Contact Positioner
OEM P/N: 86-2
86-2  M22520/7-03 Size 16 Contact Positioner

OEM P/N: 86-2
For use with the following contacts:
  • Deutsch DT size 16 solid contacts (20-16 AWG)
  • M39029/4-111, -112
  • M39029/5-116, -117
  • M39029/11-146
  • M39029/12-150
  • M39029/29-212
  • M39029/30-218
  • M39029/31-228 thru -233
  • M39029/32-247 thru -252
  • M39029/123-676
  • M39029/124-681
Qualified to AS22520/7

Price: $80.10
Quantity:  Ea

M22520/1-02 Size 20, 16, 12 Contact Positioner
TH1A
M22520/1-02 Size 20, 16, 12 Contact Positioner
OEM P/N: TH1A
TH1A  M22520/1-02 Size 20, 16, 12 Contact Positioner

OEM P/N: TH1A
For use with the following contacts:

TurretContacts
RED
  • Deutsch DTM size 20 solid contacts
  • M39029/1-101
  • M39029/2-105
  • M39029/3-108
  • M39029/4-110
  • M39029/5-115
  • M39029/9-132 thru -136
  • M39029/10-138 thru -142
  • M39029/31-223 thru -227, -240, -448, -627
  • M39029/32-242 thru -246, -259, -260, -449
  • M39029/92-532
BLUE
  • Deutsch DT size 16 solid contacts
  • M39029/1-102
  • M39029/2-106
  • M39029/3-109
  • M39029/4-111, -112
  • M39029/5-116, -117
  • M39029/11-146
  • M39029/12-150
  • M39029/29-212
  • M39029/30-217, -218
  • M39029/31-228 thru -233
  • M39029/32-247 thru -252
  • M39029/92-533, -534
  • M39029/123-676
  • M39029/124-681
YELLOW
  • Deutsch DTP size 12 solid contacts
  • M39029/1-103
  • M39029/4-113, -114
  • M39029/5-118, -119
  • M39029/29-213
  • M39029/30-219
  • M39029/31-234 thru -239
  • M39029/32-253 thru -258
  • M39029/44-289, -290
  • M39029/45-296, -297
  • M39029/92-535, -536
  • M39029/123-677
  • M39029/124-682
Qualified to AS22520/1

Price: $164.58
Quantity:  Ea

Deutsch Closed Barrel Crimper (Size 20, 16)
TOOL-CF5
Deutsch Closed Barrel Crimper (Size 20, 16)
OEM P/N: 902-499
TOOL-CF5  Deutsch Closed Barrel Crimper (Size 20, 16)

OEM P/N: 902-499
Crimps Deutsch size 20 and 16 closed barrel (screw machine) 20-14 AWG terminals.
  • Economical crimper delivers the same type of crimp the more expensive MIL-Spec tools provide.
  • Built-in locator assures accurate positioning of the pin and socket.
  • Full cycle ratchet insures a complete and perfect crimp each and every time.
  • Cushioned grips. Compact 6.5" size.
NOTE: For size 20 contacts the locator needs to be removed and the contact manually positioned.

Price: $36.75
Quantity:  Ea

Deutsch Solid Contact Crimper (Sizes 20, 16, 12)
TOOL-CF12
Deutsch Solid Contact Crimper (Sizes 20, 16, 12)
OEM P/N: HDT-48-00
TOOL-CF12  Deutsch Solid Contact Crimper (Sizes 20, 16, 12)

OEM P/N: HDT-48-00
Crimps Deutsch size 20, 16 and 12 solid contacts.
  • Wide crimp range of .50-3.0 mm2 (20-12 AWG)
  • Adjustable height locator.
  • Full cycle ratchet insures a complete and perfect crimp each and every time.
  • Cushioned grips. 9.9" size.
NOTE: While this tool covers a large range of terminals, it must be adjusted for each type/size of contact.

Price: $309.80
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
