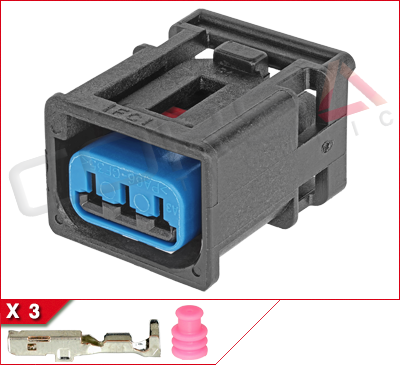

RDC-3S-A3-Way Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing, 3 socket contacts, 3 seals
Mfr:OEM FCI/FORD
Series:RDC Series
OEM P/N:Ford: 1W7T-14A464-LA
FCI: 54390312
Keying:A
Mating Part:N/A, Device only
Documents
-
Drawing (1W7T-14A464-LA.pdf) - See related terminal for crimp specs
Specifications
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.50 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Application List
- Engine coolant sensor
Cross Reference List
- Ford 3U2Z-14S411-PXB, WPT-1002 (Tin, greased terminals) pigtail connector
- Ford 3U2Z-14S411-LZA, WPT-560 (Gold plated terminals) pigtail connector
