Coolant Temp Sensor
HW-2S-2
2-Way Kit
Kit Contents: Housing, 2 socket contacts, TPA lock, rear seal
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: Grey: 6189-0156
Green: 6189-0158
Part Name: HW09-TA2FAY-DGR2
HW09-TA2FAY-G
Mating Part: N/A
Kit Contents: Housing, 2 socket contacts, TPA lock, rear seal
Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: Grey: 6189-0156
Green: 6189-0158
Part Name: HW09-TA2FAY-DGR2
HW09-TA2FAY-G
Mating Part: N/A
- See related terminal for crimp specs
-
Series Catalog (HW090-CAT.pdf)
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Row Spacing:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- RS125 Coolant temp sensor
- RS250 Coolant temp sensor
- Many Honda/Acura oil pressure switch, ECT, IAT, Knock sensor
- Honda 9863C-0000200
- KTM 000700000CM
MP150.2-2P-2
2-Way Device Header
Kit Contents: Device header with solder posts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12066016
Kit Contents: Device header with solder posts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12066016
Sensor or device pin header that mates with Delphi P/N's:
- 12162193 (MP150.2-2S-2)
- 15336004 (GT150.35-2S-1)
- 15449028 (GT150.35-2S-3)
- 15336024 (GT150.35-2S-5)
- 12162193 (MP150.2-2S-2)
- 15336004 (GT150.35-2S-1)
- 15449028 (GT150.35-2S-3)
- 15336024 (GT150.35-2S-5)
3D STEP (12066016.zip)General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 0.50 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Solder Cup
- Housing Material:PBT+GF
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP150.2-2S-2
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12162193
Mating Part: MP150.2-2P-2
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150.2 Pull to Seat Series
OEM P/N: 12162193
Mating Part: MP150.2-2P-2
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Cummins 6.7L '07-'18 coolant temp sensor
- GM coolant temp sensors
- DelcoRemy 37MT, 39MT, 41MT, 42MT starter OCP connector
- Harley Davidson 72273-95
- Ford 3U2Z-14S411-EMAA, WPT-751 (Tin plated terminals) pigtail connector

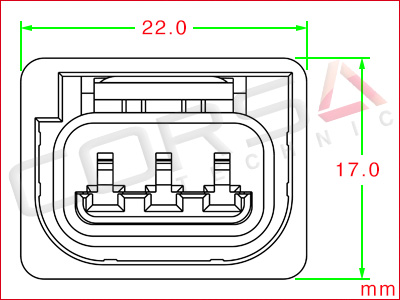

RDC-3S-A
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM FCI/FORD
Series: RDC Series
OEM P/N: Ford: 1W7T-14A464-LA
FCI: 54390312
Keying: A
Mating Part: N/A, Device only
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM FCI/FORD
Series: RDC Series
OEM P/N: Ford: 1W7T-14A464-LA
FCI: 54390312
Keying: A
Mating Part: N/A, Device only
-
Mfr Drawing (1W7T-14A464-LA.pdf)
- See related terminal for crimp specs
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.50 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Engine coolant sensor
- Ford XW4T-14A464-AKA
- Ford 3U2Z-14S411-PXB, WPT-1002 (Tin, greased terminals) pigtail connector
- Ford 3U2Z-14S411-LZA, WPT-560 (Gold plated terminals) pigtail connector

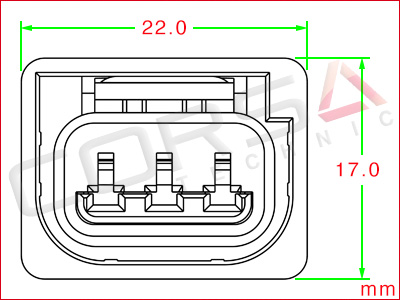

RDC-3S-B
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM FCI/FORD
Series: RDC Series
OEM P/N: Ford: 1W7T-14A464-MA
FCI: 54390310, Aptiv: 15451399
Keying: B
Mating Part: N/A, Device only
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM FCI/FORD
Series: RDC Series
OEM P/N: Ford: 1W7T-14A464-MA
FCI: 54390310, Aptiv: 15451399
Keying: B
Mating Part: N/A, Device only
-
Mfr Drawing (1W7T-14A464-LA.pdf)
- See related terminal for crimp specs
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.50 mm2
- Number of Rows:1
- Pitch:4.5mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Engine coolant sensor
- Ford XW4T-14A464-ARA
- Ford 3U2Z-14S411-KMB, WPT-1205 (Tin, greased terminals) pigtail connector
SSC-2S-D
2-Way Kit (Keying D)
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184006-1 (Green), 184006-2 (Grey)
Keying: D
Mating Part: SSC-2P-D
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Tyco/AMP
Series: Sealed Sensor Connector Series
OEM P/N: 184006-1 (Green), 184006-2 (Grey)
Keying: D
Mating Part: SSC-2P-D
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:17A
- Voltage Rating:125V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Intake temp sensor on various Suzuki motorcycles
- Coolant temp sensor on various Suzuki motorcycles
- Cross-compatible to Econoseal J-series Mk II p/n: 178449-4
- Toyota 90980-10737, 90980-11062
- Ford 3U2Z-14S411-BA, WPT-410 (Green body, Gold plated terminals) pigtail connector
- Ford 3U2Z-14S411-BB (Green body, ? terminals) pigtail connector
- Mopar 05014005AA (green) repair kit connector
YESC.15-2S-5A
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7287-0027-30
Keying: A
Mating Part: N/A, device
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7287-0027-30
Keying: A
Mating Part: N/A, device
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Coolant temp sensor 5S12397, 077AB, 5149077AB, TX195, SU13812
- Mopar 68064995AA repair kit connector
