Lighting and Turn Signals

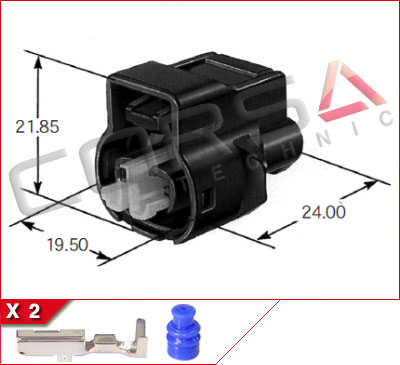

090II-2S-10
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-8228-30 (Black)
7283-8228-40 (Grey)
Mating Part: 7282-8228
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7283-8228-30 (Black)
7283-8228-40 (Grey)
Mating Part: 7282-8228
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11250 (Grey)
305-2S
2-Way Kit
Kit Contents: Housing, 2x 305 socket contacts for 12-10 awg
Mating Part: 305-2P
Kit Contents: Housing, 2x 305 socket contacts for 12-10 awg
Mating Part: 305-2P
- H7 type bulb connector
- Dorman 84717 pigtail connector

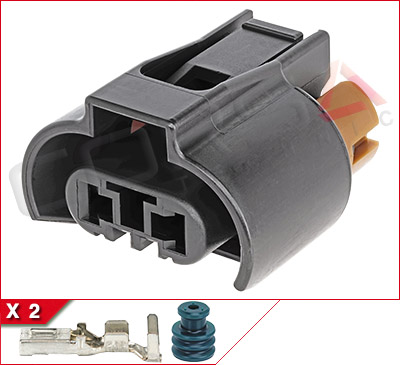

58W-2S-3
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, rear holder/lock
Mfr: OEM Yazaki
Series: 58 W Sealed
OEM P/N: 7283-1927-30
Mating Part: N/A, direct connection
Kit Contents: Housing, 2 socket contacts, 2 seals, rear holder/lock
Mfr: OEM Yazaki
Series: 58 W Sealed
OEM P/N: 7283-1927-30
Mating Part: N/A, direct connection
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- #9005, HB3 headlight
- Ford 1U2Z-14S411-BCA, WPT-148 (Tin plated terminals) pigtail connector

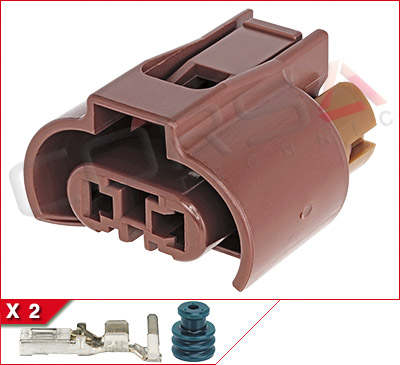

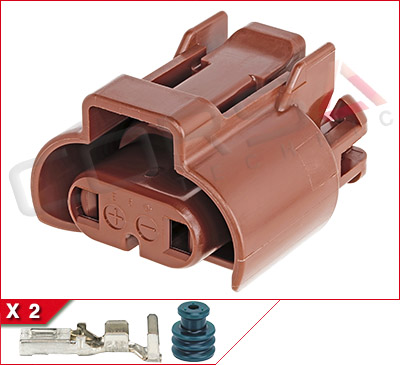

58W-2S-4
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, rear holder/lock
Mfr: OEM Yazaki
Series: 58 W Sealed
OEM P/N: 7283-1928-80
Mating Part: N/A, direct connection
Kit Contents: Housing, 2 socket contacts, 2 seals, rear holder/lock
Mfr: OEM Yazaki
Series: 58 W Sealed
OEM P/N: 7283-1928-80
Mating Part: N/A, direct connection
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- #9006, HB4 headlight
- Ford 3U2Z-14S411-CPAA, WPT-772 (Tin plated terminals) pigtail connector
BC35-1P
3.5mm Bullet Plug kit
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC35-1S, 2x fit in BC35-2S
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC35-1S, 2x fit in BC35-2S
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero B-41 (terminal), B-3 (cover)
- Honda 070MZ-0020100 (terminal)
BC35-1S
3.5mm Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC35-1P
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC35-1P
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero B-42 (terminal), B-4 (cover)
- Honda 070MZ-0020200 (terminal, SKT1), 070MZ-0020300 (terminal, SKT2)
- JST KS-052534 (cover)
BC40-1P-A
4mm Bullet Plug kit
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC40-1S-A, 2x fit in BC40-2S, 3x fit in BC40-3S
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC40-1S-A, 2x fit in BC40-2S, 3x fit in BC40-3S
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero B-1 (terminal), B-66 (cover)
- KET ST750036-1, -2, ST750318-1, -2
- KUM MT041-01200
- TE 170002-4, -5 (loose: 170020-2, -3)
- Yazaki 7113-1020, 7113-1021
BC40-1P-B
4mm Sealed Bullet Plug kit
Kit Contents: 1 terminal and 1 sleeve
OEM P/N: 7120-8013
Mating Part: BC40-1S-B, BC40-1S-B2
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.
Kit Contents: 1 terminal and 1 sleeve
OEM P/N: 7120-8013
Mating Part: BC40-1S-B, BC40-1S-B2
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KET ST750036-1, -2, ST750318-1, -2
- KUM MT041-01200
- TE 170002-4, -5 (loose: 170020-2, -3)
- Yazaki 7113-1020, 7113-1021
BC40-1P-C
4mm Sealed Bullet Plug kit
Kit Contents: 1 terminal and 1 sleeve
OEM P/N: 7230-5873
Mating Part: BC40-1S-C
Waterproof with .5-1.25 mm² AV wire.
Kit Contents: 1 terminal and 1 sleeve
OEM P/N: 7230-5873
Mating Part: BC40-1S-C
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Honda 32825-SA5-300 (cover), 07692-0010100 (terminal)
BC40-1S-A
4mm Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC40-1P-A
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.
Kit Contents: 1 terminal and 1 insulator
Mating Part: BC40-1P-A
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero B-2 (terminal), B-67 (cover)
- JST KS-053534 (cover)
- KET ST730018-1, ST730343-2, ST730317-1, -2
- KUM MT045-01200
- Sumitomo 1800-2089
- TE 170003-4, -5 (loose 170021-2, -3)
- Yazaki 7115-1050
BC40-1S-B
4mm Sealed Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator
OEM P/N: 7120-1151
Mating Part: BC40-1P-B
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.
Kit Contents: 1 terminal and 1 insulator
OEM P/N: 7120-1151
Mating Part: BC40-1P-B
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KET ST730018-1, ST730343-2, ST730317-1, -2
- KUM MT045-01200
- Sumitomo 1800-2089
- TE 170003-4, -5 (loose 170021-2, -3)
- Yazaki 7115-1050
BC40-1S-B2
4mm Sealed Bullet Receptacle kit (Double wire type)
Kit Contents: 1 terminal and 1 insulator
OEM P/N: 7120-1152
Mating Part: BC40-1P-B
Waterproof with double .85 mm² AV wire, insulation of 2.4-2.7mm dia.
Kit Contents: 1 terminal and 1 insulator
OEM P/N: 7120-1152
Mating Part: BC40-1P-B
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KET ST730018-1, ST730343-2, ST730317-1, -2
- KUM MT045-01200
- Sumitomo 1800-2089
- TE 170003-4, -5 (loose 170021-2, -3)
- Yazaki 7115-1050
BC40-1S-C
4mm Sealed Bullet Receptacle kit
Kit Contents: 1 terminal and 1 insulator
OEM P/N: 7210-0011
Mating Part: BC40-1P-C
Waterproof with .5-1.25 mm² AV wire.
Kit Contents: 1 terminal and 1 insulator
OEM P/N: 7210-0011
Mating Part: BC40-1P-C
General
- Sealing:Matte Sealed
- Number of Ways:1
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Honda 32826-SA5-300 (cover), 07692-0010200 (terminal)
FM60-3S-2
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Federal Mogul
Series: 6.0 Centerline
OEM P/N: ZFJ-00703-UA
Keying: B
Mating Part: N/A, device only
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: OEM Federal Mogul
Series: 6.0 Centerline
OEM P/N: ZFJ-00703-UA
Keying: B
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPE/PA+GF10
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Ford 3S4T-14A464-DA
- Ford 3U2Z-14S411-FHAB, WPT-1167 (Silver plated terminals) pigtail connector
H4-3P
3-Way Plug Kit
Kit Contents: Housing, 3 pin contacts
Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: H4-3S-1
Kit Contents: Housing, 3 pin contacts
Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: H4-3S-1
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:7.8mm (.305)
- Wire Size:0.50 - 5.00 mm2
- Number of Rows:2
- Pitch:16.7mm
- Row Spacing:8.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:27A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- H4 type bulb
H4-3S-1
3-Way Receptacle Kit
Kit Contents: Housing, 3 socket contacts
Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: H4-3P
Kit Contents: Housing, 3 socket contacts
Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, Yazaki 305 Series - Terminal Lance
Mating Part: H4-3P
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:7.8mm (.305)
- Wire Size:0.85 - 5.00 mm2
- Number of Rows:2
- Pitch:16.9mm
- Row Spacing:8.8mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PPS
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:27A
Environmental
- Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- H4, 9003 type bulb
HB050-1S
1-Way Kit
Kit Contents: Housing, 1 socket contact
Mfr: OEM Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-2539
Blue: 6098-2538
Natural: 6098-2537
Part Name: HB050-1F-x
Mating Part: 6098-2534, 6098-2535, 6098-2536
Kit Contents: Housing, 1 socket contact
Mfr: OEM Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-2539
Blue: 6098-2538
Natural: 6098-2537
Part Name: HB050-1F-x
Mating Part: 6098-2534, 6098-2535, 6098-2536
General
- Sealing:Unsealed
- Number of Ways:1
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

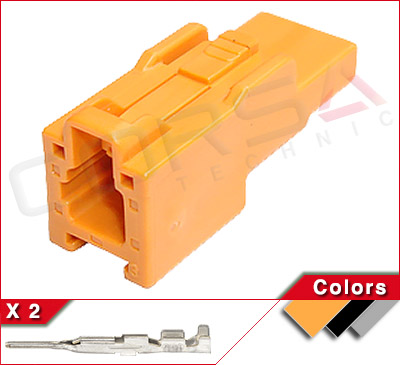

HB050-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts
Mfr: Aftermarket Sumitomo
Series: HB 050 Unsealed Series
OEM P/N: Orange: 6098-2541
Gray: 6098-2802
Black: 6098-2801
Blue: 6098-2542
Natural: 6098-2540
Part Name: HB050-2M-x
Mating Part: HB050-2S
Kit Contents: Housing, 2 pin contacts
Mfr: Aftermarket Sumitomo
Series: HB 050 Unsealed Series
OEM P/N: Orange: 6098-2541
Gray: 6098-2802
Black: 6098-2801
Blue: 6098-2542
Natural: 6098-2540
Part Name: HB050-2M-x
Mating Part: HB050-2S
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:3.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Turn signals on some Kawasaki motorcycles

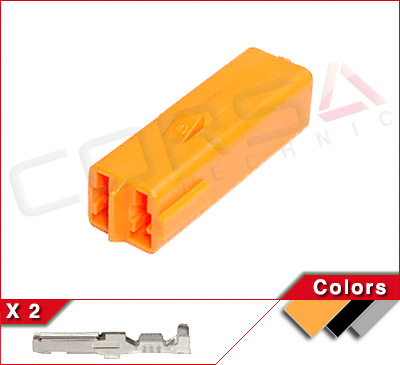

HB050-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: Aftermarket Sumitomo
Series: HB 050 Unsealed Series
OEM P/N: Orange: 6098-2544
Natural: 6098-2543
Blue: 6098-2545
Black: 6098-2803
Gray: 6098-3702
Part Name: HB050-2F-x
Mating Part: HB050-2P
Kit Contents: Housing, 2 socket contacts
Mfr: Aftermarket Sumitomo
Series: HB 050 Unsealed Series
OEM P/N: Orange: 6098-2544
Natural: 6098-2543
Blue: 6098-2545
Black: 6098-2803
Gray: 6098-3702
Part Name: HB050-2F-x
Mating Part: HB050-2P
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:3.6mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Turn signals on some Kawasaki motorcycles

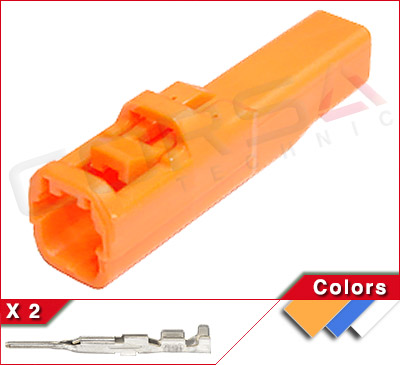

HC050-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts
Mfr: Aftermarket Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-3857
Blue: 6098-3856
Natural: 6098-3750
Gray: 6098-4432
Black: 6098-4433
Part Name: HC050-2M-x
Mating Part: HC050-2S
Kit Contents: Housing, 2 pin contacts
Mfr: Aftermarket Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-3857
Blue: 6098-3856
Natural: 6098-3750
Gray: 6098-4432
Black: 6098-4433
Part Name: HC050-2M-x
Mating Part: HC050-2S
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Turn signals on some Honda motorcycles

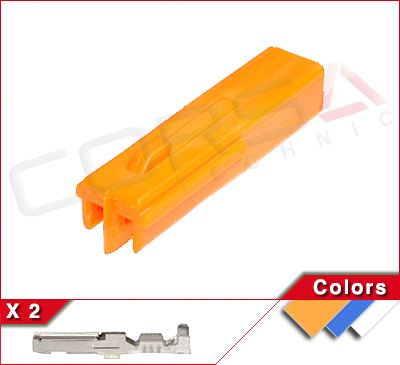

HC050-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: Aftermarket Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-3853
Blue: 6098-3852
Natural: 6098-3753
Gray: 6098-4436
Black: 6098-4437
Part Name: HC050-2F-x
Mating Part: HC050-2P
Kit Contents: Housing, 2 socket contacts
Mfr: Aftermarket Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Orange: 6098-3853
Blue: 6098-3852
Natural: 6098-3753
Gray: 6098-4436
Black: 6098-4437
Part Name: HC050-2F-x
Mating Part: HC050-2P
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Turn signals on some Honda motorcycles

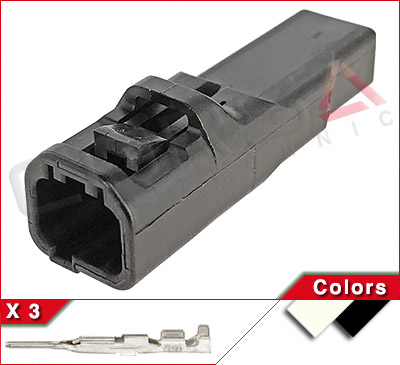

HC050-3P
3-Way Kit
Kit Contents: Housing, 3 pin contacts
Mfr: OEM Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Natural: 6098-3752
Blue: 6098-3858
Orange: 6098-3859
Gray: 6098-4434
Black: 6098-4435
Part Name: HC050-3M-x
Mating Part: HC050-3S
Kit Contents: Housing, 3 pin contacts
Mfr: OEM Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Natural: 6098-3752
Blue: 6098-3858
Orange: 6098-3859
Gray: 6098-4434
Black: 6098-4435
Part Name: HC050-3M-x
Mating Part: HC050-3S
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

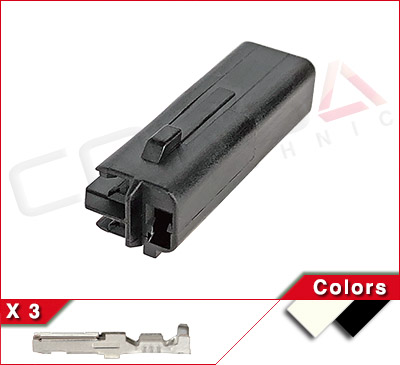

HC050-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts
Mfr: OEM Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Natural: 6098-3751
Blue: 6098-3854
Orange: 6098-3855
Gray: 6098-4438
Black: 6098-4439
Part Name: HC050-3F-x
Mating Part: HC050-3P
Kit Contents: Housing, 3 socket contacts
Mfr: OEM Sumitomo
Series: HC 050 Unsealed Series
OEM P/N: Natural: 6098-3751
Blue: 6098-3854
Orange: 6098-3855
Gray: 6098-4438
Black: 6098-4439
Part Name: HC050-3F-x
Mating Part: HC050-3P
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:1.3mm (.050)
- Wire Size:0.30 - 0.85 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

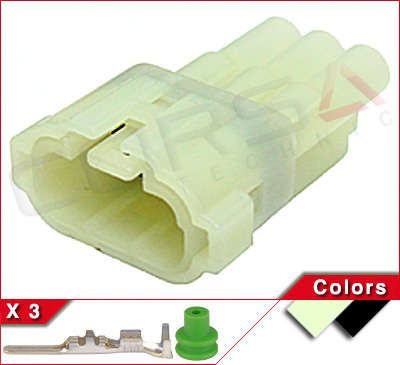

HM-3P
3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-3801
Mating Part: HM-3S
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6187-3801
Mating Part: HM-3S
Bottom of connector features a bracket mount
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Speed sensor on GSXR (harness side, black)
- Speed sensor on Hayabusa 99'-07' (harness side, black)
- Ducati Monster 09'-14' 696, 796, 1100S Brake light (light assy side, natural)
- Hero FRSH-108
- Honda 07VPZ-002060A
- KTM 000700000EY
- Suzuki 09900-28710-013 (Natural)

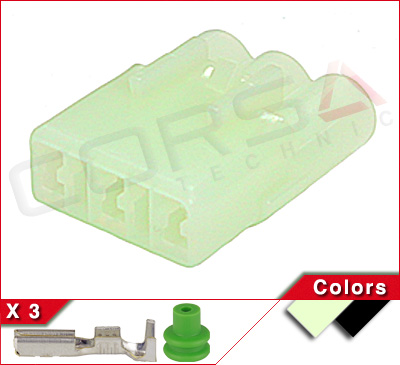

HM-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-3451
Part Name: HM090WP03F
Mating Part: HM-3P
Kit Contents: Housing, 3 socket contacts, 3 seals
Mfr: Aftermarket Sumitomo
Series: HM Sealed Series
OEM P/N: 6180-3451
Part Name: HM090WP03F
Mating Part: HM-3P
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Speed sensor on GSXR (sensor side, black)
- Speed sensor on Hayabusa 99'-07' (sensor side, black)
- Ducati Monster 09'-14' 696, 796, 1100S Brake light (harness side, natural)
- Hero FRSH-109
- Suzuki 09900-28710-014 (Natural)
HM110-2S-1
2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire, 2 seals, front TPA
Mfr: OEM Sumitomo
Series: HM 110 Sealed
OEM P/N: 6179-0001
Part Name: HW-CFL-02FAY-NA
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire, 2 seals, front TPA
Mfr: OEM Sumitomo
Series: HM 110 Sealed
OEM P/N: 6179-0001
Part Name: HW-CFL-02FAY-NA
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:24A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Honda 04321-SH3-306
HM110-2S-2
2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire, 2 seals, front TPA
Mfr: OEM Sumitomo
Series: HM 110 Sealed
OEM P/N: 6179-0002
Part Name: HW-CFL-02FAY-DL
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire, 2 seals, front TPA
Mfr: OEM Sumitomo
Series: HM 110 Sealed
OEM P/N: 6179-0002
Part Name: HW-CFL-02FAY-DL
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:24A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Honda 04321-SH3-305

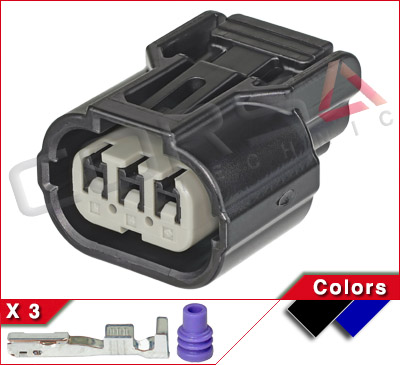

HX040-3S-1
3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: Black: 6189-0887
Dark Blue: 6189-0970
Part Name: HX4-DC3FAY2-B, HX4DCV3FAY-DL
Mating Part: HX040-3P-1
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Series
OEM P/N: Black: 6189-0887
Dark Blue: 6189-0970
Part Name: HX4-DC3FAY2-B, HX4DCV3FAY-DL
Mating Part: HX040-3P-1
-
3D STEP (6189-0887.zip) - See related terminal for crimp specs
-
Series Catalog (HX040-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.1mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- CBR 1000RR TPS, MAP (blue)
- GL1800 tail light (black)
- Acura, Honda K series MAP sensor
- KTM 000700000FT

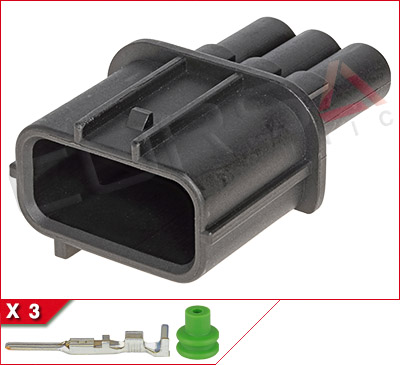

HX090-3P-1
3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 090 Sealed Series
Mating Part: HX090-3S-1
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 090 Sealed Series
Mating Part: HX090-3S-1
- See related terminal for crimp specs
-
Series Catalog (HX090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

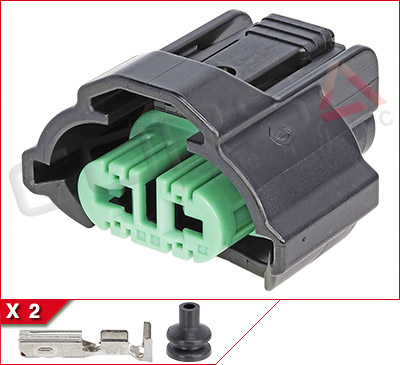

HX110-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire, 2 seals, front TPA
Mfr: OEM Sumitomo
Series: HX 110 Sealed
OEM P/N: 6189-0935
Part Name: HX11IEC2FAY-B
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire, 2 seals, front TPA
Mfr: OEM Sumitomo
Series: HX 110 Sealed
OEM P/N: 6189-0935
Part Name: HX11IEC2FAY-B
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:1
- Pitch:6.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:24A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- H8, H11 type bulb connector
- Honda 04321-TE0-305
- Toyota 82824-60460
HX110U-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire
Mfr: OEM Sumitomo
Series: HX 110 Sealed
OEM P/N: 6098-0543
Part Name: CF 110 2F2-DL
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts for 20-16 AWG wire
Mfr: OEM Sumitomo
Series: HX 110 Sealed
OEM P/N: 6098-0543
Part Name: CF 110 2F2-DL
Mating Part: N/A, device only
Note: Although this connector uses the HX110 sealed socket, this is an unsealed connector.
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:24A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

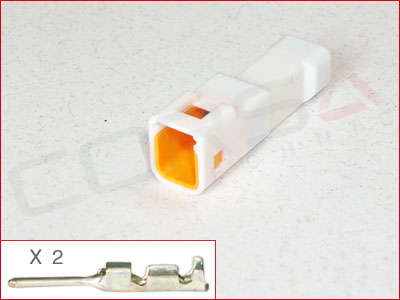

JWPF-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 02T-JWPF-VSLE-S
Mating Part: JWPF-2S
Kit Contents: Housing, 2 pin contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 02T-JWPF-VSLE-S
Mating Part: JWPF-2S
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.35 mm2
- Number of Rows:1
- Pitch:2.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-55 - 85 °C
- Protection Rating:IPX7
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Ducati and KTM turn signals, etc.
- KTM 000700000CX

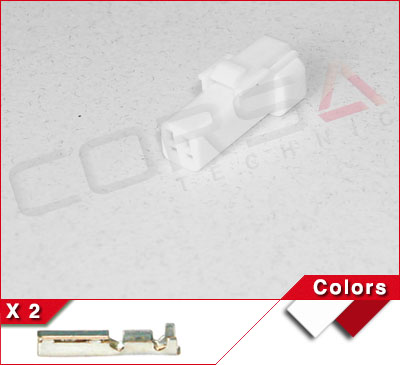

JWPF-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 02R-JWPF-VSLE-S (White)
02R-JWPF-VRLE-S (Red)
Mating Part: JWPF-2P
Kit Contents: Housing, 2 socket contacts for 26-22 AWG wire
Mfr: OEM JST
Series: JWPF Series
OEM P/N: 02R-JWPF-VSLE-S (White)
02R-JWPF-VRLE-S (Red)
Mating Part: JWPF-2P
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.35 mm2
- Number of Rows:1
- Pitch:2.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-55 - 85 °C
- Protection Rating:IPX7
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Various Ducati and KTM turn signals, etc
- KTM 000700000CW

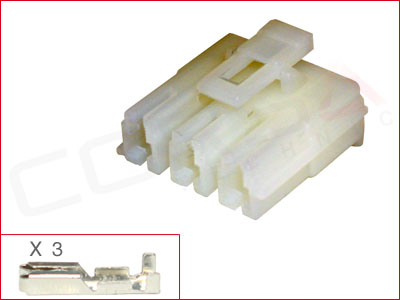

LPSCT-3S
3-Way Receptacle Kit
Kit Contents: Housing, 3x socket contacts for 20-16 AWG wire
Mfr: Aftermarket Sumitomo
Series: LPSCT Series
Part Name: LPSCT-3F
Kit Contents: Housing, 3x socket contacts for 20-16 AWG wire
Mfr: Aftermarket Sumitomo
Series: LPSCT Series
Part Name: LPSCT-3F
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:1.9mm (.075)
- Wire Size:0.50 - 1.25 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Certain Honda tail lights
MLC040-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174057-2, Black
Part Name: 040 MULTILOCK CAP 2P
Mating Part: MLC040-2S
Kit Contents: Housing, 2 pin contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174057-2, Black
Part Name: 040 MULTILOCK CAP 2P
Mating Part: MLC040-2S
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Turn signals on some Ducati models
- Harley Davidson 72902-01BK
- Ford 3U2Z-14S411-GUA, WPT-272 (Tin plated terminals) pigtail connector
MLC040-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174056-2, Black
Part Name: 040 MULTILOCK PLUG 2P
Mating Part: MLC040-2P
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Tyco/AMP
Series: Multilock 040 Series
OEM P/N: 174056-2, Black
Part Name: 040 MULTILOCK PLUG 2P
Mating Part: MLC040-2P
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Turn signals on some Ducati models
- Ford 3U2Z-14S411-PFB, WPT-1197 (Tin plated terminals, greased) pigtail connector
- Harley Davidson 72912-01BK
- Mopar 68080564AA repair kit connector

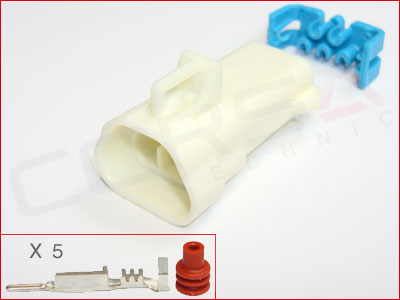

MP150-5P
5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12103974
Mating Part: MP150-5S
Kit Contents: Housing, 5 pin contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12103974
Mating Part: MP150-5S
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

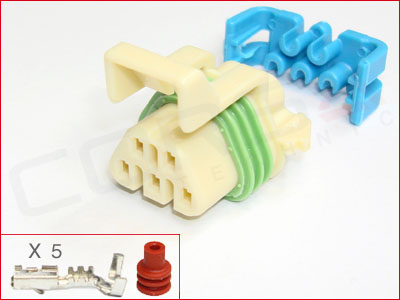

MP150-5S
5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12146045
Mating Part: MP150-5P
Kit Contents: Housing, 5 socket contacts, 5 seals, TPA lock
Mfr: OEM Delphi
Series: Metri-Pack 150 Sealed series
OEM P/N: 12146045
Mating Part: MP150-5P
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

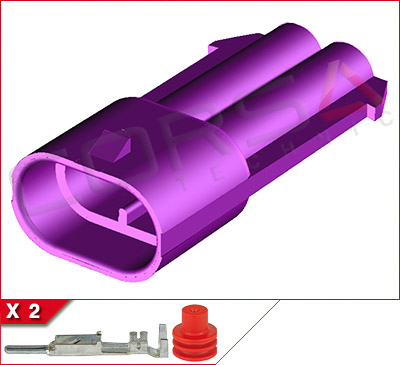

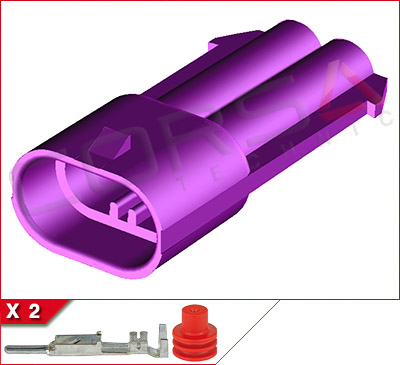

MP280-2P-3
2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12084166
Mating Part: MP280-2S-3
Kit Contents: Housing, 2 pin contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12084166
Mating Part: MP280-2S-3
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 5.00 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP280-2P-4
2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12084167
Mating Part: MP280-2S-4
Kit Contents: Housing, 2 pin contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12084167
Mating Part: MP280-2S-4
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 5.00 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Clip Slot
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

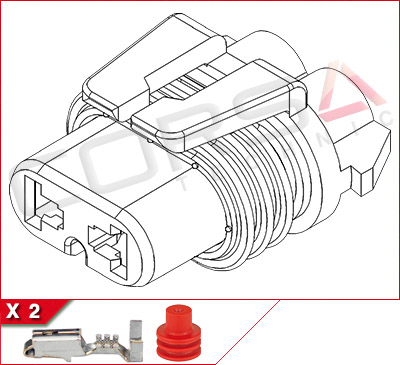

MP280-2S-3
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12059181
Mating Part: MP280-2P-3
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12059181
Mating Part: MP280-2P-3
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 5.00 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- 9006 type bulb connector
- Ford EU2Z-14S411-JA, WPT-1384 (Tin plated terminals) pigtail connector
- Mopar 05102409AA repair kit connector
MP280-2S-4
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12059183
Mating Part: MP280-2P-4
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA
Mfr: OEM Delphi
Series: Metri-Pack 280 series
OEM P/N: 12059183
Mating Part: MP280-2P-4
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 5.00 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- 9005 type bulb connector
- Ford 1U2Z-14S411-FC, WPT-1080 (Tin plated terminals) pigtail connector
- Mopar 05102410AA repair kit connector
MP280-3P-2
3-Way Kit
Kit Contents: Housing, 3 pin contacts for 18-16 awg wire
Mfr: Aftermarket Delphi
Series: Metri-Pack 280 series
Mating Part: 12048369, 12129377
Kit Contents: Housing, 3 pin contacts for 18-16 awg wire
Mfr: Aftermarket Delphi
Series: Metri-Pack 280 series
Mating Part: 12048369, 12129377
9004 bulb, GM p/n: 16504049, device connection. This is an aftermarket design created as a in-line connector in place of the device. It is unsealed, in contrast to the sealed connection typical of the complete OEM mating pair. There is no OEM device connector available.
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:7.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MTW-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6030-2981
Mating Part: MTW-2S
Kit Contents: Housing, 2 pin contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6030-2981
Mating Part: MTW-2S
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- CBR600 F4i, CBR600RR, CBR1100XX crank position sensor/ignition pulse generator (harness side, red)
- CBR600rr cam position sensor (harness side, clear)
- License plate light on certain Kawasaki motorcycles
- Hero B-97 (male half)
- KTM 000700000AK (Natural)
MTW-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6040-2111
Mating Part: MTW-2P
Kit Contents: Housing, 2 socket contacts
Mfr: Aftermarket Sumitomo
Series: MTW Series
OEM P/N: 6040-2111
Mating Part: MTW-2P
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- CBR600 F4i, CBR600RR, CBR1100XX crank position sensor/ignition pulse generator (sensor side, red)
- CBR600rr cam position sensor (sensor side, clear)
- License plate light on certain Kawasaki motorcycles
- Clutch switch on certain Suzuki motorcycles
- Hero B-97 (female half)
- KTM 000700000AH (Natural)
N38-3P
3-Way Kit
Kit Contents: Housing, 3x pin contacts
Mfr: OEM NT
Series: N38 Series
OEM P/N: N3810-9103 Black
N3810-9903 Grey
Mating Part: N38-3S
Kit Contents: Housing, 3x pin contacts
Mfr: OEM NT
Series: N38 Series
OEM P/N: N3810-9103 Black
N3810-9903 Grey
Mating Part: N38-3S
For .3-.5 mm2 (22-20 AWG) wire, with 1.6-2.0mm (.063-.079") insulation dia.
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:6A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-25 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
N38-3S
3-Way Kit
Kit Contents: Housing, 3x socket contacts
Mfr: OEM NT
Series: N38 Series
OEM P/N: N3820-9103 Black
N3820-9903 Grey
Mating Part: N38-3P
Kit Contents: Housing, 3x socket contacts
Mfr: OEM NT
Series: N38 Series
OEM P/N: N3820-9103 Black
N3820-9903 Grey
Mating Part: N38-3P
For .3-.5 mm2 (22-20 AWG) wire, with 1.4-1.8mm (.055-.071") insulation dia.
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:6A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-25 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

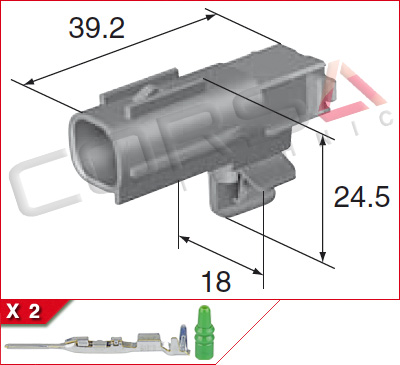

TS025-2P-1
2-Way Kit
Kit Contents: Housing, 2 pin contacts for 24-20 awg wire, 2 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4797
Mating Part: TS025-2S-1
Kit Contents: Housing, 2 pin contacts for 24-20 awg wire, 2 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4797
Mating Part: TS025-2S-1
Features integral clamp for oval hole (6x12mm), 0.7~2.2mm panel thickness.
-
3D STEP (6188-4797.zip)
-
Mfr Drawing (6188-4797.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS025-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Turn signals on some Yamaha motorcycles
- Toyota 90980-12627

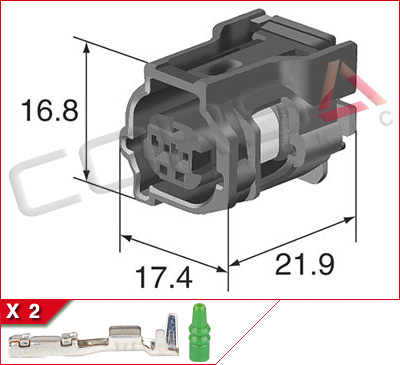

TS025-2S-1
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1161
Mating Part: TS025-2P-1
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1161
Mating Part: TS025-2P-1
-
3D STEP (6189-1161.zip)
-
Mfr Drawing (6189-1161.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS025-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Turn signals on some Yamaha motorcycles
- Toyota 90980-12416

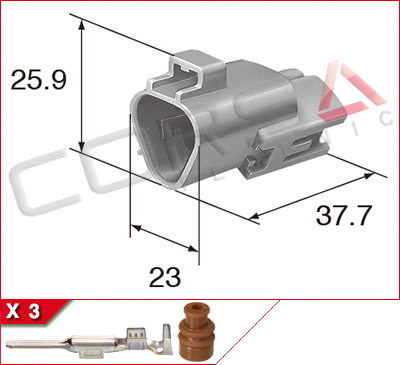

TS090-3P-1
3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6188-0099 (In stock)
Black: 6188-0112
Natural: 6188-0111
Dark gray: 6188-0113
Blue: 6188-0478
Part Name: 11015W9A03M-GR
Mating Part: TS090-3S-1
Kit Contents: Housing, 3 pin contacts, 3 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6188-0099 (In stock)
Black: 6188-0112
Natural: 6188-0111
Dark gray: 6188-0113
Blue: 6188-0478
Part Name: 11015W9A03M-GR
Mating Part: TS090-3S-1
-
3D STEP (6188-0099.zip)
-
Mfr Drawing (6188-0099.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:3
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:6.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-11015
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
