HX 090 Sealed Series

cat switch cat switch
1-Way Kit
HX090-1S
1-Way Kit
OEM P/N: 6189-0591
View Item
HX090-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0591
Mating Part: 6181-0803

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$3.52
6-19$3.34
20-49$3.17
50-99$2.99
100-249$2.82
250+$2.64
Quantity:  Kit

2-Way Kit
HX090-2P-3
2-Way Kit
View Item
HX090-2P-3  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 090 Sealed Series
Mating Part: HX090-2S-3

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • NH-1 Honda injector connector
  • Used on many Honda injectors; motorcycle and cars
  • Suzuki GSXR injector connector
QtyPrice (USD)
1-5$2.73
6-19$2.59
20-49$2.46
50-99$2.32
100+$2.18
Quantity:  Kit

2-Way Kit
HX090-2S-1
2-Way Kit
OEM P/N: 6189-0552
View Item
HX090-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: Aftermarket Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0552
Part Name: HX9-PCS2FAY-B1
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KTM 000700000DW
QtyPrice (USD)
1-5$3.77
6-19$3.58
20-49$3.39
50-99$3.20
100+$3.02
Quantity:  Kit

2-Way Kit

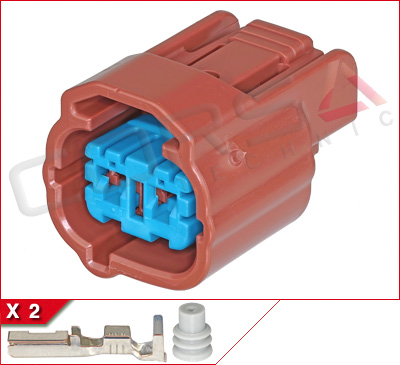

HX090-2S-2
2-Way Kit
OEM P/N: 6189-0593
View Item
HX090-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0593
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.42
6-19$4.20
20-49$3.98
50-99$3.76
100+$3.54
Quantity:  Kit

2-Way Kit
HX090-2S-3
2-Way Kit
OEM P/N: 6189-0553
View Item
HX090-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock

Mfr: Aftermarket Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0553
Mating Part: HX090-2P-3

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • NH-1 Honda injector connector
  • Used on many Honda injectors; motorcycle and cars
  • Suzuki GSXR injector connector
spacer
  • KTM 000700000CL
QtyPrice (USD)
1-5$3.56
6-19$3.38
20-49$3.20
50-99$3.03
100+$2.85
Quantity:  Kit

3-Way Kit
HX090-3P-1
3-Way Kit
View Item
HX090-3P-1  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 090 Sealed Series
Mating Part: HX090-3S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$2.64
6-19$2.46
20-49$2.24
50-99$2.11
100+$1.85
Quantity:  Kit

3-Way Kit

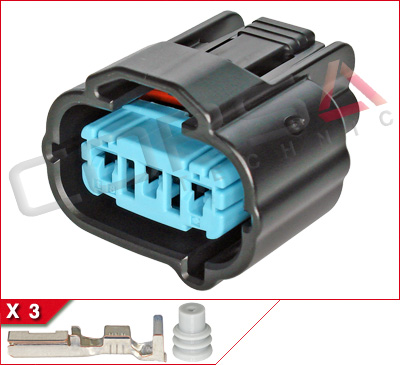

HX090-3S-1
3-Way Kit
OEM P/N: 6189-0596
View Item
HX090-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0596
Mating Part: HX090-3P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Some Kawasaki tail/brake lights
QtyPrice (USD)
1-5$4.27
6-19$4.06
20-49$3.84
50-99$3.63
100+$3.42
Quantity:  Kit

3-Way Kit

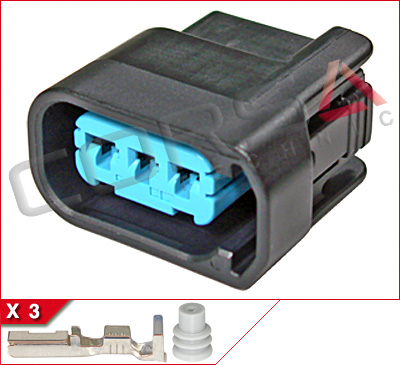

HX090-3S-2
3-Way Kit
OEM P/N: 6189-0728
View Item
HX090-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0728
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Honda K-series and F-series ignition pencil coils
QtyPrice (USD)
1-5$5.65
6-19$5.37
20-49$5.08
50-99$4.80
100-249$4.52
250+$4.24
Quantity:  Kit

3-Way Kit

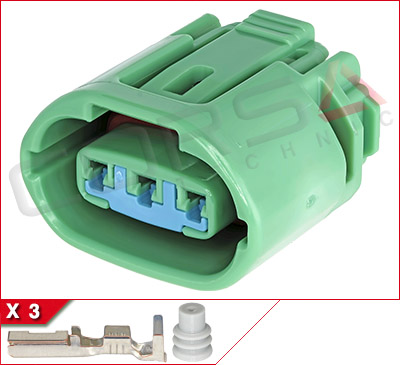

HX090-3S-5
3-Way Kit
OEM P/N: 6189-0544
View Item
HX090-3S-5  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0544
Part Name: HX9-ACG3FAY-G
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$7.52
6-19$7.14
20-49$6.77
50-99$6.39
100+$6.02
Quantity:  Kit

4-Way Kit
HX090-4S-3
4-Way Kit
OEM P/N: 6189-6887
View Item
HX090-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-6887
Part Name: HX9-F/P4FAY-DGR
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$5.48
6-19$5.21
20-49$4.93
50-99$4.66
100+$4.38
Quantity:  Kit

5-Way Kit
HX090-5S
5-Way Kit
OEM P/N: 6189-0618
View Item
HX090-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals, front lock

Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0618
Part Name: HX9-F/P5FAY-DGR
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:8.0mm
  • Row Spacing:10.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford 8U2Z-14S411-NA, WPT-909 (Tin plated terminals) pigtail connector
QtyPrice (USD)
1-5$6.73
6-19$6.39
20-49$6.06
50-99$5.72
100+$5.38
Quantity:  Kit

HX, DL, SL, TL Sealed Series pin contact
SUMI.B-PIN
HX, DL, SL, TL Sealed Series pin contact
View Item
SUMI.B-PIN  HX, DL, SL, TL Sealed Series pin contact

Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series

Wire SizeFinishP/N:
SUMI.B-PIN1.3-.5 mm2 (22-20 AWG)Tin8230-4472
-Gold1500-0159
SUMI.B-PIN2.75-.85 mm2 (18 AWG)Tin8230-4562
-Gold1500-0169
SUMI.B-PIN31.25-2.0 mm2 (16-14 AWG)Tin8230-4552
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500+$0.13
Quantity:  Ea

HX, DL, SL, TL Sealed Series Socket Contact
SUMI.B-SKT
HX, DL, SL, TL Sealed Series Socket Contact
View Item
SUMI.B-SKT  HX, DL, SL, TL Sealed Series Socket Contact

Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series

Wire SizeFinishP/N:
SUMI.B-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-1427 (alt p/n: 8240-4862)
-Gold8100-1458
SUMI.B-SKT2.75-.85 mm2 (18 AWG)Tin8100-1429 (alt p/n: 8240-4992)
-Gold8100-1460
SUMI.B-SKT31.25-2.0 mm2 (16-14 AWG)Tin8100-1428 (alt p/n: 8240-4952)
-Gold8100-1459
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea

DL HX SL TL Series Plug (P5 and 1.5mm)
SUMI-PG4
DL HX SL TL Series Plug (P5 and 1.5mm)
OEM P/N: 7165-0193
View Item
SUMI-PG4  DL HX SL TL Series Plug (P5 and 1.5mm)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HX 060 Sealed, HX 090 Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed
OEM P/N: 7165-0193
Part Name: P5/SI-G
Plug, green silicone
For 090 5mm pitch, and 1.5mm (060) housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice (USD)
1-99$0.25
100-499$0.24
500-999$0.23
1000-2499$0.22
2500-4999$0.21
5000+$0.20
Quantity:  Ea

HX090 Sealed Series Seals
SUMI-SL
HX090 Sealed Series Seals
View Item
SUMI-SL  HX090 Sealed Series Seals

Mfr: Sumitomo
Series: HX 090 Sealed Series

Wire Insulation Dia.ColorPart Number
SUMI-SL31.20-1.70 mm (.047-.067 in)Grey7165-0385
SUMI-SL71.70-2.40 mm (.067-.094 in)Green7165-0194
SUMI-SL82.10-2.90 mm (.083-.114 in)Yellow7165-0198
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice (USD)
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.20
500-999$0.18
1000-2499$0.17
2500-4999$0.16
5000+$0.15
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
TOOL-CDIE29
Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
OEM P/N: 624 1662 3 01 RT
View Item
TOOL-CDIE29  Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
Kit Contents: Crimp die set, locator

OEM P/N: 624 1662 3 01 RT

Compatibility
P/NWire SizePlatingSumitomo P/N
✗SUMI.B-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-1427 (alt p/n: 8240-4862)
Gold8100-1458
✗SUMI.B-SKT2.75-.85 mm2 (18 AWG)Tin8100-1429 (alt p/n: 8240-4992)
Gold8100-1460
✓SUMI.B-SKT31.25-2.0 mm2 (16-14 AWG)Tin8100-1428 (alt p/n: 8240-4952)
Gold8100-1459

1x - in stock.
Price: $402.25
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
