HM Unsealed Series

Products
2-Way Plug Kit
HMU-2P  2-Way Plug Kit

Contents: 1 plug, 2 pin contacts

Mating half of connector: HMU-2S
Sumitomo p/n: 6090-1031 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$1.30
6-19$1.21
20-49$1.10
50-99$1.04
100+$0.91
Select color
Pin/Wire size
Quantity:  Ea

2-Way Receptacle Kit
HMU-2S  2-Way Receptacle Kit

Contents: 1 receptacle, 2 socket contacts

Mating half of connector: HMU-2P
Sumitomo p/n: 6090-1001 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$1.30
6-19$1.21
20-49$1.10
50-99$1.04
100+$0.91
Select color
Socket/Wire size
Quantity:  Ea

3-Way Plug Kit
HMU-3P  3-Way Plug Kit

Contents: 1 plug, 3 pin contacts

Mating half of connector: HMU-3S
Sumitomo p/n: 6090-1131 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$1.58
6-19$1.50
20-49$1.42
50-99$1.34
100+$1.26
Select color
Pin/Wire size
Quantity:  Ea

3-Way Receptacle Kit
HMU-3S  3-Way Receptacle Kit

Contents: 1 receptacle, 3 socket contacts

Mating half of connector: HMU-3P
Sumitomo p/n: 6090-1136 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$1.39
6-19$1.32
20-49$1.25
50-99$1.18
100+$1.11
Select color
Socket/Wire size
Quantity:  Ea

4-Way Plug Kit
HMU-4P  4-Way Plug Kit

Contents: 1 plug, 4 pin contacts

Mating half of connector: HMU-4S
Sumitomo p/n: 6090-1041 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$1.79
6-19$1.66
20-49$1.52
50-99$1.43
100+$1.25
Select color
Pin/Wire size
Quantity:  Ea

4-Way Receptacle Kit
HMU-4S  4-Way Receptacle Kit

Contents: 1 receptacle, 4 socket contacts

Mating half of connector: HMU-4P
Sumitomo p/n: 6090-1011 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$1.71
6-19$1.59
20-49$1.45
50-99$1.37
100+$1.20
Select color
Socket/Wire size
Quantity:  Ea

6-Way Plug Kit
HMU-6P  6-Way Plug Kit

Contents: 1 plug, 6 pin contacts

Mating half of connector: HMU-6S
Sumitomo p/n: 6090-1149 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$2.30
6-19$2.14
20-49$1.95
50-99$1.84
100+$1.61
Select color
Pin/Wire size
Quantity:  Ea

6-Way Receptacle Kit
HMU-6S  6-Way Receptacle Kit

Contents: 1 receptacle, 6 socket contacts

Mating half of connector: HMU-6P
Sumitomo p/n: 6090-1218 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$2.30
6-19$2.14
20-49$1.95
50-99$1.84
100+$1.61
Select color
Socket/Wire size
Quantity:  Ea

8-Way Plug Kit
HMU-8P  8-Way Plug Kit

Contents: 1 plug, 8 pin contacts

Mating half of connector: HMU-8S
Sumitomo p/n: 6090-1051 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$2.80
6-19$2.60
20-49$2.38
50-99$2.24
100+$1.96
Select color
Pin/Wire size
Quantity:  Ea

8-Way Plug Kit with Clamp
HMU-8P-CLIP  8-Way Plug Kit with Clamp

Contents: 1 plug, 8 pin contacts

Mating half of connector: HMU-8S
Sumitomo p/n: 6090-1125 from HM Unsealed Series
Typical Application:
With clamp for attachment to 7mm dia. hole. Plate thickness range: 0.7-2.2mm


spacer
QtyPrice
1-5$3.13
6-19$2.91
20-49$2.66
50-99$2.50
100+$2.19
Pin/Wire size
Quantity:  Ea

8-Way Receptacle Kit
HMU-8S  8-Way Receptacle Kit

Contents: 1 receptacle, 8 socket contacts

Mating half of connector: HMU-8P or HMU-8P-CLIP
Sumitomo p/n: 6090-1021 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$2.80
6-19$2.60
20-49$2.38
50-99$2.24
100-499$1.96
500-999$1.82
1000-1999$1.68
2000+$1.54
Select color
Socket/Wire size
Quantity:  Ea

10-Way Plug Kit
HMU-10P  10-Way Plug Kit

Contents: 1 plug, 10 pin contacts

Mating half of connector: HMU-10S
Sumitomo p/n: 6090-1056 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$3.15
6-19$2.93
20-49$2.68
50-99$2.52
100+$2.21
Select color
Pin/Wire size
Quantity:  Ea

10-Way Receptacle Kit
HMU-10S  10-Way Receptacle Kit

Contents: 1 receptacle, 10 socket contacts

Mating half of connector: HMU-10P
Sumitomo p/n: 6090-1220 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$3.32
6-19$3.09
20-49$2.82
50-99$2.66
100-499$2.32
500+$2.16
Select color
Socket/Wire size
Quantity:  Ea

13-Way Plug Kit
HMU-13P  13-Way Plug Kit

Contents: 1 plug, 13 pin contacts

Mating half of connector: HMU-13S
Sumitomo p/n: 6090-1090 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$3.44
6-19$3.20
20-49$2.92
50-99$2.75
100+$2.41
Color
Pin/Wire size
Quantity:  Ea

13-Way Receptacle Kit
HMU-13S  13-Way Receptacle Kit

Contents: 1 receptacle, 13 socket contacts

Mating half of connector: HMU-13P
Sumitomo p/n: 6090-1061 from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$4.24
6-19$3.94
20-49$3.60
50-99$3.39
100+$2.97
Color
Socket/Wire size
Quantity:  Ea

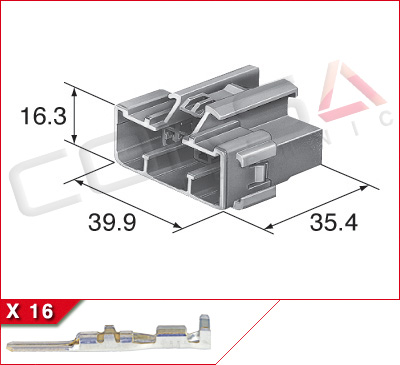

16-Way Plug Kit
HMU-16P  16-Way Plug Kit

Contents: 1 plug, 16 pin contacts

Mating half of connector: HMU-16S
Sumitomo p/n: 6090-1099 (natural color) from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$3.66
6-19$3.40
20-49$3.11
50-99$2.93
100+$2.56
Pin/Wire size
Quantity:  Ea

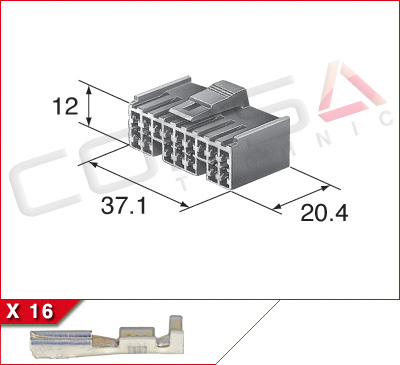

16-Way Receptacle Kit
HMU-16S  16-Way Receptacle Kit

Contents: 1 receptacle, 16 socket contacts

Mating half of connector: HMU-16P
Sumitomo p/n: 6090-1071 (natural color) from HM Unsealed Series
Typical Application:


spacer
QtyPrice
1-5$3.51
6-19$3.26
20-49$2.98
50-99$2.81
100+$2.46
Socket/Wire size
Quantity:  Ea

DS, HD, HM, MT 090 Unsealed Series Pin Contact
SUMI.090U.A-PIN  DS, HD, HM, MT 090 Unsealed Series Pin Contact

Mfg: Aftermarket Sumitomo, Yazaki
Family:
Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, MT Unsealed Interlocking
Yazaki: 090 Unsealed
SUMI.090U.A-PIN1 for .3-.5 mm2 (22-20 AWG) wire, Sumitomo p/n: 8230-4272 (gold plated p/n: 8230-4419), Yazaki p/n: 7114-1170 (gold plated p/n: 7114-1170-08)
SUMI.090U.A-PIN2 for .5-1.25 mm2 (20-16 AWG) wire, Sumitomo p/n: 8230-4282, Yazaki p/n: 7114-1171 (gold plated p/n: 7114-1171-08)
SUMI.090U.A-PIN3 for 2.0 mm2 (14 AWG) wire, Sumitomo p/n: 8230-4392

Cross-reference:
-Terminal used in Toyota 82998-12160, 82998-24050 (Gold plated) repair wire


spacer
QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500-999$0.06
1000+$0.05
Pin/Wire size
Quantity:  Ea

DS, HD, HM, MT 090 Unsealed Series Socket Contact
SUMI.090U.A-SKT  DS, HD, HM, MT 090 Unsealed Series Socket Contact

Previously item: HD090-SKT, HMU-SKT
Mfg: Aftermarket Sumitomo, Yazaki
Family:
Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, MT Unsealed Interlocking
Yazaki: 090 Unsealed
SUMI.090U.A-SKT1 for .3-.5 mm2 (22-20 AWG) wire, Sumitomo p/n: 8240-4412 (gold plated p/n: 8240-4849), Yazaki p/n: 7116-1180 (gold plated p/n: 7116-1180-08)
SUMI.090U.A-SKT2 for .5-1.25 mm2 (20-16 AWG) wire, Sumitomo p/n: 8240-4422, Yazaki p/n: 7116-1181 (gold plated p/n: 7116-1181-08)
SUMI.090U.A-SKT3 for 2.0 mm2 (14 AWG) wire, Sumitomo p/n: 8240-4652

Cross-reference:
-Terminal used in Toyota 82998-12170 repair wire


spacer
QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500-999$0.06
1000+$0.05
Socket/Wire size
Quantity:  Ea
