TL Sealed Series

NEW ITEM! TL-4S
4-Way Kit
OEM P/N: 6189-7188

View Item

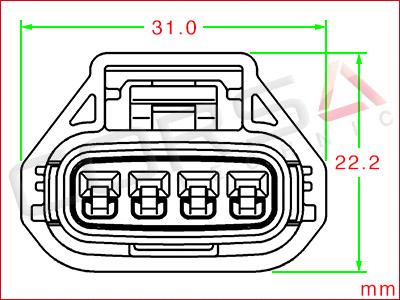

NEW ITEM! TL-4S 4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TL Sealed
OEM P/N: 6189-7188
Part Name: WTL2.3-4FAY-B
Mating Part: N/A, device only

General

Sealing:Single Wire Sealed
Number of Ways:4
Contact Size:2.3mm (.090)
Wire Size:0.30 - 2.00 mm²
Number of Rows:1
Pitch:5.0mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Seal Material:Silicone Rubber
Mounting Style:Free hanging
TPA:No
CPA:No

Electrical

Current Rating^[1]:22A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

HX, DL, SL, TL Sealed Series Socket Contact

SUMI.B-SKT
HX, DL, SL, TL Sealed Series Socket Contact

View Item

SUMI.B-SKT HX, DL, SL, TL Sealed Series Socket Contact

Mfr: Sumitomo
Series: HX 090, DL 090, SL 090, and TL 090 sealed series

	Wire Size	Finish	P/N:
SUMI.B-SKT1	.3-.5 mm² (22-20 AWG)	Tin	8100-1427 (alt p/n: 8240-4862)
-	.3-.5 mm² (22-20 AWG)	Gold	8100-1458
SUMI.B-SKT2	.75-.85 mm² (18 AWG)	Tin	8100-1429 (alt p/n: 8240-4992)
-	.75-.85 mm² (18 AWG)	Gold	8100-1460
SUMI.B-SKT3	1.25-2.0 mm² (16-14 AWG)	Tin	8100-1428 (alt p/n: 8240-4952)
-	1.25-2.0 mm² (16-14 AWG)	Gold	8100-1459
Available stock: Aftermarket OEM

General

Sealing:Single Wire Sealed
Contact Size:2.3mm (.090)
Wire Size:0.30 - 2.00 mm²

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance

Electrical

Current Rating^[1]:22A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

SUMI-PG1
DL HW MT SL TL TS Series Plug (P5)
OEM P/N: 7161-9787

View Item

SUMI-PG1 DL HW MT SL TL TS Series Plug (P5)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HW Sealed, MT Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed, TS 090 Sealed
OEM P/N: 7161-9787
Part Name: SEAL DMY P5-BR

090 P5 plug, brown rubber
For 5mm pitch housings

General

Sealing:Single Wire Sealed

Mechanical

Seal Material:NBR

Toyota 90980-09229

SUMI-PG4
DL HX SL TL Series Plug (P5 and 1.5mm)
OEM P/N: 7165-0193

View Item

SUMI-PG4 DL HX SL TL Series Plug (P5 and 1.5mm)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HX 060 Sealed, HX 090 Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed
OEM P/N: 7165-0193
Part Name: P5/SI-G

Plug, green silicone
For 090 5mm pitch, and 1.5mm (060) housings

Series Catalog (HX060-CAT_4-2024.pdf)

General

Sealing:Single Wire Sealed

Mechanical

Seal Material:Silicone Rubber

SUMI-SL
SL 060, SL 090, TL Sealed Series Seals

View Item

SUMI-SL SL 060, SL 090, TL Sealed Series Seals

Mfr: Sumitomo
Series: SL 060 Sealed, SL 090 Sealed, TL Sealed

	Wire Insulation Dia.	Color	Part Number
SUMI-SL9	1.4-1.6 mm (.055-.063 in)	Black	7165-0516
SUMI-SL10	1.6-2.4 mm (.063-.094 in)	Grey	7165-0515
SUMI-SL11	2.4-2.7 mm (.094-.106 in)	Dark Green	7165-0514
Available stock: Aftermarket OEM

Series Catalog (SL060-CAT_4-2024.pdf)

General

Sealing:Single Wire Sealed

Mechanical

Seal Material:Silicone Rubber

TOOL-CDIE29
Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
OEM P/N: 624 1662 3 01 RT

View Item

TOOL-CDIE29 Rennsteig PEW 12 Die Set for Sumitomo 2.3mm (090) sealed socket terminal
Kit Contents: Crimp die set, locator

OEM P/N: 624 1662 3 01 RT

Compatibility
	P/N	Wire Size	Plating	Sumitomo P/N
✗	SUMI.B-SKT1	.3-.5 mm² (22-20 AWG)	Tin	8100-1427 (alt p/n: 8240-4862)
✗	SUMI.B-SKT1	.3-.5 mm² (22-20 AWG)	Gold	8100-1458
✗	SUMI.B-SKT2	.75-.85 mm² (18 AWG)	Tin	8100-1429 (alt p/n: 8240-4992)
✗	SUMI.B-SKT2	.75-.85 mm² (18 AWG)	Gold	8100-1460
✓	SUMI.B-SKT3	1.25-2.0 mm² (16-14 AWG)	Tin	8100-1428 (alt p/n: 8240-4952)
✓	SUMI.B-SKT3	1.25-2.0 mm² (16-14 AWG)	Gold	8100-1459

1x - in stock.
