Home ▹ Connectors ▹ By Manufacturer ▹ Sumitomo ▹ TS 025 Sealed Series

TS 025 Sealed Series

2-Way Kit
TS025-2P-1
2-Way Kit
OEM P/N: 6188-4797
View Item
TS025-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts for 24-20 awg wire, 2 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4797
Mating Part: TS025-2S-1
Features integral clamp for oval hole (6x12mm), 0.7~2.2mm panel thickness.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Turn signals on some Yamaha motorcycles
spacer
  • Toyota 90980-12627
QtyPrice (USD)
1-5$2.30
6-19$2.18
20-49$2.07
50-99$1.95
100+$1.84
Quantity:  Kit

2-Way Kit
TS025-2S-1
2-Way Kit
OEM P/N: 6189-1161
View Item
TS025-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1161
Mating Part: TS025-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Turn signals on some Yamaha motorcycles
spacer
  • Toyota 90980-12416
QtyPrice (USD)
1-5$2.37
6-19$2.25
20-49$2.13
50-99$2.01
100+$1.90
Quantity:  Kit

3-Way Kit
TS025-3P
3-Way Kit
OEM P/N: 6188-4920
View Item
TS025-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts for 24-20 awg wire, 3 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4920
Part Name: 12719WQA03M-B
Mating Part: TS025-3S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12719, (90980-12179 is a typo)
QtyPrice (USD)
1-5$3.54
6-19$3.36
20-49$3.19
50-99$3.01
100+$2.83
Quantity:  Kit

3-Way Kit
TS025-3S
3-Way Kit
OEM P/N: 6189-1129
View Item
TS025-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1129
Mating Part: TS025-3P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12353
QtyPrice (USD)
1-5$2.66
6-19$2.53
20-49$2.39
50-99$2.26
100+$2.13
Quantity:  Kit

4-Way Kit
TS025-4S-1
4-Way Kit
OEM P/N: 6189-6948
View Item
TS025-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, front lock

Mfr: Aftermarket Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-6948
Part Name: H2W025-4FAY-B
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • IAC valve on many Honda motorcycle and power-sport vehicles
QtyPrice (USD)
1-5$3.24
6-19$3.08
20-49$2.92
50-99$2.75
100+$2.59
Quantity:  Kit

4-Way Kit
TS025-4S-2
4-Way Kit
OEM P/N: 6189-7401
View Item
TS025-4S-2  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-7401
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12A85
QtyPrice (USD)
1-5$6.27
6-19$5.96
20-49$5.64
50-99$5.33
100+$5.02
Quantity:  Kit

4-Way Kit
TS025-4S-3
4-Way Kit
OEM P/N: Gray: 6189-1231
Black: 6189-6946 (IN STOCK)
View Item
TS025-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: Gray: 6189-1231
Black: 6189-6946 (IN STOCK)
Part Name: 12495WQA04F
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12495
QtyPrice (USD)
1-5$4.37
6-19$4.15
20-49$3.93
50-99$3.71
100+$3.50
Quantity:  Kit

5-Way Kit
TS025-5P
5-Way Kit
View Item
TS025-5P  5-Way Kit
Kit Contents: Housing, 5 pin contacts for 24-20 awg wire, 5 seals

Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: TS 025 Sealed Series
Mating Part: TS025-5S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.03
6-19$3.83
20-49$3.63
50-99$3.43
100+$3.22
Quantity:  Kit

5-Way Kit
TS025-5S
5-Way Kit
OEM P/N: 6189-1046
View Item
TS025-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1046
Part Name: 12292WQA5F-B
Mating Part: TS025-5P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12292
QtyPrice (USD)
1-5$4.17
6-19$3.96
20-49$3.75
50-99$3.54
100+$3.34
Quantity:  Kit

6-Way Kit
TS025-6P-1
6-Way Kit
OEM P/N: 6188-0706 Natural (In stock) 6188-4966 Black
View Item
TS025-6P-1  6-Way Kit
Kit Contents: Housing, 6 pin contacts for 24-20 awg wire, 6 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-0706 Natural (In stock) 6188-4966 Black
Part Name: 12381WQA06M-NA
Mating Part: TS025-6S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:3
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12381
QtyPrice (USD)
1-5$4.62
6-19$4.39
20-49$4.16
50-99$3.93
100+$3.70
Quantity:  Kit

6-Way Kit

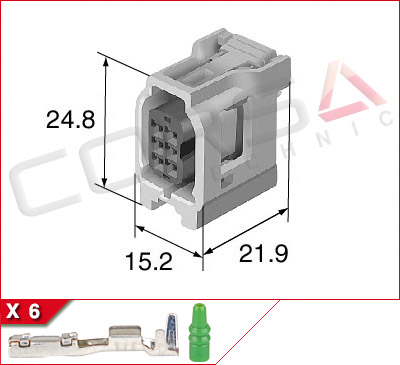

TS025-6S-1
6-Way Kit
OEM P/N: 6189-1142
View Item
TS025-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1142
Part Name: 12382WQA06F-NA
Mating Part: TS025-6P-1
Natural (white): 6189-1142 (in stock)
Black: 6189-7042

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:3
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12382
QtyPrice (USD)
1-5$4.24
6-19$4.03
20-49$3.82
50-99$3.60
100+$3.39
Quantity:  Kit

6-Way Kit

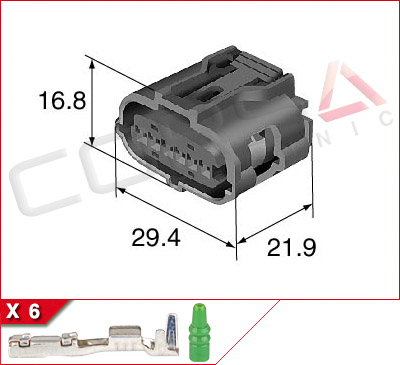

TS025-6S-2
6-Way Kit
OEM P/N: 6189-1083
View Item
TS025-6S-2  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1083
Part Name: 12303WQA06F-B
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:1
  • Pitch:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Nissan/Bosch J-48817-1154 pigtail connector
  • Toyota 90980-12303
QtyPrice (USD)
1-5$3.84
6-19$3.65
20-49$3.46
50-99$3.26
100+$3.07
Quantity:  Kit

8-Way Kit
TS025-8P
8-Way Kit
OEM P/N: 6188-0779
View Item
TS025-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts for 24-20 awg wire, 8 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-0779
Part Name: 12519WQA08M-GR
Mating Part: TS025-8S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12519
QtyPrice (USD)
1-5$3.43
6-19$3.26
20-49$3.09
50-99$2.92
100+$2.74
Quantity:  Kit

8-Way Kit
TS025-8S
8-Way Kit
OEM P/N: 6189-1240
View Item
TS025-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1240
Part Name: 12520WQA08F-GR
Mating Part: TS025-8P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12520
  • Ford DU2Z-14S411-TA, WPT-1349 (Tin plated terminals, greased) pigtail connector
QtyPrice (USD)
1-5$3.79
6-19$3.60
20-49$3.41
50-99$3.22
100+$3.03
Quantity:  Kit

10-Way Kit
TS025-10P
10-Way Kit
OEM P/N: 6188-0696
View Item
TS025-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts for 24-20 awg wire, 10 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-0696
Part Name: 12379WQA10M-B
Mating Part: TS025-10S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12379
QtyPrice (USD)
1-5$3.83
6-19$3.64
20-49$3.45
50-99$3.26
100+$3.06
Quantity:  Kit

10-Way Kit
TS025-10S
10-Way Kit
OEM P/N: 6189-1134
View Item
TS025-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1134
Part Name: 12380WQA10F-B
Mating Part: TS025-10P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12380
QtyPrice (USD)
1-5$4.13
6-19$3.92
20-49$3.72
50-99$3.51
100+$3.30
Quantity:  Kit

12-Way Kit
TS025-12S-2
12-Way Kit
OEM P/N: 6189-1133
View Item
TS025-12S-2  12-Way Kit
Kit Contents: Housing, 12 socket contacts, 12 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1133
Part Name: 12357WQA12F-GR
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:12
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12357
QtyPrice (USD)
1-5$5.86
6-19$5.57
20-49$5.27
50-99$4.98
100+$4.69
Quantity:  Kit

13-Way Kit
TS025-13P
13-Way Kit
OEM P/N: 6188-4914
View Item
TS025-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts for 24-20 awg wire, 13 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6188-4914
Part Name: 12716WQA13M-GR
Mating Part: TS025-13S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:13
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12716
QtyPrice (USD)
1-5$6.17
6-19$5.86
20-49$5.55
50-99$5.24
100+$4.94
Quantity:  Kit

13-Way Kit
TS025-13S
13-Way Kit
OEM P/N: 6189-1092
View Item
TS025-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts, 13 seals

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series
OEM P/N: 6189-1092
Part Name: 12326WQA13F-GR
Mating Part: TS025-13P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:13
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Toyota 90980-12326
QtyPrice (USD)
1-5$5.98
6-19$5.68
20-49$5.38
50-99$5.08
100+$4.78
Quantity:  Kit

TS 025 Sealed Series Pin Contact
TS025-PIN
TS 025 Sealed Series Pin Contact
OEM P/N: 8100-3617 tin in-stock (alt pn 8100-3708, gold plated)
View Item
TS025-PIN  TS 025 Sealed Series Pin Contact

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series, Yazaki 0.64mm Sealed Series
OEM P/N: 8100-3617 tin in-stock (alt pn 8100-3708, gold plated)
For .22-.5 mm2 (24-20 AWG) wire

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.22 - 0.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Terminal used in Toyota 82998-24360, 82998-24370 (Gold plated) repair wire
QtyPrice (USD)
1-49$0.13
50-99$0.12
100-249$0.11
250-499$0.10
500-999$0.09
1000-4999$0.08
5000+$0.07
Quantity:  Ea

TS 025 Sealed Series Socket Contact
TS025-SKT
TS 025 Sealed Series Socket Contact
View Item
TS025-SKT  TS 025 Sealed Series Socket Contact

Mfr: Sumitomo
Series: TS 025 Sealed Series, Yazaki 0.64mm Sealed Series

Wire SizePlatingPart Number
TS025-SKT1.13 mm2 (26 AWG)Tin8240-0336
-Gold8240-0337
TS025-SKT2.22-.35 mm2 (24-22 AWG)Tin8100-3455
-Gold8100-3456
TS025-SKT3.5 mm2 (20 AWG)Tin8240-0287
-Gold8240-0288
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Terminal used in Toyota 82998-24250, 82998-24260 (Gold plated) repair wire
QtyPrice (USD)
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500+$0.10
Quantity:  Ea

TS 025 Sealed Series Plug
TS025-PG
TS 025 Sealed Series Plug
OEM P/N: 7165-0797
View Item
TS025-PG  TS 025 Sealed Series Plug

Mfr: OEM Sumitomo
Series: TS 025 Sealed Series, ISO 19689 OBDII, Yazaki 0.64mm Sealed Series
OEM P/N: 7165-0797
Part Name: 09871PLGQD-GR

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:0.64mm (.025)
Mechanical
  • Seal Material:NBR

spacer
  • Toyota 90980-09871
  • Yazaki 7158-3043-40
QtyPrice (USD)
1-99$0.11
100-249$0.10
250-499$0.09
500-999$0.08
1000+$0.07
Quantity:  Ea

TS 025 Sealed Series Seals
TS025-SL
TS 025 Sealed Series Seals
View Item
TS025-SL  TS 025 Sealed Series Seals

Mfr: Sumitomo
Series: TS 025 Sealed Series, ISO 19689 OBDII, Yazaki 0.64mm Sealed Series

Wire Insulation Dia.ColorPart Number
TS025-SL10.85-0.95 mm (.033-.037 in)Light Brown7165-1423
TS025-SL20.95-1.05 mm (.037-.041 in)Green7165-1043
TS025-SL31.1-1.4 mm (.043-.055 in)Violet7165-1312
TS025-SL41.4-1.5 mm (.055-.059 in)Dark Yellow7165-1198
TS025-SL51.6-1.7 mm (.063-.067 in)Red Violet7165-1199
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:0.64mm (.025)
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice (USD)
1-49$0.11
50-99$0.10
100-249$0.09
250-499$0.08
500+$0.07
Quantity:  Ea

Connector Clamp
CLIP-104
Connector Clamp
OEM P/N: 82711-1E360
View Item
CLIP-104  Connector Clamp

Mfr: OEM D.A. Inc.
Series: 090II Sealed, TS 025 Sealed, TS 090 Sealed, TS 187 Unsealed, Yazaki 0.64mm Sealed Series
OEM P/N: 82711-1E360
For 7x12 mm hole with 3 mm max. thickness.
For added harness support tab, see CLIP-110

spacer
  • Delphi 15324967
  • Toyota 82711-1E360
  • Yazaki 7147-8749
QtyPrice (USD)
1-5$0.51
6-19$0.48
20-49$0.47
50-99$0.46
100-249$0.45
250-499$0.43
500-999$0.42
1000-2499$0.41
2500-4999$0.39
5000+$0.38
Quantity:  Ea

Connector Clamp With Harness Tape Tab
CLIP-110
Connector Clamp With Harness Tape Tab
OEM P/N: 0499-0173
View Item
CLIP-110  Connector Clamp With Harness Tape Tab

Mfr: OEM D.A. Inc.
Series: 090II Sealed, TS 025 Sealed, TS 090 Sealed, TS 187 Unsealed, Yazaki 0.64mm Sealed Series
OEM P/N: 0499-0173
Similar to CLIP-104, but with a harness support tape tab.

QtyPrice (USD)
1-5$0.51
6-19$0.48
20-49$0.46
50-99$0.43
100+$0.41
Quantity:  Ea

Removal Tool
TOOL-IRT12
Removal Tool
OEM P/N: 680-99042
View Item
TOOL-IRT12  Removal Tool

OEM P/N: 680-99042
Flat pointed tip removal tool.
Tyco Superseal Econoseal 150, MCP 1.5, ML 0.70
Molex NSCC 1.5 / 0.7 mm
Sumitomo TS025 socket terminals
JST JWPF, JWPS series

spacer

Price: $30.90
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo TS 025 sealed terminals
TOOL-CDIE19
Rennsteig PEW 12 Die Set for Sumitomo TS 025 sealed terminals
OEM P/N: 624 1693 3 012 RT
View Item
TOOL-CDIE19  Rennsteig PEW 12 Die Set for Sumitomo TS 025 sealed terminals
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1693 3 012 RT

Compatibility
P/NWire SizePlatingSumitomo P/N
✓TS025-PIN.22-.5 mm2 (24-22 AWG)Tin8100-3617
✓TS025-SKT1.13 mm2 (26 AWG)Tin8240-0336
Gold8240-0337
✓TS025-SKT2.22-.35 mm2 (24-22 AWG)Tin8100-3455
Gold8100-3456
✓TS025-SKT3.5 mm2 (20 AWG)Tin8240-0287
Gold8240-0288

This item is backordered.
Price: $312.16
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
