TS 090 Sealed Series

TS090-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0445
Part Name: 11428W9A1F-GR
Mating Part: N/A

spacer
spacer
  • Toyota 90980-11428
QtyPrice
1-5$3.79
6-19$3.60
20-49$3.41
50-99$3.22
100+$3.03
Quantity:  Kit

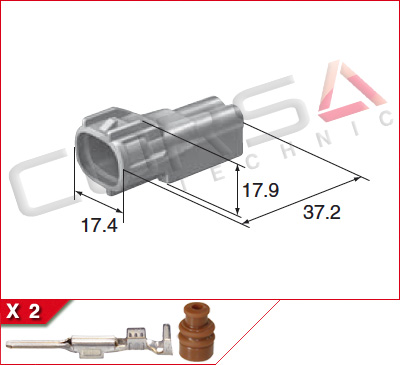

TS090-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0266 Gray (In stock)
6188-0138 Black

Part Name: 11155W9A02M
Mating Part: TS090-2S-1

spacer
spacer
  • Toyota 90980-11155
QtyPrice
1-5$2.97
6-19$2.82
20-49$2.67
50-99$2.52
100+$2.38
Quantity:  Kit

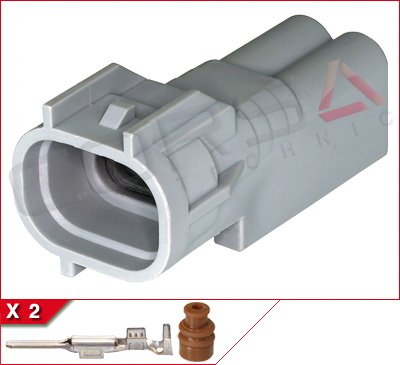

TS090-2P-2  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: Aftermarket Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0624
Mating Part: TS090-2S-2, compatible with DL090-2S-5

spacer
spacer
QtyPrice
1-5$2.94
6-19$2.79
20-49$2.65
50-99$2.50
100-249$2.35
250-499$2.21
500+$2.06
Quantity:  Kit

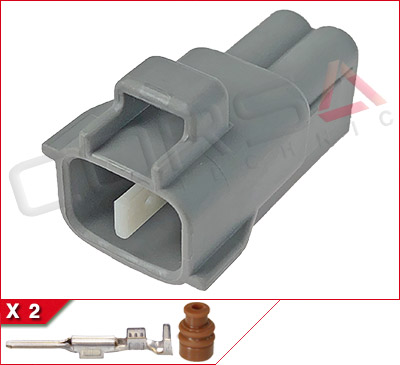

TS090-2P-4  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0294
Part Name: 11486W9A02M-GR
Mating Part: TS090-2S-4

spacer
spacer
  • Toyota 90980-11486
QtyPrice
1-5$3.66
6-19$3.48
20-49$3.29
50-99$3.11
100+$2.93
Quantity:  Kit

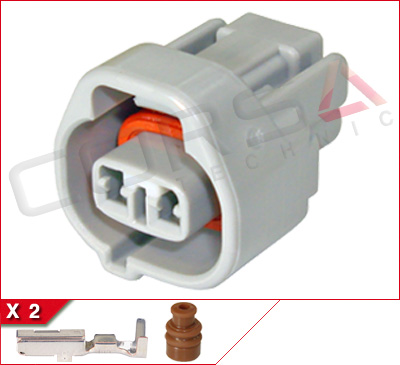

TS090-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0249
Part Name: 11156W9A02FGR
Mating Part: TS090-2P-1

spacer
spacer
  • Ford 6U2Z-14S411-DA, WPT-869 (Black body, Tin plated terminals) pigtail connector
  • Nissan/Bosch J-48817-111 (dark gray), J-48817-188 (blue) pigtail connector
  • Toyota 90980-11156 (gray), 90980-12634
QtyPrice
1-5$3.59
6-19$3.34
20-49$3.05
50-99$2.87
100+$2.51
Quantity:  Kit

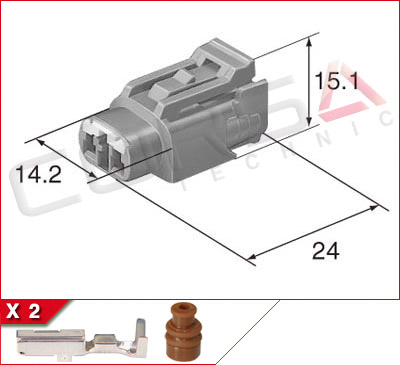

NEW ITEM! TS090-2S-11  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0388
Part Name: 11286W9A02F-GR
Mating Part: 6188-0229

spacer
spacer
  • Toyota 90980-11286
QtyPrice
1-5$3.85
6-19$3.66
20-49$3.46
50-99$3.27
100+$3.08
Quantity:  Kit

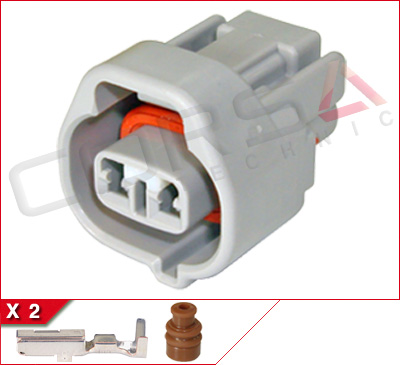

TS090-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0264
Part Name: 11149W9A02FGR
Mating Part: TS090-2P-2

spacer
spacer
  • Nissan/Bosch J-48817-112 pigtail connector
  • Toyota 90980-11149
QtyPrice
1-5$4.28
6-19$4.07
20-49$3.85
50-99$3.64
100+$3.42
Quantity:  Kit

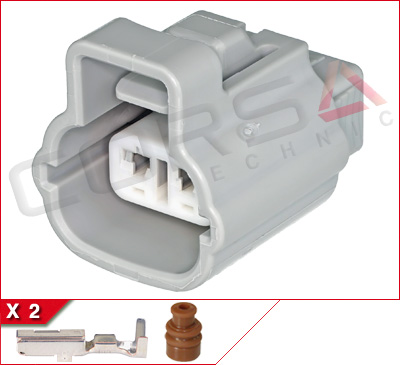

TS090-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0100
Part Name: WTS090-AY2F-GR
Mating Part: 6188-0047

spacer
spacer
  • Toyota 90980-10843
QtyPrice
1-5$4.29
6-19$4.08
20-49$3.86
50-99$3.65
100+$3.43
Quantity:  Kit

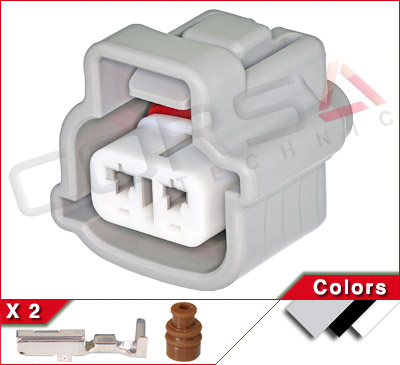

TS090-2S-4  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0175
Part Name: 11019W9A02F-GR
Mating Part: TS090-2P-4

spacer
spacer
  • Toyota 90980-11019
  • Ford BU2Z-14S411-KA, WPT-1156 (Tin plated terminals) pigtail connector
QtyPrice
1-5$3.38
6-19$3.21
20-49$3.04
50-99$2.87
100+$2.70
Quantity:  Kit

TS090-2S-6  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0573 gray
6189-0572 brown

Part Name: 11153W9A02F
Mating Part: N/A

spacer
spacer
  • Toyota 90980-11153
QtyPrice
1-5$3.83
6-19$3.64
20-49$3.45
50-99$3.26
100+$3.06
Quantity:  Kit

TS090-2S-7  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0566
Mating Part: N/A

spacer
spacer
  • Toyota 90980-11154
QtyPrice
1-5$4.27
6-19$4.06
20-49$3.84
50-99$3.63
100+$3.42
Quantity:  Kit

TS090-2S-8  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0611
Part Name: 11875W9A02F-GR
Mating Part: N/A

spacer
spacer
  • Toyota 90980-11875
QtyPrice
1-5$2.81
6-19$2.61
20-49$2.39
50-99$2.25
100+$1.97
Quantity:  Kit

TS090-3P-1  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0099
Part Name: 11015W9A03M-GR
Mating Part: TS090-3S-1

spacer
spacer
  • Toyota 90980-11015
QtyPrice
1-5$4.10
6-19$3.89
20-49$3.69
50-99$3.48
100+$3.28
Quantity:  Kit

TS090-3P-3Z  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: Aftermarket Sumitomo
Series: TS 090 Sealed Series
Mating Part: Universal keying, mates with TS090-3S-2, TS090-3S-3, TS090-3S-4

spacer
spacer
QtyPrice
1-5$2.91
6-19$2.76
20-49$2.62
50-99$2.47
100-249$2.33
250-499$2.18
500+$2.04
Quantity:  Kit

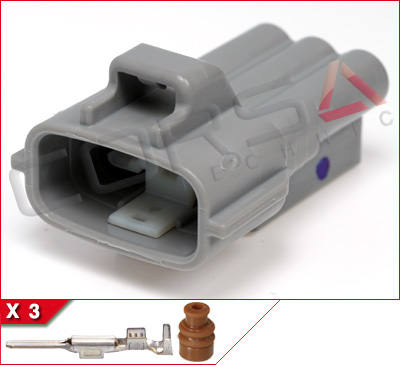

TS090-3P-6  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0328
Part Name: 11607W9A03M-GR
Mating Part: TS090-3S-6

spacer
spacer
  • Toyota 90980-11607
QtyPrice
1-5$5.64
6-19$5.36
20-49$5.08
50-99$4.79
100+$4.51
Quantity:  Kit

TS090-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0179
Part Name: 11016W9A03F-GR
Mating Part: TS090-3P-1

spacer
spacer
  • Nissan/Bosch J-48817-165 (dark gray), J-48817-196 (gray) pigtail connector
  • Toyota 90980-11016
QtyPrice
1-5$4.79
6-19$4.55
20-49$4.31
50-99$4.07
100-249$3.83
250+$3.59
Quantity:  Kit

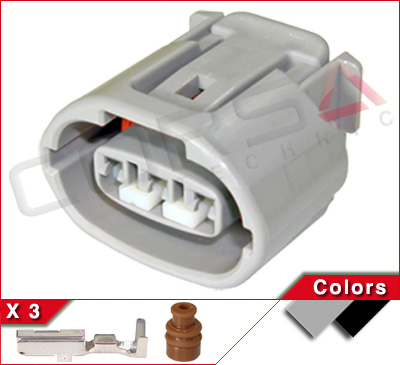

TS090-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0443 (gray), 6189-0442 (black)
Part Name: 11349W9A03
Mating Part: TS090-3P-3Z (Universal keying)

spacer
spacer
  • Nissan/Bosch J-48817-109 pigtail connector
  • Toyota 90980-11349 (Black and Gray)
QtyPrice
1-5$4.14
6-19$3.93
20-49$3.73
50-99$3.52
100-249$3.31
250-499$3.10
500+$2.90
Quantity:  Kit

TS090-3S-3  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0099
Mating Part: TS090-3P-3Z (Universal keying)

spacer
  • Various Mikuni TPS
  • Suzuki motorcycles with TPS p/n: 13550-13D60
  • -GSX-R600 97-00
  • -GSX-R750 96-99
  • -Bandit (GSF1200/S/Z) 01-05
  • -Katana (GSX600F/GSX750F) 98-06
  • -SV1000/SV1000S 03-07
  • -GS500F 04-09
  • -SV650 03-07
  • -V-Strom (DL650) 04-06
  • Yamaha motorcycles with TPS p/n: 4HD-85885-00-00 (supersedes 4SV-85885-00-00)
  • And TPS p/n: 2D1-85885-00-00 (supersedes 5FL-85885-00-00, 5FL-85885-01-00, 5FL-85885-02-00)
  • -YZF-R1 98-01, 04-06
  • -YZF1000 97-98
  • -FZ1 07-14
  • -FZS1 2015
  • -FZ6 04-09
  • -FZ6R 09-17
  • -YZF-R7 99
  • -SRX700 00-02
  • -SX Viper 02-06
  • -Venture 700 2004
spacer
  • KTM 000700000BZ
  • Toyota 90980-10845, 90980-12636
QtyPrice
1-5$3.57
6-19$3.39
20-49$3.21
50-99$3.03
100+$2.86
Quantity:  Kit

TS090-3S-4  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6248-5336 (Natural)
6248-5317 (Light gray)
6248-5316 (Black)

Part Name: 11143W9A03F
Mating Part: TS090-3P-3Z (Universal keying)

spacer
spacer
  • Toyota 90980-11143
QtyPrice
1-5$3.52
6-19$3.34
20-49$3.17
50-99$2.99
100-249$2.82
250-499$2.64
500+$2.46
Quantity:  Kit

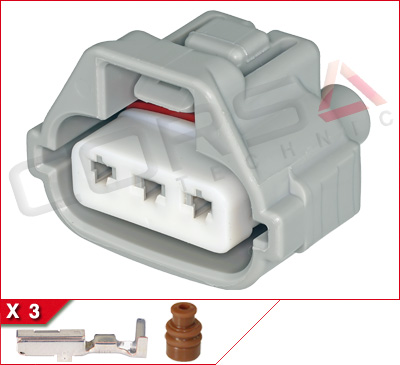

TS090-3S-6  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0177
Part Name: 11020W9A03F-GR
Mating Part: TS090-3P-6

spacer
spacer
  • Nissan/Bosch J-48817-110, J-48817-125 pigtail connector
  • Toyota 90980-11020
QtyPrice
1-5$4.22
6-19$4.01
20-49$3.80
50-99$3.59
100+$3.38
Quantity:  Kit

TS090-3S-7  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0486
Part Name: 11451W9A03F-GR
Mating Part: N/A, Device only

spacer
spacer
  • Ford CU2Z-14S411-PA, WPT-1281 (Tin plated greased terminals) pigtail connector
  • KTM 000700000EC
  • Toyota 90980-11451
QtyPrice
1-5$4.67
6-19$4.44
20-49$4.20
50-99$3.97
100+$3.74
Quantity:  Kit

TS090-4P-2  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0517
Mating Part: TS090-4S-2

spacer
spacer
  • Toyota 90980-11027
QtyPrice
1-5$4.23
6-19$4.02
20-49$3.81
50-99$3.60
100+$3.38
Quantity:  Kit

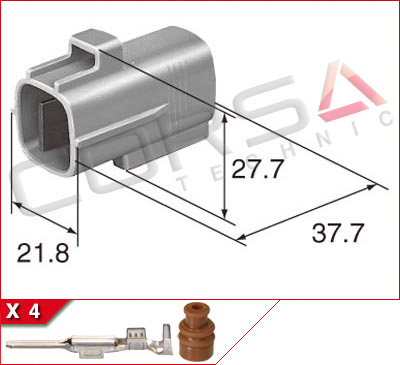

TS090-4P-4  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0066
Part Name: WP090AY4M-GR
Mating Part: TS090-4S-4

spacer
spacer
  • Toyota 90980-10941
QtyPrice
1-5$5.11
6-19$4.85
20-49$4.60
50-99$4.34
100+$4.09
Quantity:  Kit

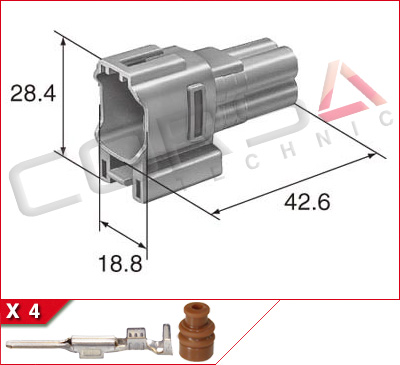

TS090-4P-5  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0141
Part Name: 11122W9A04M-GR
Mating Part: TS090-4S-5

spacer
spacer
  • Toyota 90980-11122
QtyPrice
1-5$4.79
6-19$4.55
20-49$4.31
50-99$4.07
100+$3.83
Quantity:  Kit

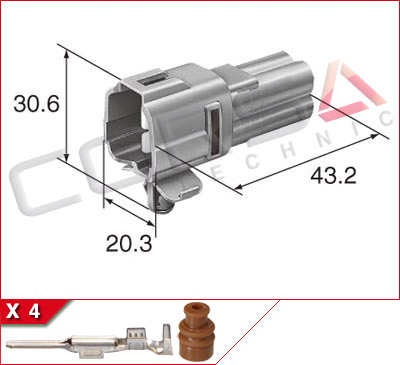

TS090-4P-6  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0217
Part Name: 11291W9A04M-GR
Mating Part: TS090-4S-6
Features integral clamp for 7mm dia., 0.7~2.2mm thickness hole.

spacer
spacer
  • Toyota 90980-11291
QtyPrice
1-5$5.21
6-19$4.95
20-49$4.69
50-99$4.43
100+$4.17
Quantity:  Kit

TS090-4S-1  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0694
Mating Part: N/A

spacer
spacer
  • Toyota 90980-11964
QtyPrice
1-5$3.76
6-19$3.57
20-49$3.38
50-99$3.20
100+$3.01
Quantity:  Kit

TS090-4S-2  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Black: 6189-0581
Gray: 6189-0629

Part Name: 11028W9A04F
Mating Part: TS090-4P-2

spacer
spacer
  • Toyota 90980-11028
QtyPrice
1-5$4.13
6-19$3.92
20-49$3.72
50-99$3.51
100+$3.30
Quantity:  Kit

TS090-4S-3  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: Aftermarket Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0565 (Yazaki: 7283-1440-30)

spacer
  • Toyota/Lexus 2JZGE distributor
  • Lexus Accelerator Pedal Position Sensor
spacer
  • Toyota 90980-11150, 90980-12057
QtyPrice
1-5$3.86
6-19$3.67
20-49$3.47
50-99$3.28
100+$3.09
Quantity:  Kit

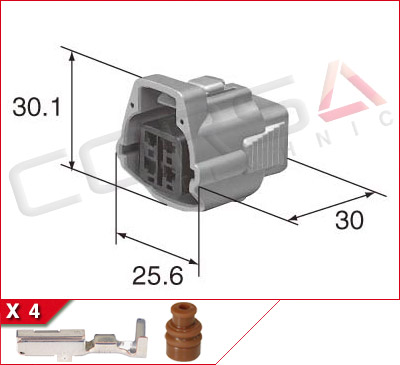

TS090-4S-4  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0126
Part Name: WP090AY4F-GR
Mating Part: TS090-4P-4

spacer
spacer
  • Toyota 90980-10942
This item is backordered.
QtyPrice
1-5$4.12
6-19$3.91
20-49$3.71
50-99$3.50
100+$3.30
Quantity:  Kit

TS090-4S-5  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0381
Mating Part: TS090-4P-5

spacer
spacer
  • Toyota 90980-11037
QtyPrice
1-5$4.47
6-19$4.25
20-49$4.02
50-99$3.80
100+$3.58
Quantity:  Kit

TS090-4S-6  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0372
Part Name: 11292W9A04F-GR
Mating Part: TS090-4P-6

spacer
spacer
  • Toyota 90980-11292
QtyPrice
1-5$4.48
6-19$4.26
20-49$4.03
50-99$3.81
100+$3.58
Quantity:  Kit

TS090-5P  5-Way Kit
Kit Contents: Housing, 5 pin contacts, 5 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0327
Part Name: 11598W9A05M-GR
Mating Part: TS090-5S

spacer
spacer
  • Toyota 90980-11598
QtyPrice
1-5$4.92
6-19$4.67
20-49$4.43
50-99$4.18
100+$3.94
Quantity:  Kit

TS090-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0504
Part Name: 11599W9A05F-GR
Mating Part: TS090-5P

spacer
spacer
  • Toyota 90980-11599
QtyPrice
1-5$4.90
6-19$4.66
20-49$4.41
50-99$4.17
100+$3.92
Quantity:  Kit

TS090-6P-1  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0173 Gray
6188-0174 Black

Part Name: 11196W9A06M
Mating Part: TS090-6S-1

spacer
spacer
  • Toyota 90980-11196
QtyPrice
1-5$5.47
6-19$5.20
20-49$4.92
50-99$4.65
100+$4.38
Quantity:  Kit

TS090-6P-3  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6188-0175
Part Name: 11193W9A06M-GR
Mating Part: TS090-6S-3

spacer
spacer
  • Toyota 90980-11193
QtyPrice
1-5$4.39
6-19$4.17
20-49$3.95
50-99$3.73
100+$3.51
Quantity:  Kit

TS090-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0319
Part Name: 11197W9A06F-GR
Mating Part: TS090-6P-1

spacer
spacer
  • Toyota 90980-11197
QtyPrice
1-5$4.24
6-19$4.03
20-49$3.82
50-99$3.60
100-249$3.39
250+$3.18
Quantity:  Kit

TS090-6S-3  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0323
Mating Part: TS090-6P-3

spacer
spacer
  • Toyota 90980-11194, 90980-11663 (gray)
  • Toyota 90980-12635 (white)
QtyPrice
1-5$4.74
6-19$4.50
20-49$4.27
50-99$4.03
100+$3.79
Quantity:  Kit

TS090-8S-1  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals

Mfr: Aftermarket Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0501
Mating Part: N/A, device only

spacer
spacer
  • Toyota 90980-11592
QtyPrice
1-5$8.74
6-19$8.30
20-49$7.87
50-99$7.43
100+$6.99
Quantity:  Kit

TS090-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals

Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: 6189-0515
Part Name: 11653W9A10F-B
Mating Part: N/A, device only

spacer
spacer
  • Toyota 90980-11653
Price: $11.60
Quantity:  Kit

TS090-PIN  TS 090 Sealed Series Pin Contact

Mfr: Sumitomo
Series: TS 090 Sealed Series

Wire SizePlatingPart Number
TS090-PIN1.3-.5 mm2 (22-20 AWG)Tin8100-0457
-Gold8100-1340
TS090-PIN2.5-1.25 mm2 (20-16 AWG)Tin8100-0458
-Gold8100-1007
TS090-PIN32.0 mm2 (14 AWG)Tin8100-0459
-Gold8100-1008
Available stock: Aftermarket OEM

spacer
spacer
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000-2499$0.15
2500-4999$0.14
5000+$0.13
Quantity:  Ea

TS090-SKT  TS 090 Sealed Series Socket Contact

Mfr: Sumitomo
Series: TS 090 Sealed Series

Wire SizePlatingPart Number
TS090-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-0460
-Gold8100-1344
TS090-SKT2.5-1.25 mm2 (20-16 AWG)Tin8100-0461
-Gold8100-0594
TS090-SKT32.0 mm2 (14 AWG)Tin8100-0462
-Gold8100-0817
Available stock: Aftermarket OEM

spacer
spacer
  • Cross-compatible with Yazaki 090II Sealed Series Socket
  • Nissan/Bosch J-48817-207, J-48817-208 repair wire terminal
  • Toyota 82998-12440, 82998-12590, 82998-12790, 82998-12800 repair wire terminal (Tin plated)
  • Toyota 82998-12460, 82998-12780 repair wire terminal (Gold plated)
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.14
2500-4999$0.13
5000+$0.12
Quantity:  Ea

SUMI-PG1  HW MT DL SL TL TS Series Plug (P5)

Mfr: OEM Sumitomo
Series: HW Sealed, MT Sealed, DL 090 Sealed, TS 090 Sealed
OEM P/N: 7161-9787
Part Name: SEAL DMY P5-BR
090 P5 plug, brown rubber
For 5mm pitch housings

spacer
spacer
QtyPrice
1-49$0.16
50-99$0.14
100-249$0.13
250-499$0.12
500-999$0.11
1000-2499$0.10
2500-4999$0.08
5000+$0.06
Quantity:  Ea

SUMI-PG2  MT HM TS Series Plug (P6)

Mfr: OEM Sumitomo
Series: MT Sealed, HM Sealed, TS 090 Sealed
OEM P/N: 7160-9465
090 P6 plug, black rubber
For 6mm pitch housings

spacer
spacer
  • Honda 07VPZ-003030A
QtyPrice
1-49$0.12
50-99$0.11
100-249$0.10
250-499$0.09
500-999$0.08
1000-2499$0.07
2500-4999$0.06
5000+$0.05
Quantity:  Ea

TS090-SL  TS 090 Sealed Series Seals, P5 Pitch

Mfr: Sumitomo
Series: TS 090 Sealed Series
For 5mm pitch connectors

Wire Insulation Dia.ColorPart Number
TS090-SL51.4-2.0 mm (.055-.078 in)Red-Brown7165-0342
TS090-SL62.0-2.5 mm (.078-.098 in)Black7165-0343
TS090-SL72.5-2.9 mm (.098-.114 in)Dark Blue7165-0344
Available stock: Aftermarket OEM

spacer
spacer
QtyPrice
1-49$0.22
50-99$0.21
100-249$0.20
250-499$0.18
500+$0.15
Quantity:  Ea

TS090-SL  TS 090 Sealed Series Seals, P6 Pitch

Mfr: Sumitomo
Series: TS 090 Sealed Series
For 6mm pitch connectors

Wire Insulation Dia.ColorPart Number
TS090-SL11.1-1.4 mm (.043-.055 in)Blue7165-0842
TS090-SL21.4-2.0 mm (.055-.079 in)Brown7165-0349
TS090-SL32.0-2.5 mm (.079-.098 in)Dark green7165-0395
TS090-SL42.5-2.9 mm (.098-.114 in)Gray7165-0351
Available stock: Aftermarket OEM

spacer
spacer
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500-4999$0.14
5000+$0.13
Quantity:  Ea

CLIP-104  Connector Clamp

Mfr: OEM D.A. Inc.
Series: 090II Sealed, TS 025 Sealed, TS 090 Sealed, TS 187 Unsealed
OEM P/N: 82711-1E360
For 7x12 mm hole with 3 mm max. thickness.
For added harness support tab, see CLIP-110

spacer
spacer
  • Delphi 15324967
  • Toyota 82711-1E360
  • Yazaki 7147-8749
QtyPrice
1-5$0.51
6-19$0.48
20-49$0.46
50-99$0.43
100+$0.41
Quantity:  Ea

CLIP-110  Connector Clamp With Harness Tape Tab

Mfr: OEM D.A. Inc.
Series: 090II Sealed, TS 025 Sealed, TS 090 Sealed, TS 187 Unsealed
OEM P/N: 0499-0173
Similar to CLIP-104, but with a harness support tape tab.

spacer
spacer
QtyPrice
1-5$0.51
6-19$0.48
20-49$0.46
50-99$0.43
100+$0.41
Quantity:  Ea

TOOL-CDIE16  Rennsteig PEW 12 Die Set for Sumitomo TS090, Yazaki 090II sealed terminals
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1673 3 012 RT

Compatibility
P/NWire SizePlatingSumitomo P/NYazaki P/N
TS090-PIN1
090II-PIN1
.3-.5 mm2 (22-20 AWG)Tin8100-04577114-4025
Gold8100-13407114-4028-08
TS090-PIN2
090II-PIN2
.5-1.25 mm2 (20-16 AWG)
090II-PIN2 for .85-1.25 mm2
Tin8100-04587114-4026
Gold8100-10077114-4029-08
TS090-PIN3
090II-PIN3
2.0 mm2 (14 AWG)Tin8100-04597114-4027
Gold8100-1008-
TS090-SKT1
090II-SKT1
.3-.5 mm2 (22-20 AWG)Tin8100-04607116-4025
Gold8100-13447116-4028-08
TS090-SKT2
090II-SKT2
.5-1.25 mm2 (20-16 AWG)
090II-SKT2 for .85-1.25 mm2
Tin8100-04617116-4026
Gold8100-05947116-4029-08
TS090-SKT3
090II-SKT3
2.0 mm2 (14 AWG)Tin8100-04627116-4027
Gold8100-0817-

spacer
spacer
Restock ETA: 10/31
This item is backordered.
Price: $308.64
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2021 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
