DL 040 Sealed Series

3-Way Kit
DL040-3S
3-Way Kit
OEM P/N: 6189-0734 (superseded by: 6189-8156)
View Item

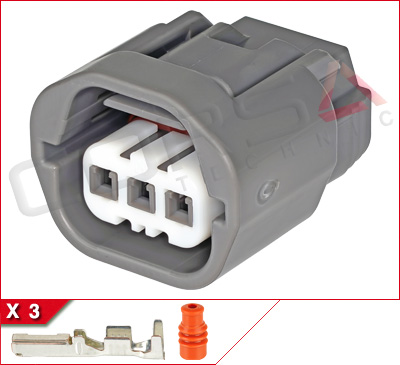

DL040-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0734 (superseded by: 6189-8156)
Part Name: W-04CISASY3F-GR (ss by: W-04CISASY3F2-GR)

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.1mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$3.47
6-19$3.30
20-49$3.12
50-99$2.95
100+$2.78
Quantity:  Kit

4-Way Kit
DL040-4S
4-Way Kit
OEM P/N: 6189-0551
View Item
DL040-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0551
Part Name: W-DL04-4FAY-DGR

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.3mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6T
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.05
6-19$3.85
20-49$3.64
50-99$3.44
100+$3.24
Quantity:  Kit

20-Way Kit
DL040-20P
20-Way Kit
OEM P/N: 6188-0494
View Item

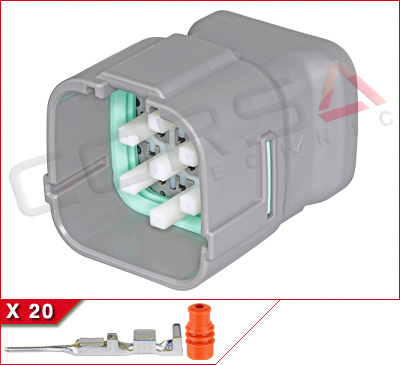

DL040-20P  20-Way Kit
Kit Contents: Housing, 20 pin contacts (for 18-16 awg, DL040-SKT2), 20 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6188-0494
Part Name: W-DL04AY20M-LGR
Mating Part: DL040-20S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:5
  • Pitch:4.3mm
  • Row Spacing:4.45mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$11.49
6-19$10.92
20-49$10.34
50-99$9.77
100+$9.19
Quantity:  Kit

20-Way Kit
DL040-20S
20-Way Kit
OEM P/N: 6189-0714
View Item

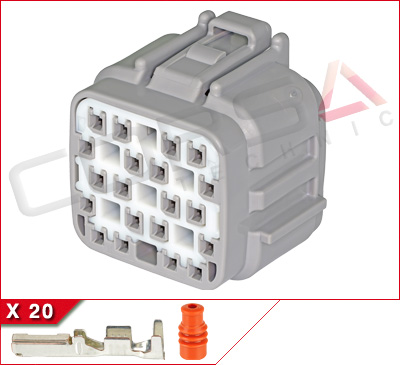

DL040-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts, 20 seals

Mfr: OEM Sumitomo
Series: DL 040 Sealed Series
OEM P/N: 6189-0714
Part Name: W-DL04AY20F-LGR
Mating Part: DL040-20P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:20
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:5
  • Pitch:4.3mm
  • Row Spacing:4.45mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$8.89
6-19$8.45
20-49$8.00
50-99$7.56
100+$7.11
Quantity:  Kit

DL 040 Sealed Series Pin Contact
DL040-PIN
DL 040 Sealed Series Pin Contact
View Item
DL040-PIN  DL 040 Sealed Series Pin Contact

Mfr: Sumitomo
Series: DL 040 Sealed Series

Wire SizePlatingPart Number
DL040-PIN1.3-.5 mm2 (22-20 AWG)Tin8100-2566
-Gold8100-2616
DL040-PIN2.75-1.25 mm2 (18-16 AWG)Tin8100-2567
-Gold8100-2615
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000-2499$0.16
2500+$0.15
Quantity:  Ea

DL 040 Sealed Series Socket Contact
DL040-SKT
DL 040 Sealed Series Socket Contact
View Item
DL040-SKT  DL 040 Sealed Series Socket Contact

Mfr: Sumitomo
Series: DL 040 Sealed Series

Wire SizePlatingPart Number
DL040-SKT1.3-.5 mm2 (22-20 AWG)Tin8100-1466
-Gold8100-1501
DL040-SKT2.75-1.25 mm2 (18-16 AWG)Tin8100-1467
-Gold8100-1502
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.18
50-99$0.17
100-499$0.16
500-999$0.15
1000-2499$0.14
2500-4999$0.13
5000+$0.10
Quantity:  Ea

Sumitomo 040 Sealed Series Plug
SUMI.040-PG
Sumitomo 040 Sealed Series Plug
OEM P/N: 7165-0432, black rubber
View Item
SUMI.040-PG  Sumitomo 040 Sealed Series Plug

Mfr: OEM Sumitomo
OEM P/N: 7165-0432, black rubber
Family: DL 040 Sealed Series, HV/HVG Sealed Series, HX 040 Sealed Series
Note: This is a plug, the hole pictured does not go all the way through.

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
Mechanical
  • Seal Material:NBR

QtyPrice (USD)
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000-2499$0.14
2500+$0.13
Quantity:  Ea

DL 040 Sealed Series Seals
DL040-SL
DL 040 Sealed Series Seals
View Item
DL040-SL  DL 040 Sealed Series Seals

Mfr: Sumitomo
Series: DL 040 Sealed Series

Wire Insulation Dia.ColorPart Number
DL040-SL11.4-1.8 mm (.055-.071 in)Reddish/Brown7165-0547
DL040-SL21.8-2.2 mm (.071-.086 in)Blue7165-0548
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Seal Material:Silicone Rubber

QtyPrice (USD)
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500+$0.11
Quantity:  Ea
