HX 040 Sealed Series

Products

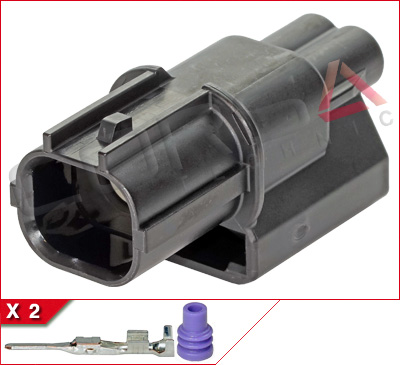

2-Way Plug Kit 2-Way Plug Kit
Item: HX040-2P-1
Contents: 1 plug, 2 seals, 2 pin contacts

Mating half of connector: HX040-2S-1
Sumitomo p/n: 6188-0589 from HX 040 Sealed Series
Typical Application:

QtyPrice
1-5$3.65
6-19$3.39
20-49$3.10
50-99$2.92
100+$2.55
Pin/Wire size
Insulation/Seal size
Quantity:  Kit

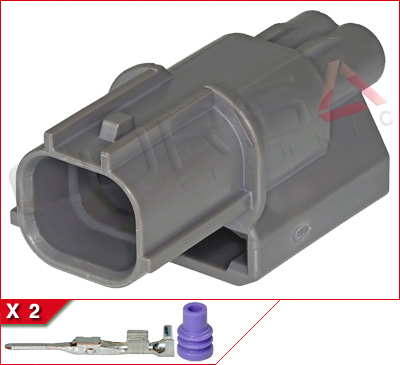

2-Way Plug Kit 2-Way Plug Kit
Item: HX040-2P-2
Contents: 1 plug, 2 seals, 2 pin contacts

Mating half of connector: HX040-2S-2
Sumitomo p/n: 6188-0590 from HX 040 Sealed Series
Typical Application:

QtyPrice
1-5$2.94
6-19$2.73
20-49$2.50
50-99$2.35
100+$2.06
Pin/Wire size
Insulation/Seal size
Quantity:  Kit

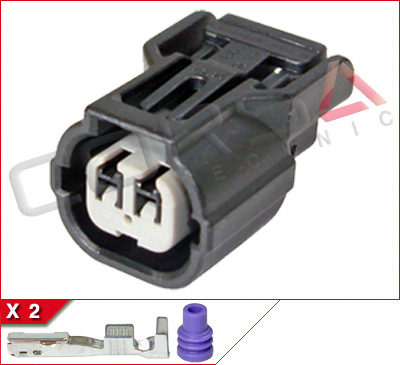

2-Way Receptacle Kit 2-Way Receptacle Kit
Item: HX040-2S-1
Previously item: M2AS
Contents: 1 receptacle with lock, 2 seals, 2 socket contacts

Mating half of connector: HX040-2P-1
Sumitomo p/n: 6189-0890 from HX 040 Sealed Series
Typical Application:

QtyPrice
1-5$2.79
6-19$2.65
20-49$2.51
50-99$2.37
100-249$2.23
250-499$2.09
500-999$1.95
1000+$1.81
Socket/Wire size
Insulation/Seal size
Quantity:  Kit

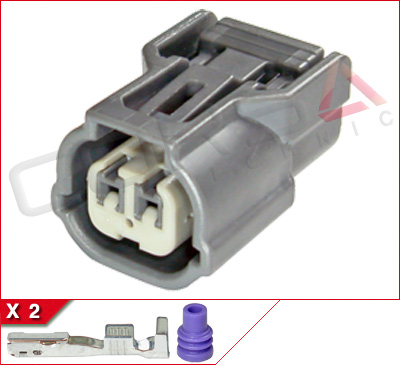

2-Way Receptacle Kit 2-Way Receptacle Kit
Item: HX040-2S-2
Contents: 1 receptacle with lock, 2 seals, 2 socket contacts

Mating half of connector: HX040-2P-2
Sumitomo p/n: 6189-0891 from HX 040 Sealed Series
Typical Application:

QtyPrice
1-5$2.49
6-19$2.32
20-49$2.12
50-99$1.99
100-499$1.87
500-999$1.74
1000+$1.62
Socket/Wire size
Insulation/Seal size
Quantity:  Kit

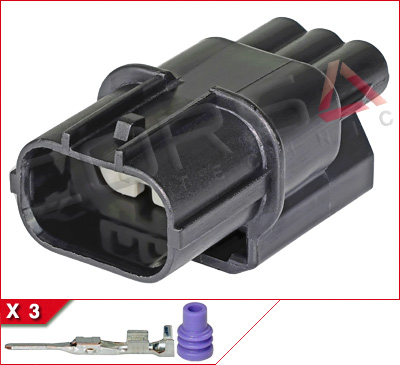

3-Way Plug Kit 3-Way Plug Kit
Item: HX040-3P
Contents: 1 plug, 3 seals, 3 pin contacts

Mating half of connector: HX040-3S
Sumitomo p/n: 6188-4739 from HX 040 Sealed Series
Typical Application:

Price: $5.91
Pin/Wire size
Insulation/Seal size
Quantity:  Kit

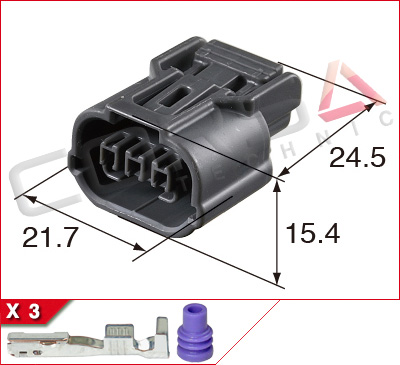

3-Way Receptacle Kit 3-Way Receptacle Kit
Item: HX040-3S
Previously item: M3AS
Contents: 1 receptacle with lock, 3 seals, 3 socket contacts

Mating half of connector: HX040-3P
Sumitomo p/n: 6189-0887 from HX 040 Sealed Series
Typical Application:
- GL1800 tail light (black)
- CBR 1000RR TPS, MAP (blue)
- Acura, Honda K series MAP sensor

Cross-reference:
-KTM 000700000FT

QtyPrice
1-5$3.49
6-19$3.32
20-49$3.14
50-99$2.97
100-249$2.79
250-499$2.62
500-999$2.44
1000+$2.27
Socket/Wire size
Insulation/Seal size
Quantity:  Kit

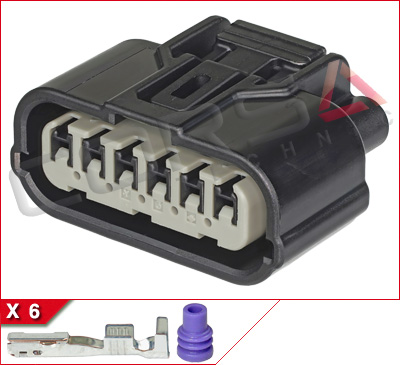

6-Way Receptacle Kit 6-Way Receptacle Kit
Item: HX040-6S
Contents: 1 receptacle with lock, 6 seals, 6 socket contacts

Mating half of connector: 6188-0658
Sumitomo p/n: 6189-1012 from HX 040 Sealed Series
Typical Application:

QtyPrice
1-5$5.68
6-19$5.28
20-49$4.83
50-99$4.54
100+$3.98
Socket/Wire size
Insulation/Seal size
Quantity:  Kit

HX 040, HV/HVG Series Pin Contact HX 040, HV/HVG Series Pin Contact
Item: HX040-PIN

Mfg: OEM/Aftermarket Sumitomo
Family: HX 040 Sealed Series and used with HV/HVG Sealed Series
HX040-PIN1 for 22-20 AWG wire, p/n: 8100-3177
HX040-PIN2 for 18-16 AWG wire, p/n: 8100-3178

QtyPrice
1-49$0.12
50-99$0.11
100-249$0.10
250-499$0.09
500+$0.08
Pin/Wire size
Quantity:  Ea

HX 040, HV/HVG Series Socket Contact HX 040, HV/HVG Series Socket Contact
Item: HX040-SKT

Mfg: OEM/Aftermarket Sumitomo
Family: HX 040 Sealed Series and used with HV/HVG Sealed Series
HX040-SKT1 for 22-20 AWG wire, p/n: 8100-3067
HX040-SKT2 for 20-16 AWG wire, p/n: 8100-3068

QtyPrice
1-49$0.12
50-99$0.11
100-249$0.10
250-499$0.09
500-999$0.08
1000-2499$0.07
2500+$0.06
Socket/Wire size
Quantity:  Ea

Sumitomo 040 Sealed Series Plug Sumitomo 040 Sealed Series Plug
Item: SUMI.040-PG

Mfg: OEM Sumitomo
Family: DL 040 Sealed Series, HV/HVG Sealed Series, HX 040 Sealed Series
P/N: 7165-0432, 4mm, Black
Note: This is a plug, the hole pictured does not go all the way through.

Price: $0.15
Quantity:  Ea

HX 040, HV/HVG Sealed Series Seals HX 040, HV/HVG Sealed Series Seals
Item: HX040-SL

Mfg: OEM Sumitomo
Family: HX 040 Sealed Series and used with HV/HVG Sealed Series
HX040-SL1 for insulation dia. 1.10-1.60 mm (.043-.063 in), p/n: 7165-1075, orange
HX040-SL2 for insulation dia. 1.60-1.90 mm (.063-.075 in), p/n: 7165-0621, light green
HX040-SL3 for insulation dia. 1.80-2.20 mm (.071-.087 in), p/n: 7165-0622, violet

QtyPrice
1-49$0.13
50-99$0.12
100-249$0.11
250-499$0.10
500-999$0.09
1000+$0.08
Insulation/Seal size
Quantity:  Ea
