HX 040 Sealed Joint Connector Series

cat switch cat switch
2-Way Kit
HX040.JC-2P
2-Way Kit
View Item

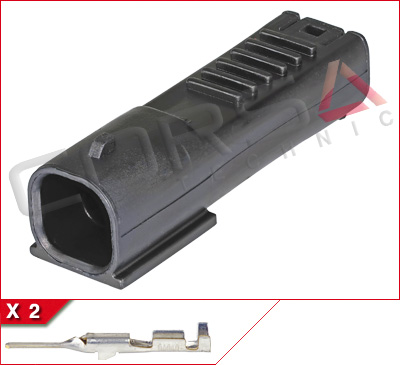

HX040.JC-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts for 22-20 AWG wire, rear wire seal and retainer

Mfr: Aftermarket, Sumitomo does not make an actual part
Series: HX 040 Sealed Joint Connector Series
Mating Part: HX040.JC-2S
NOTE: Intended for wire with an insulation diameter of 1.0-1.5 mm.

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hayabusa fuel injector (Gen II, 2008>)
  • Various KTM fuel injector
QtyPrice (USD)
1-5$3.63
6-19$3.45
20-49$3.27
50-99$3.09
100-249$2.90
250-499$2.72
500+$2.54
Quantity:  Kit

2-Way Kit
HX040.JC-2S
2-Way Kit
OEM P/N: 6189-6904
View Item
HX040.JC-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, TPA lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6904
Part Name: HX4TW-INJ2FAY-B
Mating Part: HX040.JC-2P
NOTE: Intended for wire with an insulation diameter of 1.4-1.9 mm.

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hayabusa fuel injector (Gen II, 2008>)
  • Various KTM fuel injector
spacer
  • KTM 000700000DQ
QtyPrice (USD)
1-5$5.95
6-19$5.65
20-49$5.36
50-99$5.06
100+$4.76
Quantity:  Kit

12-Way Joint Connector Kit
HX040.JC-12S
12-Way Joint Connector Kit
OEM P/N: 6189-6913
View Item
HX040.JC-12S  12-Way Joint Connector Kit
Kit Contents: Housing, 12 socket terminals, 1 busbar/splice

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6913
Part Name: HX4JC12FAY-NA
Requires cap, sold separately. HX040.JC-12S CAP

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:12
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Pitch:2.75mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $7.67
Quantity:  Kit

12-Way Joint Connector Cap
HX040.JC-12S CAP
12-Way Joint Connector Cap
OEM P/N: 6911-4095
View Item
HX040.JC-12S CAP  12-Way Joint Connector Cap

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6911-4095
Part Name: CAP-HX4JC12-B

spacer
General
  • Sealing:Matte Sealed
  • Pitch:2.75mm
Mechanical
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • CPA:No

QtyPrice (USD)
1-5$2.65
6-19$2.52
20-49$2.38
50-99$2.25
100-249$2.12
250+$1.99
Quantity:  Ea

23-Way Kit
HX040.JC-23S-1
23-Way Kit
OEM P/N: 6189-1082
View Item
HX040.JC-23S-1  23-Way Kit
Kit Contents: Housing, 23 socket contacts, TPA lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-1082
Part Name: HX4-23FAY-B
Mating Part: 6188-0660, 6188-4787, 6188-4789, 5010-8627, 5011-1590, 5011-6687

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:23
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:4
  • Pitch:Multiple
  • Row Spacing:5.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:Yes
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$16.23
6-19$15.42
20-49$14.61
50-99$13.80
100+$12.98
Quantity:  Kit

23-Way Kit
HX040.JC-23S-2
23-Way Kit
OEM P/N: 6189-6914
View Item
HX040.JC-23S-2  23-Way Kit
Kit Contents: Housing, 23 socket contacts, TPA lock

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6914
Part Name: HX4-L23FAY-B
Mating Part: 6188-4787, 6188-4789, 5010-8627, 5011-1590, 5011-6687

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:23
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:4
  • Pitch:Multiple
  • Row Spacing:5.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$14.67
6-19$13.94
20-49$13.20
50-99$12.47
100+$11.74
Quantity:  Kit

Busbar/Splice for 24-way joint connector
HX040.JC-12P-x
Busbar/Splice for 24-way joint connector
View Item
HX040.JC-12P-x  Busbar/Splice for 24-way joint connector

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series

Bus CircuitColorPart Number
Type A12-way spliceBlack6440-0294
B6+6Light Grey6440-0295
C4x3Dark Grey6440-0296
D3x4Green6440-0297
E8+4Blue6440-0298
F9+3Brown6440-0299
G7+5Dark Green6440-0300
H5+4+3Light Blue6440-0313
I6+3+3Dark Blue6440-0327
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:12
  • Contact Size:1.0mm (.040)
  • Number of Rows:1
  • Pitch:2.75mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PBT+GF
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-5$4.27
6-19$4.06
20-49$3.84
50-99$3.63
100-249$3.42
250+$3.20
Quantity:  Ea

24-Way Joint Connector Kit
HX040.JC-24S
24-Way Joint Connector Kit
OEM P/N: 6189-0900
View Item
HX040.JC-24S  24-Way Joint Connector Kit
Kit Contents: Housing, 24 socket terminals, 2 busbar/splices

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-0900
Part Name: HX4JC24FAY-NA
Requires cap, sold separately. HX040.JC-24S CAP

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:24
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:2.75mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $15.08
Quantity:  Kit

24-Way Joint Connector Cap
HX040.JC-24S-CAP
24-Way Joint Connector Cap
OEM P/N: 6911-2024
View Item
HX040.JC-24S-CAP  24-Way Joint Connector Cap

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6911-2024
Part Name: CAP-HX4JC24-B

spacer
General
  • Sealing:Matte Sealed
Mechanical
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • CPA:No

QtyPrice (USD)
1-5$2.49
6-19$2.37
20-49$2.24
50-99$2.12
100+$1.99
Quantity:  Ea

HX 040 Sealed Joint Connector Series Pin Contact
HX040.JC-PIN
HX 040 Sealed Joint Connector Series Pin Contact
View Item
HX040.JC-PIN  HX 040 Sealed Joint Connector Series Pin Contact

Mfr: Sumitomo
Series: HX 040 Sealed Joint Connector Series

Wire SizeP/N
HX040.JC-PIN1.3-.5 mm2 (22-20 AWG)8100-3508
HX040.JC-PIN2.75-1.25 mm2 (18-16 AWG)8100-3507
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.31
50-99$0.29
100-249$0.28
250-499$0.26
500-999$0.25
1000+$0.23
Quantity:  Ea

HX 040 Sealed Joint Connector Series Socket Contact
HX040.JC-SKT
HX 040 Sealed Joint Connector Series Socket Contact
View Item
HX040.JC-SKT  HX 040 Sealed Joint Connector Series Socket Contact

Mfr: Sumitomo
Series: HX 040 Sealed Joint Connector Series

Wire SizeP/N
HX040.JC-SKT1.3-.5 mm2 (22-20 AWG)8100-3082
HX040.JC-SKT2.75-1.25 mm2 (18-16 AWG)8100-3083
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice (USD)
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea

HX 040 Sealed Joint Connector Series Plug
HX040.JC-PG
HX 040 Sealed Joint Connector Series Plug
OEM P/N: 6914-0050
View Item
HX040.JC-PG  HX 040 Sealed Joint Connector Series Plug

Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6914-0050
Part Name: DMY-HX4-BR

spacer
General
  • Sealing:Matte Sealed
Mechanical
  • Housing Material:PBT

Price: $0.46
Quantity:  Ea
