58 M Unsealed Series

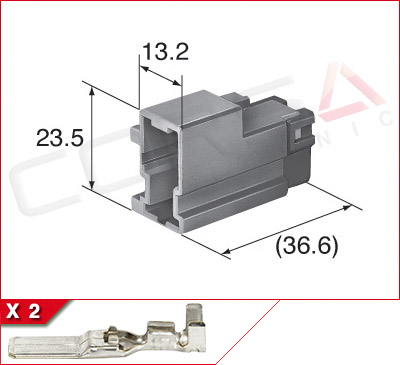

58M-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, rear lock

Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-1021 natural, 6101-1027 grey
Yazaki: 7122-6020 natural, 7122-6020-40 grey

Part Name: M02MW
Mating Part: 58M-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$5.86
6-19$5.57
20-49$5.27
50-99$4.98
100+$4.69
Quantity:  Kit

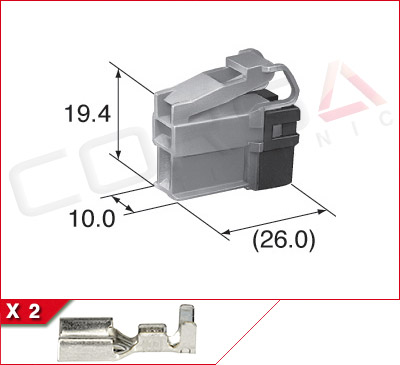

58M-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, rear lock

Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-5021 natural, 6101-5027 grey
Yazaki: 7123-6020 natural, 7123-6020-40 grey

Part Name: M02FW
Mating Part: 58M-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.82
6-19$3.63
20-49$3.44
50-99$3.25
100+$3.06
Quantity:  Kit

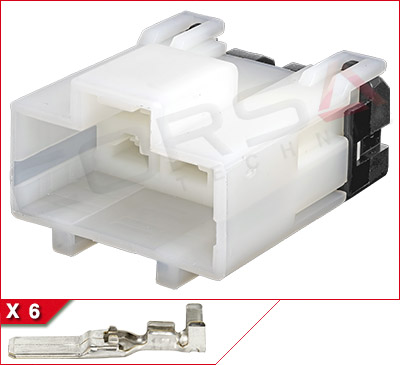

58M-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, rear lock

Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-1061 natural, 6101-1067 grey
Yazaki: 7122-6060 natural, 7122-6060-40 grey

Part Name: M06MW
Mating Part: 58M-6S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.47
6-19$3.23
20-49$2.95
50-99$2.78
100+$2.43
Quantity:  Kit

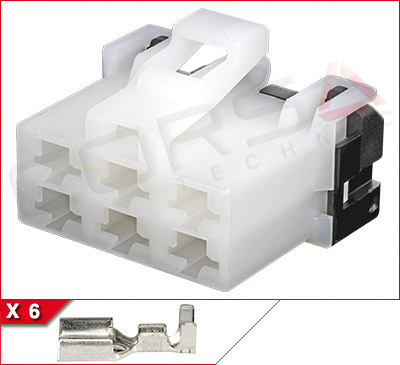

58M-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, rear lock

Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed
OEM P/N: Sumitomo: 6101-5061 natural, 6101-5067 grey
Yazaki: 7123-6060 natural, 7123-6060-40 grey

Part Name: M06FW
Mating Part: 58M-6P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA6
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.34
6-19$3.11
20-49$2.84
50-99$2.67
100+$2.34
Quantity:  Kit

58M-PIN  58 M Unsealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed

Wire SizeMaterialPlatingSumitomoYazaki
-.3-.5 mm2 (22-20 AWG)BrassNone1400-76487114-2870
58M-PIN1TinN/A7114-2870-02
-Copper alloyTin1400-98287114-2875
-.85-2.0 mm2 (18-14 AWG)BrassNone1401-76487114-2871
58M-PIN2TinN/A7114-2871-02
-Copper alloyTin1401-98287114-2876
-3.0 mm2 (12 AWG)BrassNone1402-76487114-2872
58M-PIN3TinN/A7114-2872-02
-Copper alloyTin1402-98287114-2877
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

58M-SKT  58 M Unsealed Socket Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed

Wire SizeMaterialPlatingSumitomoYazaki
-.3-.5 mm2 (22-20 AWG)BrassNone8245-40787116-2870
58M-SKT1TinN/A7116-2870-02
-Copper alloyTin8245-41727116-2875
-.85-2.0 mm2 (18-14 AWG)BrassNone1401-74417116-2871
58M-SKT2TinN/A7116-2871-02
-Copper alloyTin8245-41827116-2876
-3.0 mm2 (12 AWG)BrassNone1402-74417116-2872
58M-SKT3TinN/A7116-2872-02
-Copper alloyTin8245-41927116-2877
58M-SKT45.0 mm2 (10 AWG)BrassTin--
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500-4999$0.11
5000+$0.10
Quantity:  Ea
