Home ▹ Connectors ▹ By Manufacturer ▹ Sumitomo ▹ HW Sealed Series

HW Sealed Series

1-Way Kit

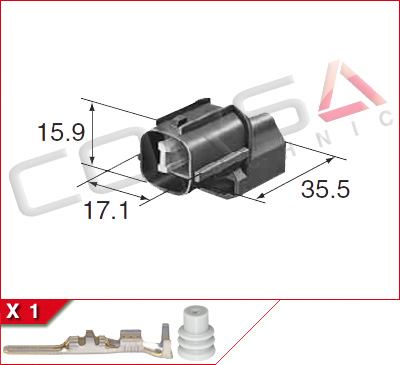

HW-1P
1-Way Kit
OEM P/N: 6181-0227
View Item
HW-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0227
Mating Part: HW-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.54
6-19$2.41
20-49$2.29
50-99$2.16
100+$2.03
Quantity:  Kit

1-Way Kit

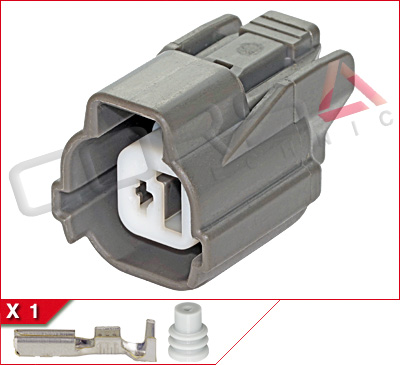

HW-1S
1-Way Kit
OEM P/N: 6189-0386
View Item
HW-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0386
Mating Part: HW-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • VTEC solenoid on Honda B16 B18 D16 Civic
QtyPrice (USD)
1-5$2.88
6-19$2.74
20-49$2.59
50-99$2.45
100+$2.30
Quantity:  Kit

2-Way Kit

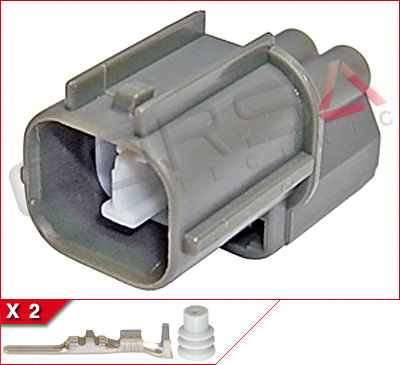

HW-2P-1
2-Way Kit
OEM P/N: 6181-0070
View Item
HW-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0070
Mating Part: HW-2S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.70
6-19$2.57
20-49$2.43
50-99$2.29
100-249$2.16
250-499$2.03
500+$1.89
Quantity:  Kit

2-Way Kit

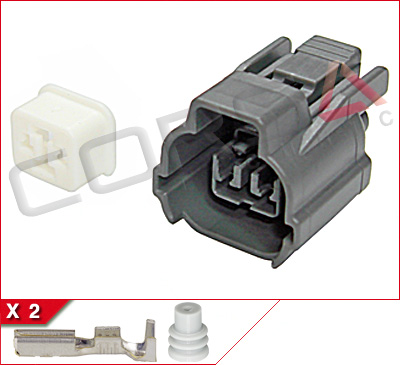

HW-2S-1
2-Way Kit
OEM P/N: 6189-0129
View Item
HW-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0129
Mating Part: HW-2P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.89
6-19$2.75
20-49$2.60
50-99$2.46
100-499$2.31
250-499$2.17
500+$2.02
Quantity:  Kit

2-Way Kit

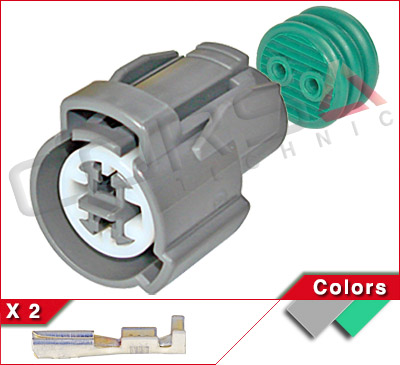

HW-2S-2
2-Way Kit
OEM P/N: Grey: 6189-0156
Green: 6189-0158
View Item
HW-2S-2  2-Way Kit
Kit Contents: Housing, 2 socket contacts, TPA lock, rear seal

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: Grey: 6189-0156
Green: 6189-0158
Part Name: HW09-TA2FAY-DGR2
HW09-TA2FAY-G
Mating Part: N/A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Row Spacing:3.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • RS125 Coolant temp sensor
  • RS250 Coolant temp sensor
  • Many Honda/Acura oil pressure switch, ECT, IAT, Knock sensor
spacer
  • Honda 9863C-0000200
  • KTM 000700000CM
Price: $8.41
Quantity:  Kit

Replacement seal for HW-2S-2
HW-2S-2SL
Replacement seal for HW-2S-2
OEM P/N: 7165-0095
View Item
HW-2S-2SL  Replacement seal for HW-2S-2

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 7165-0095
Replacement wire seal for HW-2S-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
Mechanical
Environmental
  • Temp Range[2]:-40 - 120 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $2.58
Quantity:  Kit

2-Way Kit

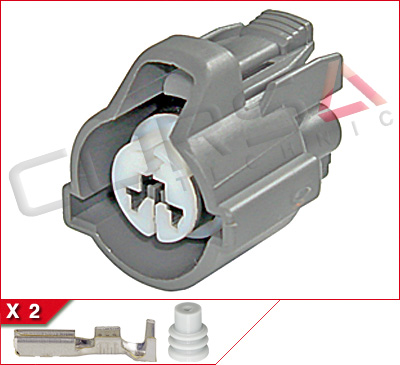

HW-2S-3
2-Way Kit
OEM P/N: 6189-0533
View Item
HW-2S-3  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0533
Part Name: HW09INJ2FAY2-DGR
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Honda 986CE-0000200
QtyPrice (USD)
1-5$4.29
6-19$4.08
20-49$3.86
50-99$3.65
100+$3.43
Quantity:  Kit

3-Way Kit

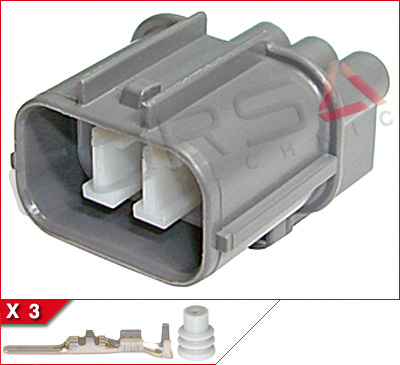

HW-3P-1
3-Way Kit
OEM P/N: 6181-0071
View Item
HW-3P-1  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0071
Mating Part: HW-3S-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.28
6-19$3.12
20-49$2.95
50-99$2.79
100+$2.62
Quantity:  Kit

3-Way Kit

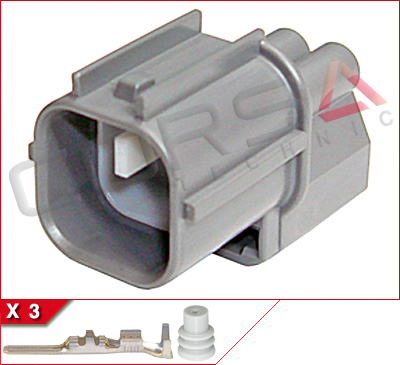

HW-3P-2
3-Way Kit
OEM P/N: 6181-0072
View Item
HW-3P-2  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0072
Mating Part: HW-3S-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.28
6-19$3.12
20-49$2.95
50-99$2.79
100+$2.62
Quantity:  Kit

3-Way Kit

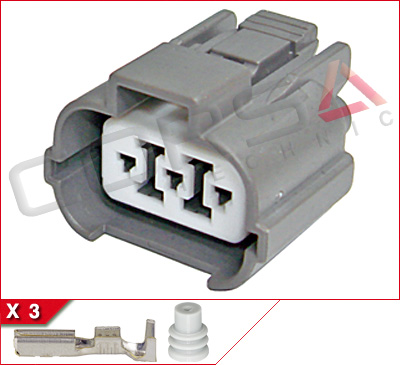

HW-3S-1
3-Way Kit
OEM P/N: 6189-0130
View Item
HW-3S-1  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0130
Mating Part: HW-3P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • CBR front wheelspeed
QtyPrice (USD)
1-5$2.79
6-19$2.59
20-49$2.37
50-99$2.23
100+$1.95
Quantity:  Kit

3-Way Kit

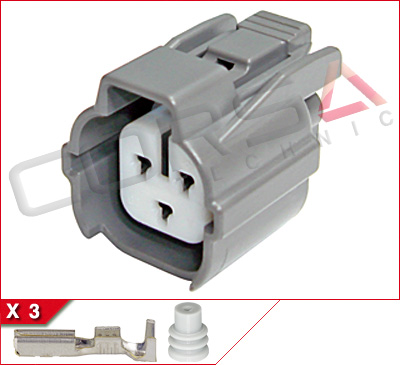

HW-3S-2
3-Way Kit
OEM P/N: 6189-0131
View Item
HW-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0131
Mating Part: HW-3P-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.79
6-19$3.60
20-49$3.41
50-99$3.22
100+$3.03
Quantity:  Kit

3-Way Kit
HW-3S-3
3-Way Kit
OEM P/N: 6189-0154
View Item
HW-3S-3  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, TPA lock

Mfr: Aftermarket Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0154
Part Name: HW09T/S3FAY-DGR
Mating Part: N/A

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:1
  • Pitch:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • VFR1000 TPS
  • Honda B-series TPS
spacer
  • Honda 986CC-0000300
QtyPrice (USD)
1-5$4.07
6-19$3.79
20-49$3.46
50-99$3.26
100+$2.85
Quantity:  Kit

4-Way Kit
HW-4P
4-Way Kit
OEM P/N: 6181-0073
View Item
HW-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0073
Mating Part: HW-4S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$4.02
6-19$3.82
20-49$3.62
50-99$3.42
100+$3.22
Quantity:  Kit

4-Way Kit
HW-4S
4-Way Kit
OEM P/N: 6189-0132
View Item

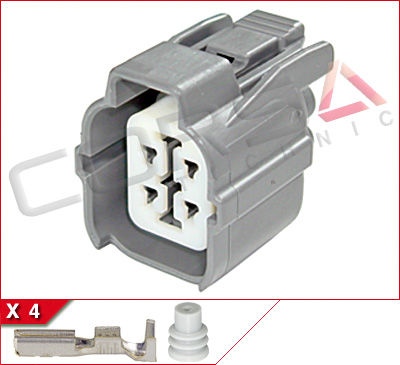

HW-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0132
Part Name: HW09-4FAY-DGR2
Mating Part: HW-4P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$4.34
6-19$4.12
20-49$3.91
50-99$3.69
100+$3.47
Quantity:  Kit

6-Way Kit
HW-6P
6-Way Kit
OEM P/N: 6181-0074
View Item

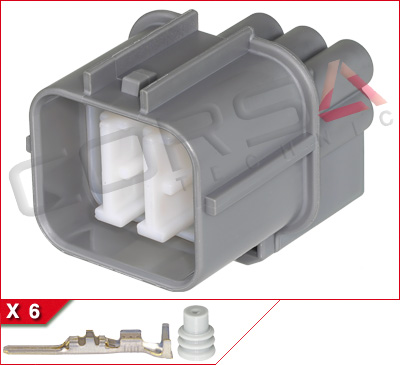

HW-6P  6-Way Kit
Kit Contents: Housing, 6 pin contacts, 6 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0074
Mating Part: HW-6S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.87
6-19$3.68
20-49$3.48
50-99$3.29
100+$3.10
Quantity:  Kit

6-Way Kit
HW-6S
6-Way Kit
OEM P/N: 6189-0133
View Item
HW-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0133
Mating Part: HW-6P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.82
6-19$3.63
20-49$3.44
50-99$3.25
100+$3.06
Quantity:  Kit

8-Way Kit
HW-8P
8-Way Kit
OEM P/N: 6181-0075
View Item
HW-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0075
Mating Part: HW-8S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$4.47
6-19$4.25
20-49$4.02
50-99$3.80
100-249$3.58
250+$3.35
Quantity:  Kit

8-Way Kit
HW-8S
8-Way Kit
OEM P/N: 6189-0134
View Item
HW-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0134
Mating Part: HW-8P, HW.JC-8P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:2
  • Pitch:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$4.58
6-19$4.35
20-49$4.12
50-99$3.89
100+$3.66
Quantity:  Kit

8-Way Joint Connector (All circuits tied)
HW.JC-8P
8-Way Joint Connector (All circuits tied)
OEM P/N: 6188-0322
View Item
HW.JC-8P  8-Way Joint Connector (All circuits tied)
Kit Contents: 1x 8-way splice connector

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0322
Part Name: HW9JC-8MAS-DGR
Mating Part: HW-8S
All 8 circuits tied together

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:2.3mm (.090)
  • Number of Rows:2
  • Pitch:6.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$6.20
6-19$5.89
20-49$5.58
50-99$5.27
100+$4.96
Quantity:  Ea

10-Way Kit
HW-10P
10-Way Kit
OEM P/N: 6181-0076
View Item
HW-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts, 10 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0076
Part Name: HW09-10M-DGR
Mating Part: HW-10S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:3
  • Pitch:6.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.79
6-19$5.50
20-49$5.21
50-99$4.92
100+$4.63
Quantity:  Kit

10-Way Kit
HW-10S
10-Way Kit
OEM P/N: 6189-0135
View Item
HW-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6189-0135
Mating Part: HW-10P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:3
  • Pitch:6.0mm
  • Row Spacing:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$6.18
6-19$5.87
20-49$5.56
50-99$5.25
100+$4.94
Quantity:  Kit

14-Way Kit
HW-14P
14-Way Kit
OEM P/N: 6181-0077
View Item

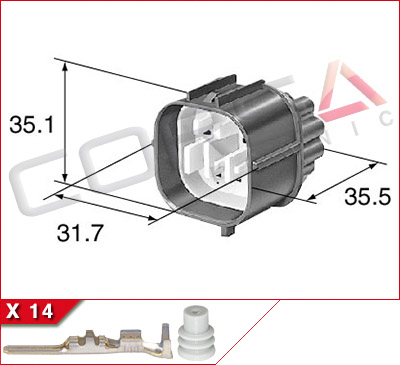

HW-14P  14-Way Kit
Kit Contents: Housing, 14 pin contacts, 14 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6181-0077
Part Name: HW09-14M-DGR
Mating Part: HW-14S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.85
6-19$5.56
20-49$5.26
50-99$4.97
100+$4.68
Quantity:  Kit

14-Way Kit
HW-14S
14-Way Kit
OEM P/N: Gray: 6189-0136
Blue: 6189-0252
View Item

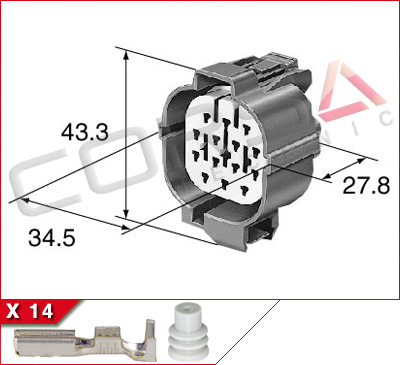

HW-14S  14-Way Kit
Kit Contents: Housing, 14 socket contacts, 14 seals, TPA lock

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: Gray: 6189-0136
Blue: 6189-0252
Part Name: HW09-14FAY
Mating Part: HW-14P, HW.JC-14P-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$6.10
6-19$5.79
20-49$5.49
50-99$5.18
100+$4.88
Quantity:  Kit

14-Way Joint Connector (7+7)
HW.JC-14P-1
14-Way Joint Connector (7+7)
OEM P/N: 6188-0378
View Item
HW.JC-14P-1  14-Way Joint Connector (7+7)
Kit Contents: 1x 14-way splice connector

Mfr: OEM Sumitomo
Series: HW Sealed Series
OEM P/N: 6188-0378
Part Name: HW9JC-14MAS-DGR
Mating Part: HW-14S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:14
  • Contact Size:2.3mm (.090)
  • Number of Rows:4
  • Pitch:6.0mm
  • Row Spacing:Multiple
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$7.13
6-19$6.77
20-49$6.42
50-99$6.06
100+$5.70
Quantity:  Ea

MT, HM, HW Sealed Pin Contact
SUMI.A-PIN
MT, HM, HW Sealed Pin Contact
View Item
SUMI.A-PIN  MT, HM, HW Sealed Pin Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeFinishP/N:
SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
-Gold1500-0134
SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRS-101N (size 1)
  • Honda 07JAZ-001080A
  • Suzuki 09900-28710-003 (terminal from refill kit)
  • Terminal used in Toyota 82998-12260, 82998-24070 (Gold plated) repair wire
QtyPrice (USD)
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000+$0.11
Quantity:  Ea

MT, HM, HW Sealed Socket Contact
SUMI.A-SKT
MT, HM, HW Sealed Socket Contact
View Item
SUMI.A-SKT  MT, HM, HW Sealed Socket Contact

Mfr: Sumitomo
Series: MT 090, HM 090, and HW 090 sealed series

Wire SizeMaterial/FinishSumitomoYazaki
SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
-Copper/Tin1500-01107116-1420
-Copper/Gold1500-0133N/A
-2.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
SUMI.A-SKT2Copper/Tin8240-48287116-1421
Available stock: Aftermarket OEM
Cross-compatible with Yazaki 090 Sealed Series


spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.70 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRS-102N (size 1)
  • Honda 07JAZ-001090A, 070MZ-002A800
  • KET ST730502-3 (SKT1), ST730554-3 (SKT2)
  • KUM MT095-31230 (SKT1), MT095-31030 (SKT2)
  • Suzuki 09900-28710-002 (terminal from refill kit)
  • Terminal used in Toyota 82998-12270, 82998-12600, 82998-24080 (Gold plated) repair wire
QtyPrice (USD)
1-49$0.21
50-99$0.20
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500-4999$0.13
5000-9999$0.12
10000+$0.11
Quantity:  Ea

DL HW MT SL TL TS Series Plug (P5)
SUMI-PG1
DL HW MT SL TL TS Series Plug (P5)
OEM P/N: 7161-9787
View Item
SUMI-PG1  DL HW MT SL TL TS Series Plug (P5)

Mfr: OEM Sumitomo
Series: DL 090 Sealed, HW Sealed, MT Sealed, SL 060 Sealed, SL 090 Sealed, TL Sealed, TS 090 Sealed
OEM P/N: 7161-9787
Part Name: SEAL DMY P5-BR
090 P5 plug, brown rubber
For 5mm pitch housings

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR

spacer
  • Toyota 90980-09229
QtyPrice (USD)
1-249$0.18
250-999$0.17
1000+$0.16
Quantity:  Ea

HW Sealed Series Seals
SUMI-SL
HW Sealed Series Seals
View Item
SUMI-SL  HW Sealed Series Seals

Mfr: OEM/Aftermarket Sumitomo
Series: HW Sealed Series

Wire Insulation Dia.ColorPart Number
SUMI-SL31.20-1.70 mm (.047-.067 in)Grey7165-0385
SUMI-SL51.70-2.40 mm (.067-.094 in)Blue7165-0118
SUMI-SL62.10-2.90 mm (.083-.114 in)Brown7165-0119
Available stock: Aftermarket OEM

spacer

QtyPrice (USD)
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.20
500-999$0.18
1000-2499$0.17
2500-4999$0.16
5000+$0.15
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
TOOL-CDIE10
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
OEM P/N: 624 396 3 012 RT
View Item
TOOL-CDIE10  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 396 3 012 RT

Compatibility
P/NWire SizeFinishSumitomo P/N
✓SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105
Gold1500-0134
✗SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408
GoldN/A

1x - in stock.
Price: $398.73
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
TOOL-CDIE11
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
OEM P/N: 624 397 3 012 RT
View Item
TOOL-CDIE11  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed female terminal - small
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 397 3 012 RT

Compatibility
P/NWire SizeMaterial/FinishSumitomo P/NYazaki P/N
✓SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✗SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

This item is backordered.
Price: $398.73
Quantity:  Ea

Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
TOOL-CDIE33
Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
OEM P/N: 624 1726 3 01 RT
View Item
TOOL-CDIE33  Rennsteig PEW 12 Die Set for Sumitomo HM/HW/MT sealed male/female terminals - large
Kit Contents: Crimp die set, locator, wire stop

OEM P/N: 624 1726 3 01 RT

Compatibility
P/NWire SizeFinishSumitomo P/NYazaki P/N
✗SUMI.A-PIN1.3-1.25 mm2 (22-16 AWG)Tin1500-0105-
Gold1500-0134-
✓SUMI.A-PIN22.0-2.7 mm2 (14 AWG)Tin8230-4408-
GoldN/A-
✗SUMI.A-SKT1.3-1.25 mm2 (22-16 AWG)Brass/Tin1500-0106N/A
Copper/Tin1500-01107116-1420
Copper/Gold1500-0133N/A
✓SUMI.A-SKT22.0-2.7 mm2 (14 AWG)Brass/TinN/AN/A
Copper/Tin8240-48287116-1421

This item is backordered.
Price: $402.25
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
