NH Series
NH025-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5267
Part Name: TH04FW-NH
Mating Part: 6098-5310
Kit Contents: Housing, 4 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5267
Part Name: TH04FW-NH
Mating Part: 6098-5310
3D STEP (6098-5267.zip)
Mfr Drawing (S-78179.pdf)General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
- Number of Rows:1
- Pitch:2.2mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Nissan/Bosch J-48817-126 pigtail connector
- Nissan service part 24008-9DM5E connector
NH025-16P
16-Way Kit
Kit Contents: Housing, 16 pin contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5281
Part Name: TH16MW-NH
Mating Part: NH025-16S
Kit Contents: Housing, 16 pin contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5281
Part Name: TH16MW-NH
Mating Part: NH025-16S
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
NH025-16S
16-Way Kit
Kit Contents: Housing, 16 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5279
Part Name: TH16FW-NH
Mating Part: NH025-16P
Kit Contents: Housing, 16 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5279
Part Name: TH16FW-NH
Mating Part: NH025-16P
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
NH025-24P
24-Way Kit
Kit Contents: Housing, 24 pin contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5285
Part Name: TH24MW-NH
Mating Part: NH025-24S
Kit Contents: Housing, 24 pin contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5285
Part Name: TH24MW-NH
Mating Part: NH025-24S
General
- Sealing:Unsealed
- Number of Ways:24
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
NH025-24S
24-Way Kit
Kit Contents: Housing, 24 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5283
Part Name: TH24FW-NH
Mating Part: NH025-24P
Kit Contents: Housing, 24 socket contacts for 24-20 awg wire
Mfr: Sumitomo
Series: NH Series
OEM P/N: 6098-5283
Part Name: TH24FW-NH
Mating Part: NH025-24P
General
- Sealing:Unsealed
- Number of Ways:24
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

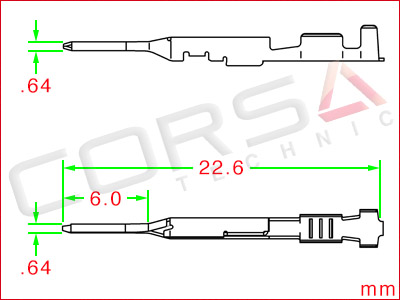

NH025-PIN1
NH Pin Contact
Mfr: Sumitomo
Series: NH Series
Mfr: Sumitomo
Series: NH Series
| Wire Size | Part Number | ||
|---|---|---|---|
| NH025-PIN1 | .22-.5 mm2 (24-20 AWG) | 8230-5379 (ss: 8230-4877) | |
| NH025-PIN2 | .75 mm2 (18 AWG) | 8230-5380 (ss: 8230-4876) | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Nissan/Bosch J-48817-217 (PIN1) repair wire terminal

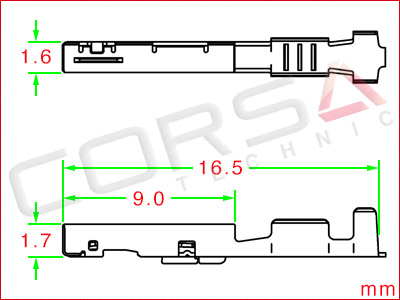

NH025-SKT1
NH Socket Contact
Mfr: Sumitomo
Series: NH Series
Mfr: Sumitomo
Series: NH Series
| Wire Size | Part Number | ||
|---|---|---|---|
| NH025-SKT1 | .22-.5 mm2 (24-20 AWG) | 8240-0552 (ss: 8240-0180) | |
| NH025-SKT2 | .75 mm2 (18 AWG) | 8240-0523 (ss: 8240-0179) | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.75 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Nissan/Bosch J-48817-216 (SKT1) repair wire terminal
CLIP-108
Yazaki Connector Clamp (9mm hole)
Mfr: Aftermarket Yazaki
Series: 62 Z-Type, 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, Sumitomo NH, Sumitomo RS - Type 1, TE Multilock 040 Series
OEM P/N: 7147-4065
Mfr: Aftermarket Yazaki
Series: 62 Z-Type, 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, Sumitomo NH, Sumitomo RS - Type 1, TE Multilock 040 Series
OEM P/N: 7147-4065
For 9.0mm dia. hole with 1-4.9 mm thickness
CLIP-115
Yazaki Connector Clamp (9mm hole)
Mfr: OEM Yazaki
Series: 62 Z-Type, 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, Sumitomo NH, Sumitomo RS - Type 1, TE Multilock 040 Series
OEM P/N: 7147-4066
Mfr: OEM Yazaki
Series: 62 Z-Type, 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, Sumitomo NH, Sumitomo RS - Type 1, TE Multilock 040 Series
OEM P/N: 7147-4066
For 9.0mm dia. hole with 5-8.4 mm thickness
CLIP-204
Yazaki Connector Clamp (6.5mm hole)
Mfr: OEM Yazaki
Series: 62 Z-Type, 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, Sumitomo NH, Sumitomo RS - Type 1, TE Multilock 040 Series
OEM P/N: 7147-9091
Mfr: OEM Yazaki
Series: 62 Z-Type, 91 A-Type, 91 Hybrid, 91 NS, 91 RK Series, 91 TK, SDL, SSD, SWP, compatible with Sumitomo 91 A-Type, Sumitomo NH, Sumitomo RS - Type 1, TE Multilock 040 Series
OEM P/N: 7147-9091
For 6.5mm dia. hole with .56-5.1mm thickness
