250 LT Type
250.LT-1S-2
1-Way Kit
Kit Contents: Housing, 1 socket contact
Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: Sumitomo: 6190-0513
Yazaki: 7123-2012 (IN STOCK)
Mating Part: Device
Kit Contents: Housing, 1 socket contact
Mfr: OEM Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: Sumitomo: 6190-0513
Yazaki: 7123-2012 (IN STOCK)
Mating Part: Device
General
- Sealing:Unsealed
- Number of Ways:1
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 3.00 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KUM PH029-01010

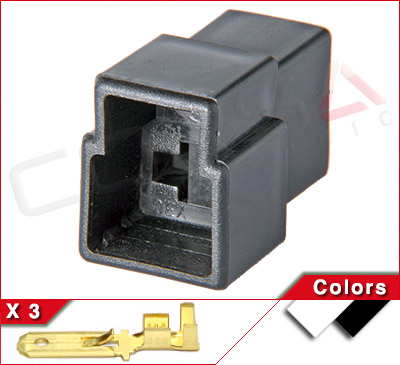

250.LT-3P
3-Way Kit
Kit Contents: Housing, 3 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6120-0533
Mating Part: 250.LT-3S
Kit Contents: Housing, 3 pin contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6120-0533
Mating Part: 250.LT-3S
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:7.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KUM PH021-03010
- Yazaki 7123-2030

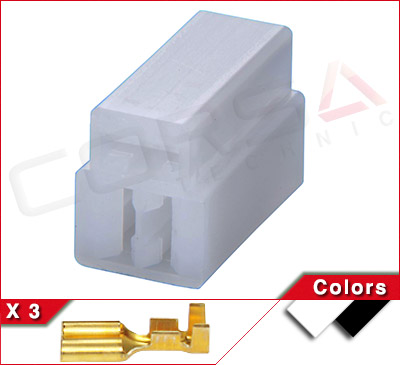

250.LT-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2533 (alt p/n w/flange 6110-0333)
Mating Part: 250.LT-3P
Kit Contents: Housing, 3 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2533 (alt p/n w/flange 6110-0333)
Mating Part: 250.LT-3P
General
- Sealing:Unsealed
- Number of Ways:3
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:7.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
250.LT-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2543 (alt p/n w/flange 6110-0343)
Mating Part: 6120-0543
Kit Contents: Housing, 4 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2543 (alt p/n w/flange 6110-0343)
Mating Part: 6120-0543
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KUM PH025-04010
- Yazaki 7123-2043
250.LT-6S-1
6-Way Kit
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2563 (alt p/n w/flange 6110-0363)
Mating Part: 6120-0563
Kit Contents: Housing, 6 socket contacts
Mfr: Aftermarket Sumitomo, Yazaki
Series: Sumitomo 250 LT Type
OEM P/N: 6110-2563 (alt p/n w/flange 6110-0363)
Mating Part: 6120-0563
General
- Sealing:Unsealed
- Number of Ways:6
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PP
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-20 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- KUM PH025-06010
- Yazaki 7123-2063
250.TL-PIN
250 Series Pin Contact
Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal
Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal
| Wire Size | Plating | Sumitomo | Yazaki | |
|---|---|---|---|---|
| - | .3 mm2 (22 AWG) | Plain Brass | 8230-4030 | 7114-2023 |
| - | Tin | 8230-4012 | 7114-2023-02 | |
| 250.TL-PIN1 | .5-2.0 mm2 (20-14 AWG) | Plain Brass | 1800-2093 | 7114-2020 |
| - | Tin | 1800-2092 | 7114-2020-02 | |
| 250.TL-PIN2 | 3.0 mm2 (12 AWG) | Plain Brass | 1500-0048 | 7114-2021 |
| - | Tin | 1500-0049 | 7114-2021-02 | |
| Available stock: Aftermarket OEM | ||||
Drawing, size 0, Sumitomo (S-4459_1.pdf)- Drawing, size 0 tin, Sumitomo (S-4461_1.pdf)
- Drawing, size 1, Yazaki (7114-2020.pdf)
- Drawing, size 2, Sumitomo (S-4463.pdf)
- Drawing, size 2 tin, Sumitomo (S-4465_2.pdf)
-
TE Crimp Data, PIN1 (C-4150079_A.pdf)
-
Series Catalog - Sumitomo (250ARM-CAT.pdf)
-
Series Catalog - Yazaki (250CNA-CAT.pdf)
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero B-9
- Honda 07692-0010900
- Suzuki 09900-28701-011 (brass)
250.TL-SKT
250 Series Socket Contact
Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal, Used in Tokai Rika 6.3 (250) Unsealed
Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal, Used in Tokai Rika 6.3 (250) Unsealed
| Wire Size | Plating | Sumitomo | Yazaki | |
|---|---|---|---|---|
| - | .3 mm2 (22 AWG) | Plain Brass | 8240-4020 | - |
| - | Tin | 8240-4012 | - | |
| - | .3-.5 mm2 (22-20 AWG) | Plain Brass | - | 7116-2095 |
| - | Tin | - | 7116-2095-02 | |
| 250.TL-SKT1 | .5-2.0 mm2 (20-14 AWG) | Plain Brass | 1800-2094 | - |
| - | Tin | 1800-2095 | - | |
| - | .85-2.0 mm2 (18-14 AWG) | Plain Brass | - | 7116-2090 |
| - | Tin | - | 7116-2090-02 | |
| 250.TL-SKT2 | 3.0 mm2 (12 AWG) | Plain Brass | 1500-0009 | 7116-2092 |
| - | Tin | 1500-0027 | 7116-2092-02 | |
| Available stock: Aftermarket OEM | ||||
- Drawing, size 0, Sumitomo (S-4460_3.pdf)
- Drawing, size 0 tin, Sumitomo (S-4462_1.pdf)
- Drawing, Yazaki (7116-2095.pdf)
- Drawing, size 1, Sumitomo (S-1766_4.pdf)
- Drawing, Yazaki (7116-2090.pdf)
- Drawing, size 2, Sumitomo (S-4464_1.pdf)
- Drawing, size 2 tin, Sumitomo (S-4466_2.pdf)
-
TE Crimp Data, 18-14awg (C-2150490_E.pdf)
-
TE Crimp Data, 12awg (C-2150746_B.pdf)
-
Series Catalog - Sumitomo (250ARM-CAT.pdf)
-
Series Catalog - Yazaki (250CNA-CAT.pdf)
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hero B-10
- Honda 07692-0011000 (0.5-2.3mm2, SKT1), 070PZ-002A700 (SKT2)
- Suzuki 09900-28701-012 (brass)
