CN(A) Tang Type Terminal

1-Way Kit
250.ARM-1P
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)

250.ARM-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2115-30 (PA66), 7122-2215-30 (PP)
Natural | 6110-2683 (PA66), 6070-1381 (PP) | 7122-2115 (PA66), 7122-2215 (PP)

Mating Part: 250.ARM-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (male half)
  • KTM 000700000BN
QtyPrice
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-499$0.76
500+$0.71
Quantity:  Kit

1-Way Kit
250.ARM-1S
1-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
250.ARM-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2115-30 (PA66), 7123-2215-30 (PP)
Natural | 6110-2682 (PA66), 6070-1391 (PP) | 7123-2115 (PA66), 7123-2215 (PP)
Mating Part: 250.ARM-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-36R (female half)
  • KTM 000700000CH
QtyPrice
1-5$0.95
6-19$0.90
20-49$0.85
50-99$0.81
100-249$0.76
250-499$0.71
500+$0.67
Quantity:  Kit

2-Way Kit

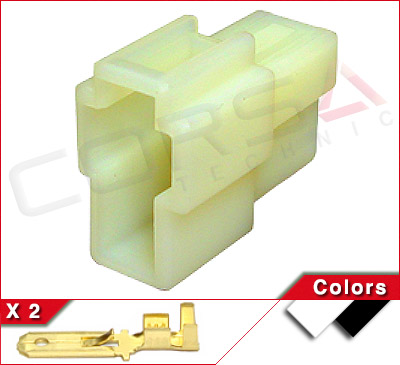

250.ARM-2P-1
2-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2128-30 (PA66), 7122-2228-30 (PP)
Natural | 6111-2567 (PA66), 6070-2381 (PP) | 7122-2128 (PA66), 7122-2228 (PP)
250.ARM-2P-1  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2128-30 (PA66), 7122-2228-30 (PP)
Natural | 6111-2567 (PA66), 6070-2381 (PP) | 7122-2128 (PA66), 7122-2228 (PP)
Mating Part: 250.ARM-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.13
20-49$1.07
50-99$1.01
100-249$0.95
250-499$0.89
500-999$0.83
1000+$0.77
Quantity:  Kit

2-Way Kit (Reversed keying)

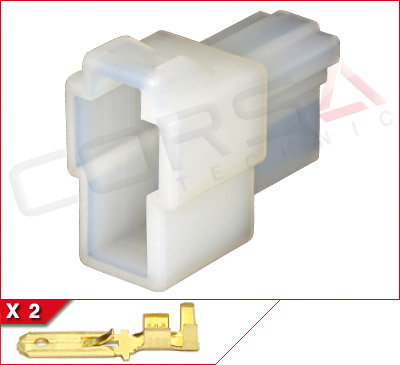

250.ARM-2P-2
2-Way Kit (Reversed keying)
250.ARM-2P-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2S-2
Note: This is a reversed keying version of the regular 250.ARM-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit

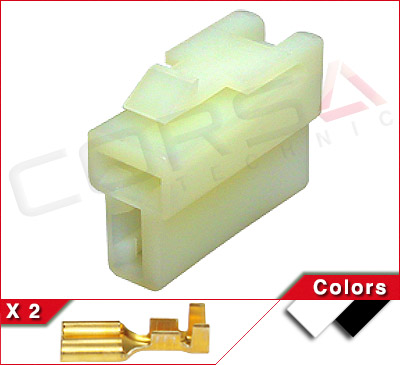

250.ARM-2S-1
2-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2128-30 (PA66), 7123-2228-30 (PP)
Natural | 6111-2568 (PA66), 6070-2391 (PP) | 7123-2128 (PA66), 7123-2228 (PP)
250.ARM-2S-1  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2128-30 (PA66), 7123-2228-30 (PP)
Natural | 6111-2568 (PA66), 6070-2391 (PP) | 7123-2128 (PA66), 7123-2228 (PP)
Mating Part: 250.ARM-2P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.13
20-49$1.07
50-99$1.01
100-249$0.95
250-499$0.89
500-999$0.83
1000+$0.77
Quantity:  Kit

2-Way Kit (Reversed keying)

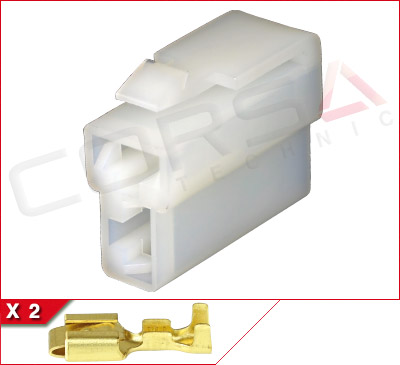

250.ARM-2S-2
2-Way Kit (Reversed keying)
250.ARM-2S-2  2-Way Kit (Reversed keying)
Kit Contents: Housing, 2 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-2P-2
Note: This is a reversed keying version of the regular 250.ARM-2S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

3-Way Kit

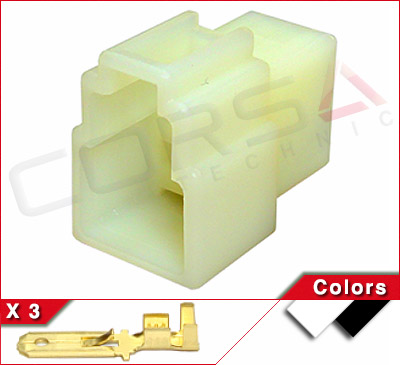

250.ARM-3P
3-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2137-30 (PA66), 7122-2237-30 (PP)
Natural | 6111-2556 (PA66), 6070-3381 (PP) | 7122-2137 (PA66), 7122-2237 (PP)
250.ARM-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2137-30 (PA66), 7122-2237-30 (PP)
Natural | 6111-2556 (PA66), 6070-3381 (PP) | 7122-2137 (PA66), 7122-2237 (PP)
Mating Part: 250.ARM-3S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-38R (male half)
QtyPrice
1-5$1.29
6-19$1.20
20-49$1.10
50-99$1.03
100-249$0.90
250-499$0.84
500+$0.77
Quantity:  Kit

3-Way Kit

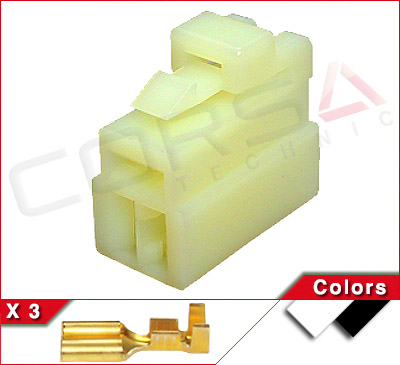

250.ARM-3S
3-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2137-30 (PA66), 7123-2237-30 (PP)
Natural | 6111-2557 (PA66), 6070-3391 (PP) | 7123-2137 (PA66), 7123-2237 (PP)
250.ARM-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2137-30 (PA66), 7123-2237-30 (PP)
Natural | 6111-2557 (PA66), 6070-3391 (PP) | 7123-2137 (PA66), 7123-2237 (PP)
Mating Part: 250.ARM-3P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-38R (female half)
QtyPrice
1-5$1.29
6-19$1.20
20-49$1.10
50-99$1.03
100-249$0.90
250-499$0.84
500+$0.77
Quantity:  Kit

4-Way Kit
250.ARM-4P
4-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2046-30 (PA66), 7122-2446-30 (PP)
Natural | 6111-2009 (PA66), 6070-4381 (PP) | 7122-2046 (PA66), 7122-2446 (PP)
250.ARM-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2046-30 (PA66), 7122-2446-30 (PP)
Natural | 6111-2009 (PA66), 6070-4381 (PP) | 7122-2046 (PA66), 7122-2446 (PP)
Mating Part: 250.ARM-4S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • FZR Ignitor (black)
  • Omron G8MS relay (relay side)
spacer
  • Hero B-18R (male half)
  • KTM 000700000EU
QtyPrice
1-5$1.60
6-19$1.52
20-49$1.44
50-99$1.36
100-249$1.28
250-499$1.20
500+$1.12
Quantity:  Kit

4-Way Kit
250.ARM-4S
4-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2249-30 (PA66), 7123-2446-30 (PP)
Natural | 6111-2010 (PA66), 6070-4391 (PP) | 7123-2249 (PA66), 7123-2446 (PP)
250.ARM-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2249-30 (PA66), 7123-2446-30 (PP)
Natural | 6111-2010 (PA66), 6070-4391 (PP) | 7123-2249 (PA66), 7123-2446 (PP)
Mating Part: 250.ARM-4P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • FZR Ignitor (harness side)
  • Omron G8MS relay (harness side)
spacer
  • Hero B-18R (female half)
QtyPrice
1-5$1.60
6-19$1.49
20-49$1.36
50-99$1.28
100-499$1.12
500-999$0.96
1000+$0.80
Quantity:  Kit

6-Way Kit

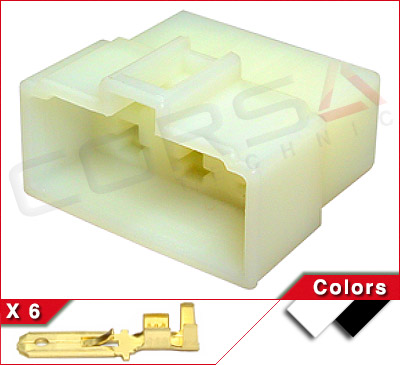

250.ARM-6P-1
6-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2162-30 (PA66), 7122-2262-30 (PP)
Natural | 6111-2007 (PA66), 6070-6381 (PP) | 7122-2162 (PA66), 7122-2262 (PP)
250.ARM-6P-1  6-Way Kit
Kit Contents: Housing, 6 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2162-30 (PA66), 7122-2262-30 (PP)
Natural | 6111-2007 (PA66), 6070-6381 (PP) | 7122-2162 (PA66), 7122-2262 (PP)
Mating Part: 250.ARM-6S-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • FZR Ignitor (black)
spacer
  • Hero B-13R (male half)
QtyPrice
1-5$2.21
6-19$2.10
20-49$1.99
50-99$1.88
100-249$1.77
250-499$1.66
500+$1.55
Quantity:  Kit

6-Way Kit

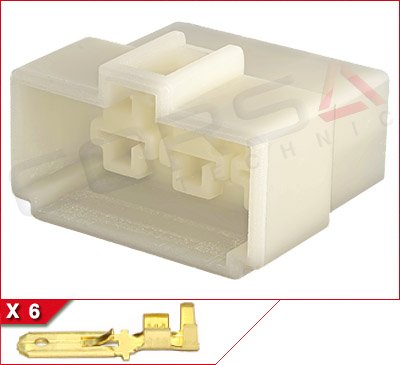

250.ARM-6P-2
6-Way Kit
250.ARM-6P-2  6-Way Kit
Kit Contents: Housing, 6 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-6S-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PP
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.74
6-19$2.60
20-49$2.47
50-99$2.33
100+$2.19
Quantity:  Kit

6-Way Kit

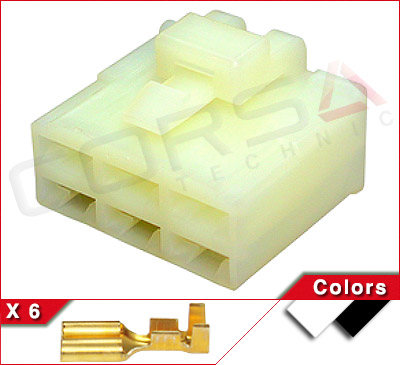

250.ARM-6S-1
6-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2165-30 (PA66), 7123-2262-30 (PP)
Natural | 6111-2008 (PA66), 6070-6391 (PP) | 7123-2165 (PA66), 7123-2262 (PP)
250.ARM-6S-1  6-Way Kit
Kit Contents: Housing, 6 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2165-30 (PA66), 7123-2262-30 (PP)
Natural | 6111-2008 (PA66), 6070-6391 (PP) | 7123-2165 (PA66), 7123-2262 (PP)
Mating Part: 250.ARM-6P-1

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • FZR Ignitor (harness side)
spacer
  • Hero B-13R (female half)
  • Honda 070PZ-002A800
QtyPrice
1-5$2.21
6-19$2.10
20-49$1.99
50-99$1.88
100-249$1.77
250-499$1.66
500+$1.55
Quantity:  Kit

6-Way Kit

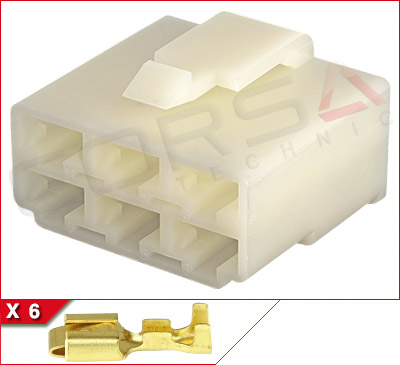

250.ARM-6S-2
6-Way Kit
250.ARM-6S-2  6-Way Kit
Kit Contents: Housing, 6 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
Mating Part: 250.ARM-6P-2

spacer
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PP
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 80 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.82
6-19$2.68
20-49$2.54
50-99$2.40
100+$2.26
Quantity:  Kit

8-Way Kit

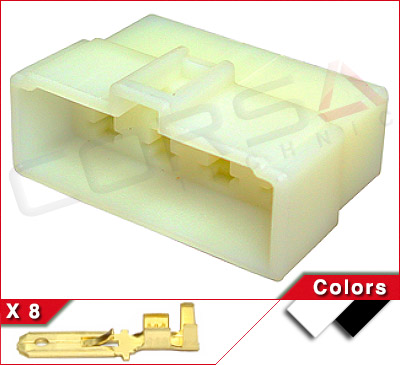

250.ARM-8P
8-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2086-30 (PA66), 7122-2186-30 (PP)
Natural | 6111-2011 (PA66), 6070-8381 (PP) | 7122-2086 (PA66), 7122-2186 (PP)
250.ARM-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7122-2086-30 (PA66), 7122-2186-30 (PP)
Natural | 6111-2011 (PA66), 6070-8381 (PP) | 7122-2086 (PA66), 7122-2186 (PP)
Mating Part: 250.ARM-8S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:8
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • FZR Ignitor (black)
QtyPrice
1-5$2.45
6-19$2.28
20-49$2.08
50-99$1.96
100+$1.72
Quantity:  Kit

8-Way Kit

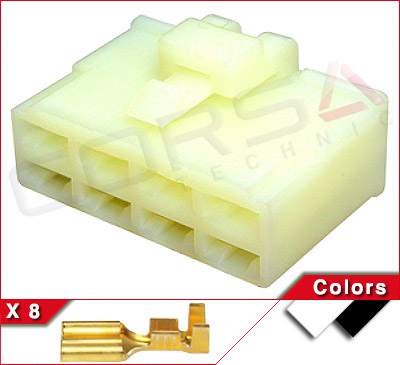

250.ARM-8S
8-Way Kit
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2086-30 (PA66), 7123-2186-30 (PP)
Natural | 6111-2012 (PA66), 6070-8391 (PP) | 7123-2086 (PA66), 7123-2186 (PP)
250.ARM-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts

Mfr: Aftermarket Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal
OEM P/N: Color | Sumitomo | Yazaki
Black | () | 7123-2086-30 (PA66), 7123-2186-30 (PP)
Natural | 6111-2012 (PA66), 6070-8391 (PP) | 7123-2086 (PA66), 7123-2186 (PP)
Mating Part: 250.ARM-8P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:8
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • FZR Ignitor (harness side)
QtyPrice
1-5$2.45
6-19$2.28
20-49$2.08
50-99$1.96
100+$1.72
Quantity:  Kit

250 Series Socket Contact (Alternate design)
250.ATL-SKT
250 Series Socket Contact (Alternate design)
250.ATL-SKT  250 Series Socket Contact (Alternate design)

Mfr: Sumitomo, Yazaki
Series: 250 Armlock series, CN(A) Tang Type Terminal

Wire SizePlatingSumitomoYazaki
250.ATL-SKT1.5-.85 mm2 (20-18 AWG)Plain Brass--
-Tin--
-.5-2.0 mm2 (20-14 AWG)Plain Brass8240-40107116-2030
-Tin8240-40147116-2030-02
250.ATL-SKT21.25-2.0 mm2 (16-14 AWG)Plain Brass--
-Tin--
-3.0 mm2 (12 AWG)Plain Brass-7116-2033
-Tin-7116-2033-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-20
  • Terminal used in Toyota 82998-12070 repair wire
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500+$0.12
Quantity:  Ea

250 Series Pin Contact
250.TL-PIN
250 Series Pin Contact
250.TL-PIN  250 Series Pin Contact

Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal

Wire SizePlatingSumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass8230-40307114-2023
-Tin8230-40127114-2023-02
250.TL-PIN1.5-2.0 mm2 (20-14 AWG)Plain Brass1800-20937114-2020
-Tin1800-20927114-2020-02
250.TL-PIN23.0 mm2 (12 AWG)Plain Brass1500-00487114-2021
-Tin1500-00497114-2021-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-9
  • Honda 07692-0010900
  • Suzuki 09900-28701-011 (brass)
QtyPrice
1-49$0.15
50-99$0.14
100-249$0.13
250-499$0.12
500-999$0.11
1000-2400$0.10
2500-4999$0.09
5000+$0.08
Quantity:  Ea

250 Series Socket Contact
250.TL-SKT
250 Series Socket Contact
250.TL-SKT  250 Series Socket Contact

Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal, Used in Tokai Rika 6.3 (250) Unsealed

Wire SizePlatingSumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass8240-4020-
-Tin8240-4012-
-.3-.5 mm2 (22-20 AWG)Plain Brass-7116-2095
-Tin-7116-2095-02
250.TL-SKT1.5-2.0 mm2 (20-14 AWG)Plain Brass1800-2094-
-Tin1800-2095-
-.85-2.0 mm2 (18-14 AWG)Plain Brass-7116-2090
-Tin-7116-2090-02
250.TL-SKT23.0 mm2 (12 AWG)Plain Brass1500-00097116-2092
-Tin1500-00277116-2092-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-10
  • Honda 07692-0011000 (0.5-2.3mm2, SKT1), 070PZ-002A700 (SKT2)
  • Suzuki 09900-28701-012 (brass)
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000-9999$0.11
10000+$0.10
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
