040 III Sealed Series
NEW ITEM!

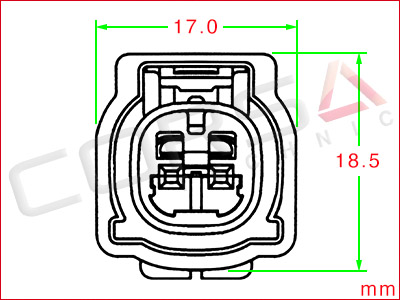

040III-2S
2-Way Kit
Kit Contents: Housing, 2x socket contacts for 22-20 AWG wire, 2x seals
Mfr: OEM Yazaki
Series: 040 III Sealed Series
OEM P/N: 7283-6175-30
Mating Part: 7282-6175-30
Kit Contents: Housing, 2x socket contacts for 22-20 AWG wire, 2x seals
Mfr: OEM Yazaki
Series: 040 III Sealed Series
OEM P/N: 7283-6175-30
Mating Part: 7282-6175-30
Mfr Drawing (7283-6175-30.pdf)General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:4.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:3A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-12195

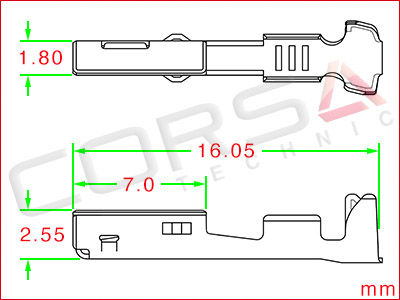

040III-SKT
040 III Sealed Series Socket Contact
Mfr: AMP/TE
Series: Sumitomo TS 040 Sealed, TS 040+187 Hybrid, Yazaki 040 III Sealed
Mfr: AMP/TE
Series: Sumitomo TS 040 Sealed, TS 040+187 Hybrid, Yazaki 040 III Sealed
| Wire Size | Finish | P/N: | |
|---|---|---|---|
| 040III-SKT | .3-.5 mm2 (22-20 AWG) | Tin | 316832-1 |
| - | Gold | 316833-2 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:8A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in Toyota 82998-12720 (SKT), 82998-12730 (SKT-Au) repair wire
- Yazaki 7116-4220-02, 7116-4220-08

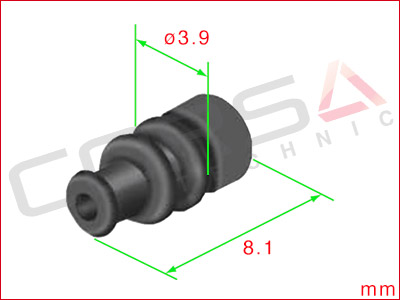

040III-SL
040 III Sealed Series Seal
Mfr: OEM Sumitomo
Series: TS 040 Sealed, TS 040+187 Hybrid, Yazaki 040 III Sealed
OEM P/N: 7165-0728, Dark Brown
Part Name: 09811PLG4S-BR
Mfr: OEM Sumitomo
Series: TS 040 Sealed, TS 040+187 Hybrid, Yazaki 040 III Sealed
OEM P/N: 7165-0728, Dark Brown
Part Name: 09811PLG4S-BR
For wire insulation dia. 1.1-1.7 mm (.043-.067 in)
General
- Sealing:Single Wire Sealed
- Contact Size:1.0mm (.040)
Mechanical
- Seal Material:Silicone Rubber
- Yazaki 7158-3070-80
