090+250 Hybrid Unsealed Series
090U/250U-16S
16-Way (12+4) Hybrid Kit
Kit Contents: Housing, 12x 090 socket contacts, 4x 250 socket contacts
Mfr: Aftermarket Yazaki
Series: 090+250 Hybrid Unsealed Series
OEM P/N: 7123-1165
Mating Part: 7122-1165
Kit Contents: Housing, 12x 090 socket contacts, 4x 250 socket contacts
Mfr: Aftermarket Yazaki
Series: 090+250 Hybrid Unsealed Series
OEM P/N: 7123-1165
Mating Part: 7122-1165

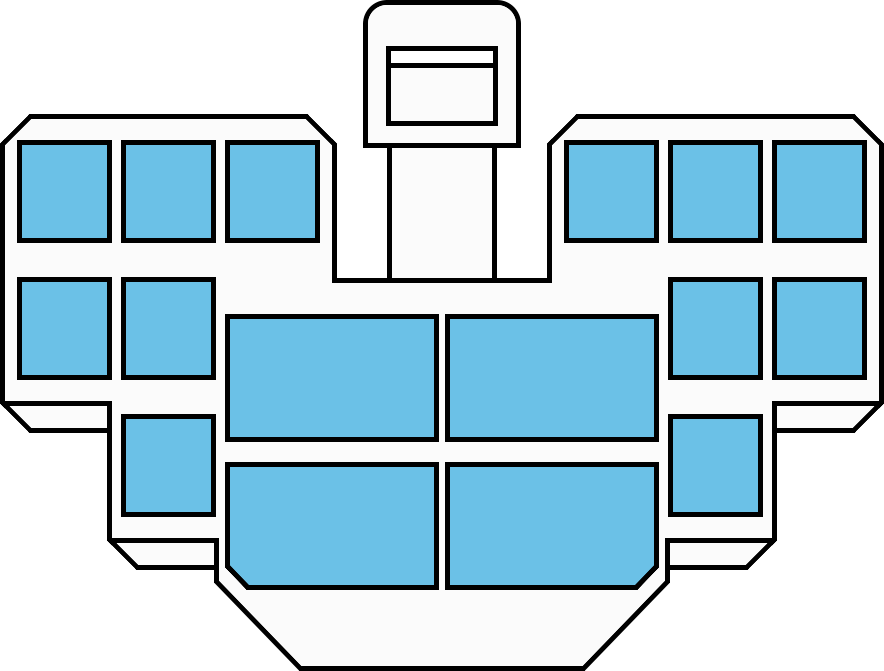

Rearview Pinout (090U_250U-16S.png)General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
- Toyota 90980-10454

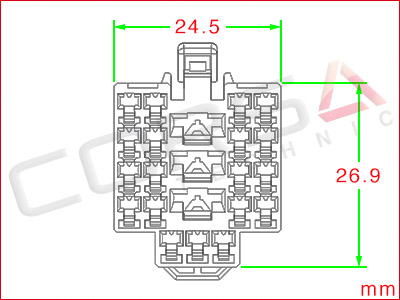

090U/250U-22S
22-Way (19+3) Hybrid Kit
Kit Contents: Housing, 19x 090 socket contacts, 3x 250 socket contacts
Mfr: Aftermarket Yazaki
Series: 090+250 Hybrid Unsealed Series
OEM P/N: 7123-1421
Mating Part: 7122-1421
Kit Contents: Housing, 19x 090 socket contacts, 3x 250 socket contacts
Mfr: Aftermarket Yazaki
Series: 090+250 Hybrid Unsealed Series
OEM P/N: 7123-1421
Mating Part: 7122-1421
Rearview Pinout (090U_250U-22S.png)General
- Sealing:Unsealed
- Number of Ways:22
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:5
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
- Toyota 90980-10458
250.HL-SKT
250 Housing Lance Socket Contact
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, Multilock 070/250 Hybrid, 250 Waterproof Connector, ETN, 250 Armlock-Housing Lance, TIL, HD 250 Unsealed Series, HD 250+305 Hybrid Unsealed Series, HM 250 Unsealed, CN(A) Plastic Lock-Arm, Furukawa VC Series, Yazaki New 250, 250 Joint Connector, 250 Special Type, 090+250 Hybrid Unsealed
Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, Multilock 070/250 Hybrid, 250 Waterproof Connector, ETN, 250 Armlock-Housing Lance, TIL, HD 250 Unsealed Series, HD 250+305 Hybrid Unsealed Series, HM 250 Unsealed, CN(A) Plastic Lock-Arm, Furukawa VC Series, Yazaki New 250, 250 Joint Connector, 250 Special Type, 090+250 Hybrid Unsealed
| Wire Size | Plating | AMP/TE | Sumitomo | Yazaki | |
|---|---|---|---|---|---|
| - | .3 mm2 (22 AWG) | Plain Brass | - | 8240-4220 | - |
| - | Tin | - | 8240-4202 | - | |
| 250.HL-SKT1 | .3-.5 mm2 (22-20 AWG) | Plain Brass | 170384-1 | - | 7116-2640 |
| - | Tin | 170384-2 | - | 7116-2640-02 | |
| - | .5-2.0 mm2 (20-14 AWG) | Plain Brass | 170032-2 | 8240-4140 | - |
| - | Tin | 170032-5 | 8240-4182 | - | |
| 250.HL-SKT2 | .85-1.25 mm2 (18-16 AWG) | Plain Brass | - | - | - |
| - | Tin | - | - | - | |
| - | .85-2.0 mm2 (18-14 AWG) | Plain Brass | - | - | 7116-2641 |
| - | Tin | - | - | 7116-2641-02 | |
| 250.HL-SKT3 | 1.25-2.0 mm2 (16-14 AWG) | Plain Brass | - | - | - |
| - | Tin | - | - | - | |
| - | 2.0-3.0 mm2 (14-12 AWG) | Plain Brass | 170258-1 | - | - |
| - | Tin | 170258-2 | - | - | |
| 250.HL-SKT4 | 3.0 mm2 (12 AWG) | Plain Brass | - | 1500-0068 | 7116-2642 |
| - | Tin | - | 1500-0058 | 7116-2642-02 | |
| Available stock: Aftermarket OEM | |||||
Drawing, size 1, Sumitomo (S-5719_2.pdf)- Drawing, size 1, tin, Sumitomo (S-5343_2.pdf)
- Drawing, size 2, Sumitomo (S-5168_5.pdf)
- Drawing, size 3, tin, Sumitomo (S-4954_6.pdf)
- Drawing, TE (170384etc.pdf)
- Drawing, Yazaki (7116-2640etc.pdf)
-
TE Crimp Data, 12awg (C-2150746_B.pdf)
-
Crimp Specs - TE (114-5052_G.pdf)
-
Product Specs - TE (108-5147_E1.pdf)
-
Manual - TE (412-5111_O.pdf)
-
Series Catalog - TE (250HL-CAT.pdf)
-
Series Catalog - Sumitomo (250ARM-CAT.pdf)
-
Series Catalog - Yazaki (250CNA-CAT.pdf)
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Delphi/Aptiv 12045204, 13627105
- Furukawa F04-2, F32-2, -5, F58-1, -2
- KET ST730267-1, -3, ST730268-1, -3, ST730269-1, -3
- KUM MT025-03000, MT025-03200, MT025-03300
- Terminal used in Toyota 82998-12060, 82998-12580 (tin plated) repair wire
SUMI.090U.A-SKT
DS, HD, HM, MT 090 Unsealed Series Socket Contact
Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, HM Unsealed Splice, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed, 090+250 Hybrid Unsealed
Mfr: Sumitomo, Yazaki
Series: Sumitomo: HD 090 Unsealed, HD 090+187 Hybrid Unsealed, HM Unsealed, HM Unsealed Splice, MT Unsealed Interlocking, MT Unsealed Semi-Locking
Yazaki: 090 Unsealed, 090+250 Hybrid Unsealed
| Wire Size | Finish | Sumitomo | Yazaki | |
|---|---|---|---|---|
| SUMI.090U.A-SKT1 | .3-.5 mm2 (22-20 AWG) | Tin | 8240-4412 | 7116-1180 |
| - | Gold | 8240-4849 | 7116-1180-08 | |
| SUMI.090U.A-SKT2 | .5-1.25 mm2 (20-16 AWG) | Tin | 8240-4422 | 7116-1181 |
| - | Gold | N/A | 7116-1181-08 | |
| SUMI.090U.A-SKT3 | 2.0 mm2 (14 AWG) | Tin | 8240-4652 | N/A |
| - | Gold | N/A | N/A | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-12170 repair wire
- Toyota 90980-09070 (SKT1), 90980-09082 (SKT2)
