Home ▹ Connectors ▹ By Manufacturer ▹ Tyco/AMP (TE Connectivity) ▹ 250 Housing Lance Series

250 Housing Lance Series

cat switch cat switch
1-Way Kit
250.HL-1P
1-Way Kit
View Item
250.HL-1P  1-Way Kit
Kit Contents: Housing, 1 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-1S

AMP/TESumitomoYazaki
172127-16070-16217122-2810
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.95
6-19$0.88
20-49$0.81
50-99$0.76
100+$0.67
Quantity:  Kit

1-Way Kit
250.HL-1S
1-Way Kit
View Item
250.HL-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-1P

AMP/TESumitomoYazaki
172128-16070-16117123-2810
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$0.95
6-19$0.88
20-49$0.81
50-99$0.76
100+$0.67
Quantity:  Kit

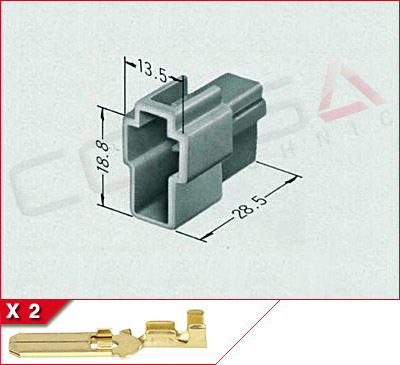

2-Way Kit
250.HL-2P
2-Way Kit
View Item
250.HL-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-2S

AMP/TESumitomoYazaki
172129-16070-26217122-2820
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

2-Way Kit
250.HL-2S
2-Way Kit
View Item
250.HL-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-2P

AMP/TESumitomoYazaki
172130-16070-26117123-2820
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Row Spacing:6.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.19
6-19$1.11
20-49$1.01
50-99$0.95
100+$0.83
Quantity:  Kit

3-Way Kit
250.HL-3P
3-Way Kit
View Item
250.HL-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-3S

AMP/TESumitomoYazaki
172131-16070-36217122-2830
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.29
6-19$1.20
20-49$1.10
50-99$1.03
100+$0.90
Quantity:  Kit

3-Way Kit
250.HL-3S
3-Way Kit
View Item
250.HL-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-3P

AMP/TESumitomoYazaki
172132-16070-36117123-2830
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:3
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.29
6-19$1.20
20-49$1.10
50-99$1.03
100+$0.90
Quantity:  Kit

4-Way Kit
250.HL-4P
4-Way Kit
View Item
250.HL-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-4S

AMP/TESumitomoYazaki
172133-16070-46217122-2840
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.60
6-19$1.49
20-49$1.36
50-99$1.28
100+$1.12
Quantity:  Kit

4-Way Kit
250.HL-4S
4-Way Kit
View Item
250.HL-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-4P

AMP/TESumitomoYazaki
172134-16070-46117123-2840
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:4
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.60
6-19$1.49
20-49$1.36
50-99$1.28
100+$1.12
Quantity:  Kit

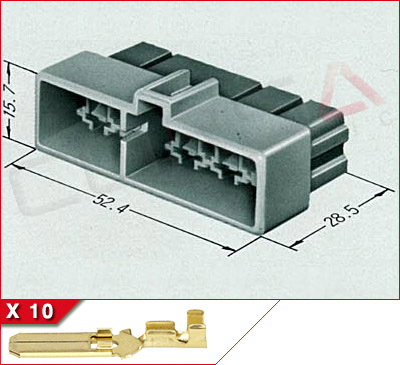

10-Way Kit
250.HL-10P
10-Way Kit
View Item
250.HL-10P  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-10S

AMP/TESumitomoYazaki
172137-16071-06217122-2800
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.66
6-19$2.47
20-49$2.26
50-99$2.13
100+$1.86
Quantity:  Kit

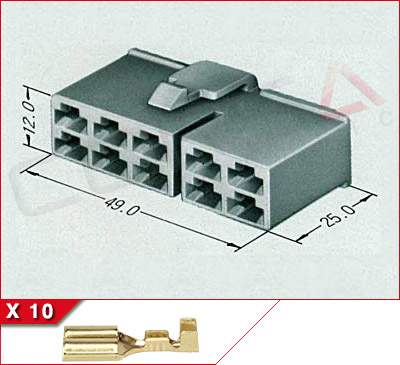

10-Way Kit
250.HL-10S
10-Way Kit
View Item
250.HL-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, 250 Armlock-Housing Lance, CN(A) Plastic Lock-Arm
Mating Part: 250.HL-10P

AMP/TESumitomoYazaki
172138-16071-06117123-2800
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Number of Ways:10
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:9.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.21
6-19$2.99
20-49$2.73
50-99$2.57
100+$2.25
Quantity:  Kit

250 Housing Lance Pin Contact
250.HL-PIN
250 Housing Lance Pin Contact
View Item
250.HL-PIN  250 Housing Lance Pin Contact

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, Multilock 070/250 Hybrid, 250 Waterproof Connector, ETN, 250 Armlock-Housing Lance, TIL, HD 250 Unsealed Series, HD 250+305 Hybrid Unsealed Series, CN(A) Plastic Lock-Arm

Wire SizePlatingAMP/TESumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass-8230-4050-
-Tin-8230-4052-
250.HL-PIN1.3-.5 mm2 (22-20 AWG)Plain Brass170349-1-7114-2630
-Tin170349-2-7114-2630-02
-.5-2.0 mm2 (20-14 AWG)Plain Brass170340-18230-4040-
-Tin170340-38230-4042-
250.HL-PIN2.85-1.25 mm2 (18-16 AWG)Plain Brass---
-Tin---
-.85-2.0 mm2 (18-14 AWG)Plain Brass--7114-2631
-Tin--7114-2631-02
250.HL-PIN31.25-2.0 mm2 (16-14 AWG)Plain Brass---
-Tin---
-2.0-3.0 mm2 (14-12 AWG)Plain Brass170341-1--
-Tin170341-3--
250.HL-PIN43.0 mm2 (12 AWG)Plain Brass-8230-40607114-2632
-Tin-8230-40627114-2632-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KUM MT021-03000, MT021-03200, MT021-03300
  • Terminal used in Toyota 82998-12050 (tin plated) repair wire
0x - 250.HL-PIN4 - OUT OF STOCK - in stock.
QtyPrice (USD)
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500+$0.10
Quantity:  Ea

250 Housing Lance Socket Contact
250.HL-SKT
250 Housing Lance Socket Contact
View Item
250.HL-SKT  250 Housing Lance Socket Contact

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, Multilock 070/250 Hybrid, 250 Waterproof Connector, ETN, 250 Armlock-Housing Lance, TIL, HD 250 Unsealed Series, HD 250+305 Hybrid Unsealed Series, HM 250 Unsealed, CN(A) Plastic Lock-Arm, Furukawa VC Series, Yazaki New 250, 250 Joint Connector, 250 Special Type, 090+250 Hybrid Unsealed

Wire SizePlatingAMP/TESumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass-8240-4220-
-Tin-8240-4202-
250.HL-SKT1.3-.5 mm2 (22-20 AWG)Plain Brass170384-1-7116-2640
-Tin170384-2-7116-2640-02
-.5-2.0 mm2 (20-14 AWG)Plain Brass170032-28240-4140-
-Tin170032-58240-4182-
250.HL-SKT2.85-1.25 mm2 (18-16 AWG)Plain Brass---
-Tin---
-.85-2.0 mm2 (18-14 AWG)Plain Brass--7116-2641
-Tin--7116-2641-02
250.HL-SKT31.25-2.0 mm2 (16-14 AWG)Plain Brass---
-Tin---
-2.0-3.0 mm2 (14-12 AWG)Plain Brass170258-1--
-Tin170258-2--
250.HL-SKT43.0 mm2 (12 AWG)Plain Brass-1500-00687116-2642
-Tin-1500-00587116-2642-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Delphi/Aptiv 12045204, 13627105
  • Furukawa F04-2, F32-2, -5, F58-1, -2
  • KET ST730267-1, -3, ST730268-1, -3, ST730269-1, -3
  • KUM MT025-03000, MT025-03200, MT025-03300
  • Terminal used in Toyota 82998-12060, 82998-12580 (tin plated) repair wire
QtyPrice (USD)
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500+$0.12
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
