Multilock 040/070 MkII Hybrid Series
Display:
MLC.HYBMK2-12S-1
12-Way KitKit Contents: Housing, 12x 040 size terminals
Mfr: OEM AMP/TE
Series: Multilock .040/.070 MkII Hybrid
OEM P/N: 917975-1
Part Name: HYBRID MK-2 PLUG HSG ASSY 12P
Mating Part: 174915, 176142, 178780
While this isn't a hybrid connector itself, it is part of the hybrid series
-
3D STEP (917975-1_C-3d_stp.zip) -
Drawing (C-917975_A.pdf) -
Rearview Pinout (MLC_HYBMK2-12S-1.png) -
Crimp Specs - 040II (114-5159_K1.pdf)
-
Crimp Specs - 070II (114-5160_J.pdf)
-
Product Specs (108-5342_D4.pdf)
-
Application Specs (114-8005_B.pdf)
-
Assembly Instructions (412-5631_A.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
Rearview Pinout (MLC_HYBMK2-12S-1.png)
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11408
MLC.HYBMK2-16S-1
16-Way KitKit Contents: Housing, 16x 040 size terminals
Mfr: OEM AMP/TE
Series: Multilock .040/.070 MkII Hybrid
OEM P/N: 917981-1
Part Name: HYBRID MK-2 PLUG HSG ASSY 16P
Mating Part: 178764
While this isn't a hybrid connector itself, it is part of the hybrid series
-
3D STEP (917981-1_A-3d_stp.zip)
-
Drawing (C-917981_A.pdf)
-
Rearview Pinout (MLC_HYBMK2-16S-1.png)
-
Crimp Specs - 040II (114-5159_K1.pdf)
-
Crimp Specs - 070II (114-5160_J.pdf)
-
Product Specs (108-5342_D4.pdf)
-
Application Specs (114-8005_B.pdf)
-
Assembly Instructions (412-5631_A.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
Rearview Pinout (MLC_HYBMK2-16S-1.png)General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:3.0mm
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11391
MLC.HYBMK2-22S
22-Way (16+6) Hybrid Kit
Kit Contents: Housing, 16x 040 size terminals, 6x 070 size terminals
Mfr: OEM AMP/TE
Series: Multilock .040/.070 MkII Hybrid
OEM P/N: 917989-1
Part Name: HYBRID MK-2 PLUG HSG ASSY 22P
Mating Part: 176255, 175444, 175521, 638048, 179375, 174917, 638010, 917322, 776189, 176122, 178764, 174518, 177609, 174915, 178780
Kit Contents: Housing, 16x 040 size terminals, 6x 070 size terminals
Mfr: OEM AMP/TE
Series: Multilock .040/.070 MkII Hybrid
OEM P/N: 917989-1
Part Name: HYBRID MK-2 PLUG HSG ASSY 22P
Mating Part: 176255, 175444, 175521, 638048, 179375, 174917, 638010, 917322, 776189, 176122, 178764, 174518, 177609, 174915, 178780
-
3D STEP (917989-1_C-3d_stp.zip)
-
Drawing (C-917989_A3.pdf)
-

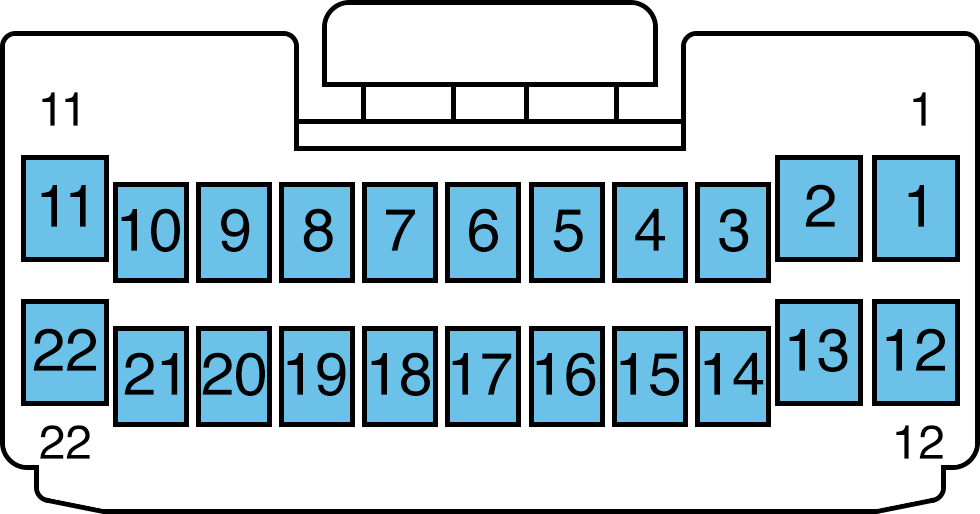

Rearview Pinout (MLC_HYBMK2-22S.png)
-
Crimp Specs - 040II (114-5159_K1.pdf)
-
Crimp Specs - 070II (114-5160_J.pdf)
-
Product Specs (108-5342_D4.pdf)
-
Application Specs (114-8005_B.pdf)
-
Assembly Instructions (412-5631_A.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
Rearview Pinout (MLC_HYBMK2-22S.png)General
- Sealing:Unsealed
- Number of Ways:22
- Contact Size:Mixed
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11392
MLC.HYBMK2-26S-1
26-Way (16+10) Hybrid KitKit Contents: Housing, 16x 040 size terminals, 10x 070 size terminals
Mfr: OEM AMP/TE
Series: Multilock .040/.070 MkII Hybrid
OEM P/N: 917992-1
Part Name: HYBRID MK-2 PLUG HSG ASSY 26P
Mating Part: 178764
-
3D STEP (917992-1_D-3d_stp.zip)
-
Drawing (C-917992_A1.pdf)
-
Rearview Pinout (MLC_HYBMK2-26S-1.png)
-
Crimp Specs - 040II (114-5159_K1.pdf)
-
Crimp Specs - 070II (114-5160_J.pdf)
-
Product Specs (108-5342_D4.pdf)
-
Application Specs (114-8005_B.pdf)
-
Assembly Instructions (412-5631_A.pdf)
-
Series Catalog (MLC-HYB-CAT.pdf)
Rearview Pinout (MLC_HYBMK2-26S-1.png)General
- Sealing:Unsealed
- Number of Ways:26
- Contact Size:Mixed
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:Multiple
- Row Spacing:5.2mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-11390, 90980-11786
MLC040II-SKT
Multilock 040 II Socket Contact
Mfr: AMP/TE
Series: Multilock .040 II Pair Mate, Multilock .040/.070 MkII Hybrid, Multilock .040/.070 II HD Hybrid
Mfr: AMP/TE
Series: Multilock .040 II Pair Mate, Multilock .040/.070 MkII Hybrid, Multilock .040/.070 II HD Hybrid
| Wire Size | Plating | Strip | Loose | |
|---|---|---|---|---|
| MLC040II-SKT1 | .3-.85 mm2 (22-18 AWG) | Tin | 175265-1 | 179417-1 |
| - | Gold | 175266-2 | 179418-2 | |
| MLC040II-SKT2 | .5-1.25 mm2 (20-16 AWG) | Tin | 179008-1 | 179419-1 |
| - | Gold | 175267-2 | 179420-2 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in Toyota 82998-24020 (SKT1), 82998-24110 (Gold plated, SKT1-Au) repair wire
- Terminal used in Toyota 82998-24120 (Gold plated, SKT2-Au) repair wire
MLC070II-SKT
Multilock 070 II Socket Contact
Mfr: AMP/TE
Series: Multilock .040/.070 MkII Hybrid, Multilock .040/.070 II HD Hybrid
Mfr: AMP/TE
Series: Multilock .040/.070 MkII Hybrid, Multilock .040/.070 II HD Hybrid
| Wire Size | Plating | Strip | Loose | |
|---|---|---|---|---|
| MLC070II-SKT1 | .3-.85 mm2 (22-18 AWG) 1.1-1.9mm Insulation dia | Tin | 175268-1 | 179423-1 |
| - | Gold | 175275-2 | 179424-2 | |
| MLC070II-SKT2 | .5-1.25 mm2 (20-16 AWG) 1.8-2.6mm Insulation dia | Tin | 175269-1 | 179425-1 |
| - | Gold | 175276-2 | 179426-2 | |
| MLC070II-SKT3 | 1.25-2.0 mm2 (16-14 AWG) 2.5-2.9mm Insulation dia | Tin | 175270-1 | 179427-1 |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:1.8mm (.070)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Terminal used in Toyota 82998-24100 repair wire
