Home ▹ Connectors ▹ By Manufacturer ▹ Tyco/AMP (TE Connectivity) ▹ Econoseal J Series Mk II

Econoseal J Series Mk II

1-Way Kit
ESJ-1P
1-Way Kit
OEM P/N: 174879-2
ESJ-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact, 1 seal, lock

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174879-2
Mating Part: ESJ-1S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$1.70
6-19$1.61
20-49$1.53
50-99$1.44
100+$1.36
Quantity:  Kit

1-Way Kit
ESJ-1S
1-Way Kit
OEM P/N: 174877-2 (superseded by: 2822388-1)
ESJ-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, lock plate

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174877-2 (superseded by: 2822388-1)
Mating Part: ESJ-1P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:1
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.76
6-19$2.62
20-49$2.48
50-99$2.35
100+$2.21
Quantity:  Kit

2-Way Kit

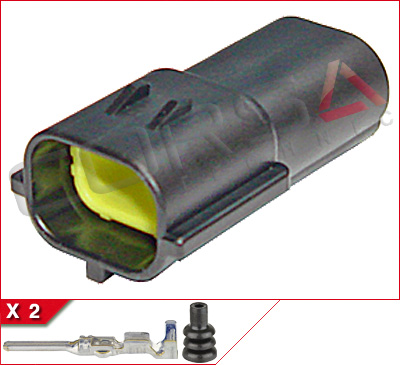

ESJ-2P
2-Way Kit
OEM P/N: 174354-2
ESJ-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals, lock

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174354-2
Mating Part: ESJ-2S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRA-111N
QtyPrice
1-5$2.20
6-19$2.09
20-49$1.98
50-99$1.87
100+$1.76
Quantity:  Kit

2-Way Kit

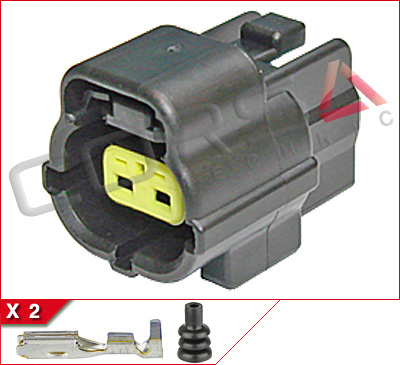

ESJ-2S
2-Way Kit
OEM P/N: 174352-2
ESJ-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, lock plate

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174352-2
Mating Part: ESJ-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mazda RX-7 FD IAT
spacer
  • Ford 5U2Z-14S411-AAB, WPT-1011 (Tin plated terminals, greased) pigtail connector
  • Hero FRA-112N
QtyPrice
1-5$3.11
6-19$2.95
20-49$2.80
50-99$2.64
100+$2.49
Quantity:  Kit

3-Way Kit
ESJ-3P
3-Way Kit
OEM P/N: 174359-2
ESJ-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals, lock

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174359-2
Mating Part: ESJ-3S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRA-113N
QtyPrice
1-5$2.98
6-19$2.83
20-49$2.68
50-99$2.53
100+$2.38
Quantity:  Kit

3-Way Kit
ESJ-3S
3-Way Kit
OEM P/N: 174357-2 (superseded by: 2822390-1)
ESJ-3S  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals, lock plate

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174357-2 (superseded by: 2822390-1)
Mating Part: ESJ-3P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:1
  • Pitch:4.8mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRA-114N
  • KTM 000700000DP
QtyPrice
1-5$3.23
6-19$3.07
20-49$2.91
50-99$2.75
100+$2.58
Quantity:  Kit

4-Way Kit
ESJ-4P
4-Way Kit
OEM P/N: 174259-2
ESJ-4P  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals, lock

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174259-2
Mating Part: ESJ-4S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.8mm
  • Row Spacing:5.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRA-115N
QtyPrice
1-5$3.39
6-19$3.22
20-49$3.05
50-99$2.88
100+$2.71
Quantity:  Kit

4-Way Kit
ESJ-4S
4-Way Kit
OEM P/N: 174257-2
ESJ-4S  4-Way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals, lock plate

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174257-2
Mating Part: ESJ-4P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.8mm
  • Row Spacing:5.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRA-116N
  • Nissan/Bosch J-48817-160 pigtail connector
  • Nissan service part 24008-9DN1A connector
QtyPrice
1-5$3.49
6-19$3.32
20-49$3.14
50-99$2.97
100+$2.79
Quantity:  Kit

8-Way Kit
ESJ-8P
8-Way Kit
OEM P/N: 174984-2
ESJ-8P  8-Way Kit
Kit Contents: Housing, 8 pin contacts, 8 seals, lock

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174984-2
Mating Part: ESJ-8S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.8mm
  • Row Spacing:5.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$5.85
6-19$5.56
20-49$5.26
50-99$4.97
100+$4.68
Quantity:  Kit

8-Way Kit
ESJ-8S
8-Way Kit
OEM P/N: 174982-2 (ss by: 2822393-1)
ESJ-8S  8-Way Kit
Kit Contents: Housing, 8 socket contacts, 8 seals, lock plate

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174982-2 (ss by: 2822393-1)
Mating Part: ESJ-8P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:8
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.8mm
  • Row Spacing:5.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$6.79
6-19$6.45
20-49$6.11
50-99$5.77
100+$5.43
Quantity:  Kit

10-Way Kit
ESJ-10S
10-Way Kit
OEM P/N: 174655-2, 2822395-1
ESJ-10S  10-Way Kit
Kit Contents: Housing, 10 socket contacts, 10 seals, lock plate

Mfr: OEM Tyco/AMP
Series: Econoseal J Series Mk II
OEM P/N: 174655-2, 2822395-1
Mating Part: 174657-2

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:10
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
  • Number of Rows:2
  • Pitch:4.8mm
  • Row Spacing:5.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Seal Material:NBR
  • Mounting Style:Clip Slot
  • TPA:Yes, separate/loose item
  • CPA:No
Electrical
  • Current Rating[1]:18.5A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$6.51
6-19$6.18
20-49$5.86
50-99$5.53
100+$5.21
Quantity:  Kit

TE 070 Pin Contact for ESJ, ES3.WW, SSC
TE070-PIN
TE 070 Pin Contact for ESJ, ES3.WW, SSC
TE070-PIN  TE 070 Pin Contact for ESJ, ES3.WW, SSC

Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series

Part Number
Wire SizePlatingStripLoose
TE070-PIN1.2-.5 mm2 (24-20 AWG)Tin171631-1173600-1
-Gold171631-2N/A
TE070-PIN2.5-1.25 mm2 (20-16 AWG)Tin171661-1173706-1
-Gold171661-2N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRA-103N (size 2)
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000+$0.16
Quantity:  Ea

TE 070 Socket Contact for ESJ, ES3.WW
TE070-SKT
TE 070 Socket Contact for ESJ, ES3.WW
TE070-SKT  TE 070 Socket Contact for ESJ, ES3.WW

Mfr: Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II

Part Number
Wire SizePlatingStripLoose
TE070-SKT1.2-.5 mm2 (24-20 AWG)Tin171630-1171699-1
-Gold171630-5N/A
TE070-SKT2.5-1.25 mm2 (20-16 AWG)Tin171662-1173707-1
-Gold171662-5N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero FRA-104N (size 2)
  • Nissan/Bosch J-48817-236 repair wire terminal
QtyPrice
1-49$0.15
50-99$0.14
100-249$0.13
250-499$0.12
500-999$0.11
1000+$0.10
Quantity:  Ea

TE 070 Seal Plug for ESJ, ES3.WW, SSC
TE070-PG
TE 070 Seal Plug for ESJ, ES3.WW, SSC
OEM P/N: 2822357-1 (supersedes 172748-1)
TE070-PG  TE 070 Seal Plug for ESJ, ES3.WW, SSC

Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II, Sealed Sensor Connector Series
OEM P/N: 2822357-1 (supersedes 172748-1)

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:NBR
Environmental
  • Temp Range[2]:-30 - 105 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford F50B-14A666-BA
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000+$0.15
Quantity:  Ea

TE 070 Seals for ESJ, ES3.WW
TE070-SL
TE 070 Seals for ESJ, ES3.WW
TE070-SL  TE 070 Seals for ESJ, ES3.WW

Mfr: OEM Tyco/AMP
Series: Econoseal 3 Wire to Wire, Econoseal J Series Mk II

Wire Insulation Dia.ColorPart Number
TE070-SL11.4-2.4 mm (.055-.094 in)Black2822352-1 (ss: 172746-1)
TE070-SL22.0-2.6 mm (.079-.102 in)Black2822354-1 (ss: 172888-2)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
Mechanical
  • Seal Material:NBR
Environmental
  • Temp Range[2]:-30 - 105 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero FRA-106N1
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.15
250-499$0.14
500-999$0.14
1000+$0.13
Quantity:  Ea

Tree Connector Clamp
CLIP-202
Tree Connector Clamp
CLIP-202  Tree Connector Clamp

Mfr: Aftermarket Furukawa, TE
Series: Furukawa RFW, QLW, RFW+QLW Hybrid
TE Econoseal J Series Mk II, Multilock 070 Series
For 6.25mm dia. hole with 5.10mm max. thickness

QtyPrice
1-5$0.31
6-19$0.29
20-49$0.28
50-99$0.26
100+$0.25
Quantity:  Ea

Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
TOOL-CDIE64
Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
OEM P/N: 624 1730 3 01 RT
TOOL-CDIE64  Rennsteig PEW 12 Die Set for AMP/TE Econoseal 070 terminals (20-16 AWG)
Kit Contents: Crimp die set, locator

OEM P/N: 624 1730 3 01 RT

Compatibility
P/NWire SizePlatingStripLoose
✗TE070-PIN1.2-.5 mm2 (24-20 AWG)Tin171631-1173600-1
Gold171631-2N/A
✓TE070-PIN2.5-1.25 mm2 (20-16 AWG)Tin171661-1173706-1
Gold171661-2N/A
✗TE070-SKT1.2-.5 mm2 (24-20 AWG)Tin171630-1171699-1
Gold171630-5N/A
✓TE070-SKT2.5-1.25 mm2 (20-16 AWG)Tin171662-1173707-1
Gold171662-5N/A

This item is backordered.
Price: $372.52
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
