Multilock Hybrid Series

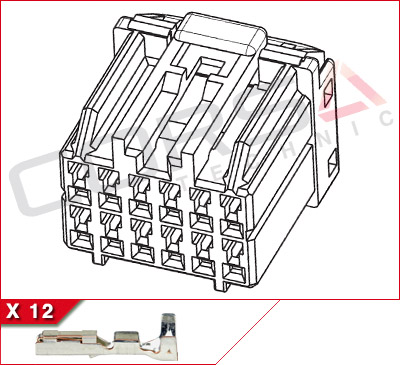

12-Way Kit, 040 size
MLC.HYB-12S-1
12-Way Kit, 040 size
OEM P/N: Grey: 174913-6
MLC.HYB-12S-1  12-Way Kit, 040 size
Kit Contents: Housing, 12x .040 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174913-6
Part Name: HYBRID PLUG HSG 12P GRAY
While this isn't a hybrid connector itself, it is part of the hybrid series
Mating half of connector: 174915-6, 2-178780-6

spacer
General
  • Sealing:Unsealed
  • Number of Ways:12
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:11A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-11129
QtyPrice
1-5$5.62
6-19$5.23
20-49$4.78
50-99$4.50
100+$3.93
Quantity:  Kit

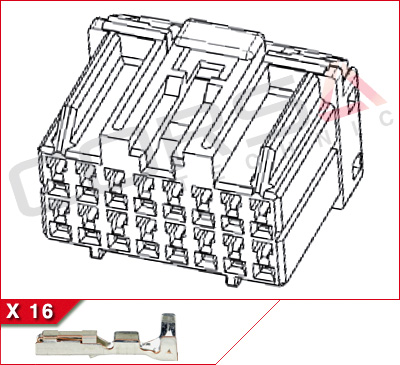

16-Way Kit
MLC.HYB-16S
16-Way Kit
OEM P/N: Grey: 174514-6, other P/N: White: 174514-1, Yellow: 174514-7
MLC.HYB-16S  16-Way Kit
Kit Contents: Housing, 16x .040 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174514-6, other P/N: White: 174514-1, Yellow: 174514-7
Part Name: HYBRID I/O CONN PLUG HSG 16P
While this isn't a hybrid connector itself, it is part of the hybrid series
Mating half of connector: 174915, 175446, 175448, 175521, 177609, 178093, 178764, 178780, 5174915, 5175446, 5175448, 5177609, 5178093, 5178764, 5178780

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
  • Number of Rows:2
  • Pitch:3.0mm
  • Row Spacing:5.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:11A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10764
QtyPrice
1-5$4.89
6-19$4.55
20-49$4.16
50-99$3.91
100+$3.42
Quantity:  Kit

22-Way (16+6) Hybrid Kit
MLC.HYB-22S
22-Way (16+6) Hybrid Kit
OEM P/N: Grey: 174515-6, other P/N: White: 174515-1, Yellow: 174515-7
MLC.HYB-22S  22-Way (16+6) Hybrid Kit
Kit Contents: Housing, 16x .040 socket contacts, 6x .070 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: Grey: 174515-6, other P/N: White: 174515-1, Yellow: 174515-7
Part Name: HYBRID I/O CONN PLUG HSG 22P
Mating half of connector: 174915, 175444, 175521, 177609, 178764, 178780, 179375, 5174915, 5175444, 5177609, 5178764, 5178780, 5179375

spacer
General
  • Sealing:Unsealed
  • Number of Ways:22
  • Contact Size:Mixed
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10765
QtyPrice
1-5$6.08
6-19$5.65
20-49$5.17
50-99$4.86
100+$4.26
Quantity:  Ea

26-Way (16+10) Hybrid Kit
MLC.HYB-26S
26-Way (16+10) Hybrid Kit
OEM P/N: White: 174516-1
Grey: 174516-6
Yellow: 174516-7
MLC.HYB-26S  26-Way (16+10) Hybrid Kit
Kit Contents: Housing, 16x .040 socket contacts, 10x .070 socket contacts

Mfr: OEM Tyco/AMP
Series: Multilock Hybrid Series
OEM P/N: White: 174516-1
Grey: 174516-6
Yellow: 174516-7
Part Name: HYBRID I/O CONN PLUG HSG 26P
Mating half of connector: 178811, 175446, 176242, 179375, 174917, 638010, 175448, 917322, 776189, 176122, 177609, 178764, 174518, 174915, 178780

spacer
General
  • Sealing:Unsealed
  • Number of Ways:26
  • Contact Size:Mixed
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10763
QtyPrice
1-5$9.72
6-19$9.23
20-49$8.75
50-99$8.26
100+$7.78
Quantity:  Kit

Multilock Hybrid 040 Socket Contact
MLC040HL-SKT
Multilock Hybrid 040 Socket Contact
MLC040HL-SKT  Multilock Hybrid 040 Socket Contact

Mfr: Tyco/AMP
Series: Multilock Hybrid Series

Wire SizePlatingStripLoose
MLC040HL-SKT1.3-.5 mm2 (22-20 AWG) wire,
1.1-1.3mm Insulation dia		Tin175094-1N/A
-Gold175094-2N/A
MLC040HL-SKT2.3-.5 mm2 (22-20 AWG) wire,
1.4-2.0mm Insulation dia		Tin173716-1175061-1
-Gold173716-2175061-2
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:11A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Terminal used in Toyota 82998-12310, 82998-12320 (Gold plated) repair wire
QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000+$0.14
Quantity:  Ea

Multilock 070 Socket Contact
MLC070-SKT
Multilock 070 Socket Contact
MLC070-SKT  Multilock 070 Socket Contact

Mfr: Tyco/AMP
Series: Multilock 070 Series, Multilock Hybrid Series, Multilock 070/250 Hybrid, used in Yazaki Multilock 070/187 Hybrid

Part Number
Wire SizeMaterialPlatingStripLoose
-.2-.5 mm2 (24-20 AWG),
1.0-1.5 mm insulation dia		BrassTin175124-1N/A
MLC070-SKT1.2-.3 mm2 (24-22 AWG),
1.4-1.9 mm insulation dia		BrassTin173630-1175026-1
-Gold173630-2175026-2
-Ph. bronzeTin173630-6175026-6
-Gold173630-7175026-7
-.5-1.25 mm2 (20-16 AWG),
1.2-2.2 mm insulation dia		BrassTin175095-1N/A
MLC070-SKT2.5-1.25 mm2 (20-16 AWG),
2.0-2.6 mm insulation dia		BrassTin173631-1175027-1
-Gold173631-2175027-2
-Ph. bronzeTin173631-6175027-6
-Gold173631-7175027-7
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.8mm (.070)
  • Wire Size:0.20 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:19A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford F57B-14474-FA (size 1, tin)
  • Harley Davidson 73191-96
  • Terminal used in Toyota 82998-12190, 82998-12300 (Gold plated) repair wire
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000-2499$0.11
2500+$0.10
Quantity:  Ea
