Sealed 1.0 Series
SLD10-33S
33-Way HousingKit Contents: Housing only, contacts sold separately
Mfr: Tyco/AMP
Series: Sealed 1.0 Series
OEM P/N: 1554461-2
Part Name: 33POS,1.0 SERIES,REC HSG ASSY,SLD
Mating Part: 1554458-2
3D STEP (1554461-2_A1-3d_stp.zip)

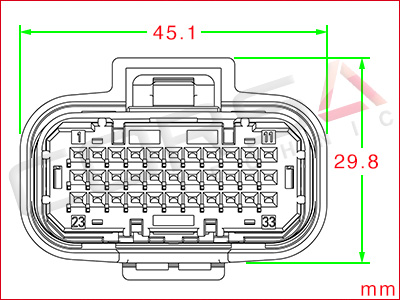

Mfr Drawing (C-1554461_A3.pdf)

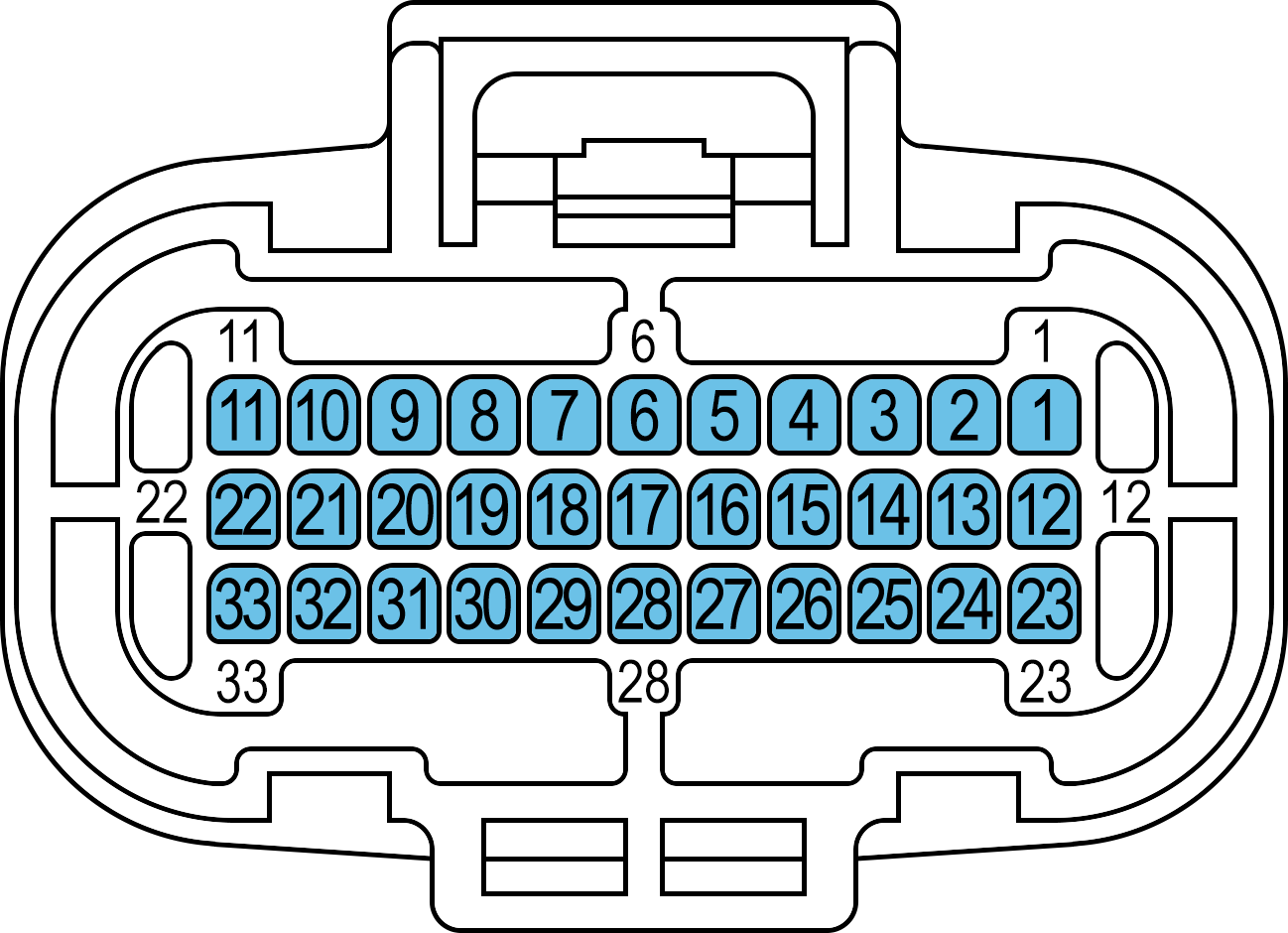

Rearview Pinout (SLD10-33S.png)General
- Sealing:Matte Sealed
- Number of Ways:33
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:3
- Pitch:2.8mm
- Row Spacing:3.3mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SLD10-SKT3

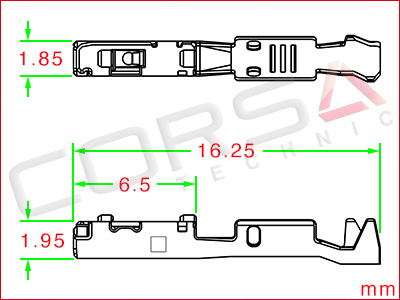

Sealed 1.0 Series Socket ContactMfr: Tyco/AMP
Series: Sealed 1.0 Series
| Wire Size | P/N | |
|---|---|---|
| SLD10-SKT1 | .3-.5 mm2 (22-20 AWG) | 2201289-1 |
| SLD10-SKT2 | .5-.85 mm2 (20-18 AWG) | 1554723-1 |
| SLD10-SKT3 | .75-1.25 mm2 (18-16 AWG) | 1939351-1 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Matte Sealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
