TLC-Series
Display:
TLC-5S
5-Way KitKit Contents: Housing, 5 socket contacts for 24-20 awg wire, 5 seals
Mfr: OEM Yazaki
Series: TLC Series
OEM P/N: 7129-6051
Mating Part: 7228-6051, 7228-6052

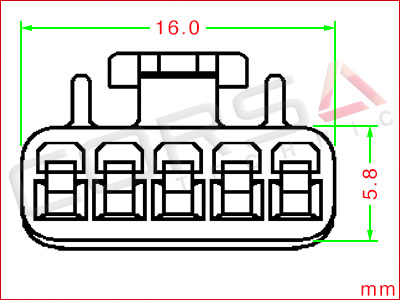

Drawing (7129-6051.pdf)

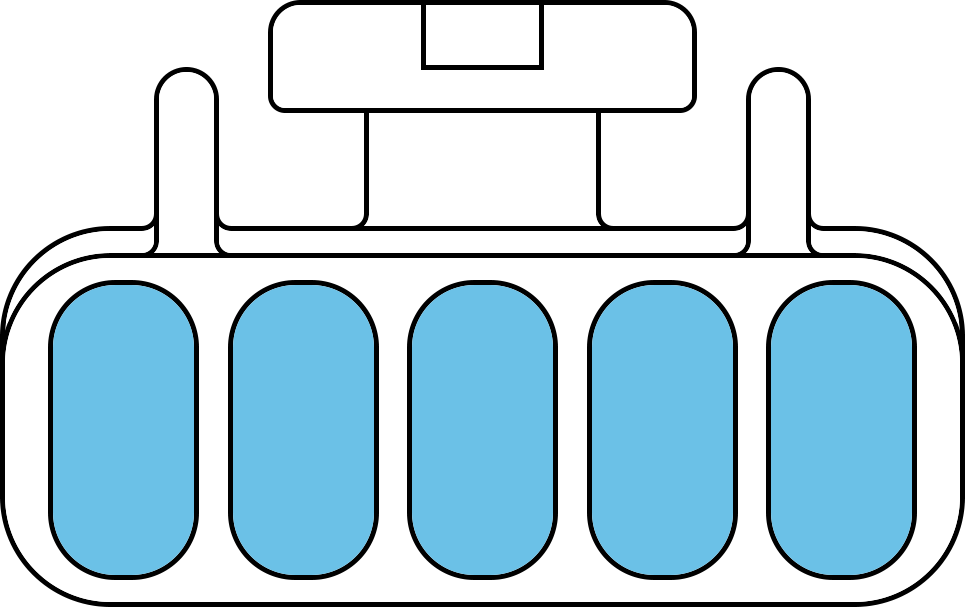

Rearview Pinout (TLC-5S.png)
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.20 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10558
TLC-PIN
TLC Pin Contact
Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7113-2331
Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7113-2331
For .2-.5 mm2 (24-20 AWG) wire.
NOTE: The same terminal is used in sealed and unsealed connectors of the TLC series.
NOTE: The same terminal is used in sealed and unsealed connectors of the TLC series.
General
- Sealing:Mixed
- Contact Size:1.0mm (.040)
- Wire Size:0.20 - 0.50 mm2
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:3A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- KET ST750402-3
- Terminal used in Toyota 82998-12220 (unsealed), 82998-12280 (sealed) repair wire
TLC-SKT
TLC Socket Contact
Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7115-1591
Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7115-1591
For .2-.5 mm2 (24-20 AWG) wire.
NOTE: The same terminal is used in sealed and unsealed connectors of the TLC series.
NOTE: The same terminal is used in sealed and unsealed connectors of the TLC series.
General
- Sealing:Mixed
- Contact Size:1.0mm (.040)
- Wire Size:0.20 - 0.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:3A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-12230 (unsealed), 82998-12290 (sealed) repair wire
TLC-PG
TLC Series Plug
Mfr: OEM Yazaki
Series: TLC Series
OEM P/N: 7157-3622
Mfr: OEM Yazaki
Series: TLC Series
OEM P/N: 7157-3622
General
- Sealing:Single Wire Sealed
- Contact Size:1.0mm (.040)
Mechanical
- Seal Material:NBR
- KET MG680538
- Toyota 90980-09162
TLC-SL
TLC Series Seal
Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7157-3621
Mfr: Aftermarket Yazaki
Series: TLC Series
OEM P/N: 7157-3621
General
- Sealing:Single Wire Sealed
- Contact Size:1.0mm (.040)
- Wire Size:0.20 - 0.50 mm2
Mechanical
- Seal Material:NBR
- KET MG680157
