Home ▹ Connectors ▹ By Manufacturer ▹ Yazaki ▹ PA-Series

PA-Series

1-Way Kit
PA-1P
1-Way Kit
OEM P/N: KET: MG620090
Yazaki: 7118-3110
View Item
PA-1P  1-Way Kit
Kit Contents: Housing, 1 pin contact

Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620090
Yazaki: 7118-3110
Mating Part: PA-1S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10182
QtyPrice (USD)
1-5$0.66
6-19$0.63
20-49$0.59
50-99$0.56
100+$0.53
Quantity:  Kit

1-Way Kit
PA-1S
1-Way Kit
OEM P/N: KET: MG610089
Yazaki: 7119-3110
View Item
PA-1S  1-Way Kit
Kit Contents: Housing, 1 socket contact

Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG610089
Yazaki: 7119-3110
Mating Part: PA-1P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:1
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10183
QtyPrice (USD)
1-5$0.59
6-19$0.56
20-49$0.53
50-99$0.50
100+$0.47
Quantity:  Kit

2-Way Kit
PA-2P
2-Way Kit
OEM P/N: KET: MG620208
Yazaki: 7118-3020
View Item
PA-2P  2-Way Kit
Kit Contents: Housing, 2 pin contacts

Mfr: OEM KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620208
Yazaki: 7118-3020
Mating Part: PA-2S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.83
6-19$1.74
20-49$1.65
50-99$1.56
100+$1.46
Quantity:  Kit

2-Way Kit
PA-2S
2-Way Kit
OEM P/N: KET: MG610207
Yazaki: 7119-3020
View Item
PA-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM KET, Yazaki
Series: PA Series
OEM P/N: KET: MG610207
Yazaki: 7119-3020
Mating Part: PA-2P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$1.79
6-19$1.70
20-49$1.61
50-99$1.52
100+$1.43
Quantity:  Kit

5-Way Kit
PA-5P
5-Way Kit
OEM P/N: KET: MG620211
Yazaki: 7118-3050
View Item
PA-5P  5-Way Kit
Kit Contents: Housing, 5 pin contacts

Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620211
Yazaki: 7118-3050
Mating Part: PA-5S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:5
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:7.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.80
6-19$2.66
20-49$2.52
50-99$2.38
100+$2.24
Quantity:  Kit

5-Way Kit
PA-5S
5-Way Kit
OEM P/N: KET: MG610189
Yazaki: 7119-3050
View Item
PA-5S  5-Way Kit
Kit Contents: Housing, 5 socket contacts

Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG610189
Yazaki: 7119-3050
Mating Part: PA-5P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:5
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:7.0mm
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$2.69
6-19$2.56
20-49$2.42
50-99$2.29
100+$2.15
Quantity:  Kit

7-Way Kit
PA-7P
7-Way Kit
OEM P/N: KET: MG620212
Yazaki: 7118-3070
View Item
PA-7P  7-Way Kit
Kit Contents: Housing, 7 pin contacts

Mfr: Aftermarket KET, Yazaki
Series: PA Series
OEM P/N: KET: MG620212
Yazaki: 7118-3070
Mating Part: PA-7S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:7
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10042
QtyPrice (USD)
1-5$3.22
6-19$3.06
20-49$2.90
50-99$2.74
100+$2.58
Quantity:  Kit

7-Way Kit
PA-7S
7-Way Kit
OEM P/N: KET: MG610203
Yazaki: 7119-3070
View Item
PA-7S  7-Way Kit
Kit Contents: Housing, 7 socket contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: KET: MG610203
Yazaki: 7119-3070
Mating Part: PA-7P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:7
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10043
QtyPrice (USD)
1-5$2.90
6-19$2.75
20-49$2.61
50-99$2.46
100+$2.32
Quantity:  Kit

9-Way Kit
PA-9P
9-Way Kit
OEM P/N: KET: MG620213
Yazaki: 7118-3090
View Item

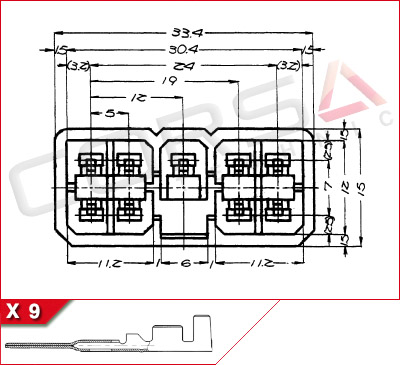

PA-9P  9-Way Kit
Kit Contents: Housing, 9 pin contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: KET: MG620213
Yazaki: 7118-3090
Mating Part: PA-9S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:9
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10044
QtyPrice (USD)
1-5$3.47
6-19$3.30
20-49$3.12
50-99$2.95
100+$2.78
Quantity:  Kit

9-Way Kit
PA-9S
9-Way Kit
OEM P/N: KET: MG610154
Yazaki: 7119-3090
View Item

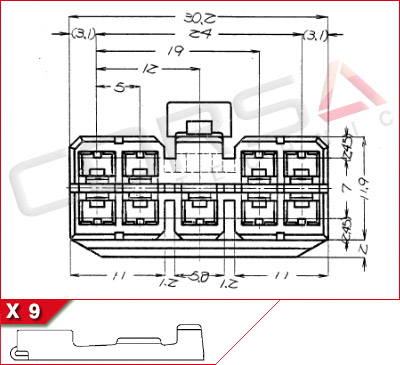

PA-9S  9-Way Kit
Kit Contents: Housing, 9 socket contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: KET: MG610154
Yazaki: 7119-3090
Mating Part: PA-9P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:9
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10045
QtyPrice (USD)
1-5$3.31
6-19$3.14
20-49$2.98
50-99$2.81
100+$2.65
Quantity:  Kit

13-Way Kit
PA-13P
13-Way Kit
OEM P/N: KET: MG620217
Yazaki: 7118-3130
View Item
PA-13P  13-Way Kit
Kit Contents: Housing, 13 pin contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: KET: MG620217
Yazaki: 7118-3130
Mating Part: PA-13S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10032
QtyPrice (USD)
1-5$4.20
6-19$3.99
20-49$3.78
50-99$3.57
100+$3.36
Quantity:  Kit

13-Way Kit
PA-13S
13-Way Kit
OEM P/N: KET: MG610216
Yazaki: 7119-3130
View Item
PA-13S  13-Way Kit
Kit Contents: Housing, 13 socket contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: KET: MG610216
Yazaki: 7119-3130
Mating Part: PA-13P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:13
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Toyota 90980-10033
QtyPrice (USD)
1-5$3.76
6-19$3.57
20-49$3.38
50-99$3.20
100+$3.01
Quantity:  Kit

17-Way Kit
PA-17P
17-Way Kit
OEM P/N: Yazaki: 7118-3170
View Item
PA-17P  17-Way Kit
Kit Contents: Housing, 17 pin contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: Yazaki: 7118-3170
Mating Part: PA-17S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:17
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.09
6-19$4.84
20-49$4.58
50-99$4.33
100+$4.07
Quantity:  Kit

17-Way Kit
PA-17S
17-Way Kit
OEM P/N: 7119-3170
View Item
PA-17S  17-Way Kit
Kit Contents: Housing, 17 socket contacts

Mfr: Aftermarket Yazaki
Series: PA Series
OEM P/N: 7119-3170
Mating Part: PA-17P

spacer
General
  • Sealing:Unsealed
  • Number of Ways:17
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:7.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.26
6-19$5.00
20-49$4.73
50-99$4.47
100+$4.21
Quantity:  Kit

PA Series Pin Contact
PA-PIN
PA Series Pin Contact
View Item
PA-PIN  PA Series Pin Contact

Mfr: Yazaki
Series: PA Series, and used in BS Series

Wire SizePart Number
PA-PIN10.3-.5 mm2 (22-20 AWG)7114-1055
PA-PIN20.85-2.0 mm2 (18-14 AWG)7114-1050
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Terminal used in Toyota 82998-12080 (PIN2) repair wire
QtyPrice (USD)
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500+$0.13
Quantity:  Ea

PA Series Socket Contact
PA-SKT
PA Series Socket Contact
View Item
PA-SKT  PA Series Socket Contact

Mfr: Yazaki
Series: PA Series, and used in BS Series

Wire SizePart Number
PA-SKT10.3-.5 mm2 (22-20 AWG)7116-1055
PA-SKT20.85-2.0 mm2 (18-14 AWG)7116-1050
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:3.0mm (.118)
  • Wire Size:0.20 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Terminal used in Toyota 82998-12090 (SKT2) repair wire
QtyPrice (USD)
1-49$0.20
50-99$0.19
100-249$0.17
250-499$0.16
500-999$0.15
1000+$0.14
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
