91 M-LC Unsealed Series
91MLC-1P-1
1-Way Kit
Kit Contents: Housing, 1 pin contact for 12 awg wire
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7122-6317
Part Name: M01MW-LC
Mating Part: 7123-6317
Kit Contents: Housing, 1 pin contact for 12 awg wire
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7122-6317
Part Name: M01MW-LC
Mating Part: 7123-6317
General
- Sealing:Unsealed
- Number of Ways:1
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
91MLC-2S-1
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6329
Part Name: M02FW-LC
Mating Part: 7122-6329
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6329
Part Name: M02FW-LC
Mating Part: 7122-6329
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
91MLC-4S-2
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6346-30
Part Name: M04FB-LC
Mating Part: 7122-6346-30
Kit Contents: Housing, 4 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6346-30
Part Name: M04FB-LC
Mating Part: 7122-6346-30
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:11.2mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
91MLC-8S-1
8-Way Kit
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6387
Part Name: M08FW-LC
Mating Part: 7122-6387-40, 7122-6080
Kit Contents: Housing, 8 socket contacts
Mfr: OEM Yazaki
Series: 91 M-LC Unsealed
OEM P/N: 7123-6387
Part Name: M08FW-LC
Mating Part: 7122-6387-40, 7122-6080
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:9.0mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
91MLC-PIN3
91 M-LC Unsealed Pin Contact
Mfr: Yazaki
Series: 91 M-LC Unsealed
Mfr: Yazaki
Series: 91 M-LC Unsealed
| Wire Size | Yazaki | |
|---|---|---|
| 91MLC-PIN1 | .3-.5 mm2 (22-20 AWG) | 7114-2882-02 |
| 91MLC-PIN2 | .85-2.0 mm2 (18-14 AWG) | 7114-2883-02 |
| 91MLC-PIN3 | 3.0 mm2 (12 AWG) | 7114-2872-02 |
| Available stock: Aftermarket OEM | ||

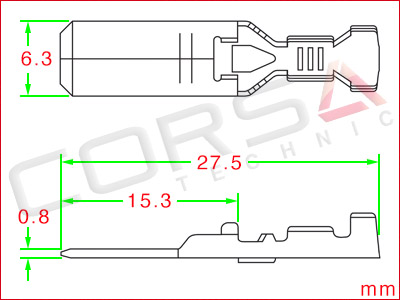

Drawing, size 1-2 (7114-2882.pdf)- Drawing, size 3 (7114-2870.pdf)
-
TE Crimp Data, 22-20awg (C-2150917_B.pdf)
-
TE Crimp Data, 18-14awg (C-2150891_E.pdf)
-
TE Crimp Data, 12awg (C-2150913_C.pdf)
-
Handling Manual (YPES-15-429.pdf)
-
Product Standard (YPES-11-05-129.pdf)
-
Series Catalog - Yazaki (91MLC-CAT.pdf)
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
91MLC-SKT
91 M-LC Unsealed Socket Contact
Mfr: Yazaki
Series: 91 M-LC Unsealed
Mfr: Yazaki
Series: 91 M-LC Unsealed
| Wire Size | Material | Plating | Part Number | |
|---|---|---|---|---|
| 91MLC-SKT1 | .3-.5 mm2 (22-20 AWG) | Brass | Tin | 7116-2990-02 |
| (heavy type) | Copper alloy | Tin | 7116-2927-02 | |
| 91MLC-SKT2 | .85-1.25 mm2 (18-16 AWG) | Brass | Tin | 7116-2991-02 |
| (heavy type) | Copper alloy | Tin | 7116-2928-02 | |
| 91MLC-SKT3 | 2-3 mm2 (14-12 AWG) | Brass | Tin | 7116-2992-02 |
| (heavy type) | Copper alloy | Tin | 7116-2929-02 | |
| Available stock: Aftermarket OEM | ||||
- Drawing (7116-2990-02.pdf)
- Drawing, heavy type (7116-2927-02.pdf)
-
TE Crimp Data, 22-20awg (C-2837130_C1.pdf)
-
TE Crimp Data, 18-16awg (C-2837114_B.pdf)
-
TE Crimp Data, 14-12awg (C-2266805_B.pdf)
-
TE Crimp Data, 14-12awg, heavy type (C-2837143_B.pdf)
-
Handling Manual (YPES-15-429.pdf)
-
Product Standard (YPES-11-05-129.pdf)
-
Series Catalog - Yazaki (91MLC-CAT.pdf)
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
