025II+090II Hybrid Unsealed Series
Display:
025IIU/090IIU-25P
25-Way (21+4) Hybrid Kit
Kit Contents: Housing, 21x 025 pin contacts, 4x 090 pin contacts
Mfr: OEM Yazaki
Series: 025II+090II Hybrid Unsealed
OEM P/N: Gray: 7282-4855-40
Mating Part: 025IIU/090IIU-25S
Kit Contents: Housing, 21x 025 pin contacts, 4x 090 pin contacts
Mfr: OEM Yazaki
Series: 025II+090II Hybrid Unsealed
OEM P/N: Gray: 7282-4855-40
Mating Part: 025IIU/090IIU-25S
Drawing (7282-4855.pdf)General
- Sealing:Unsealed
- Number of Ways:25
- Contact Size:Mixed
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-12413
025IIU/090IIU-25S
25-Way (21+4) Hybrid Kit
Kit Contents: Housing, 21x 025 socket contacts for 22-20awg wire, 4x 090 socket contacts
Mfr: OEM Yazaki
Series: 025II+090II Hybrid Unsealed
OEM P/N: Gray: 7283-4855-40
Mating Part: 025IIU/090IIU-25P
Kit Contents: Housing, 21x 025 socket contacts for 22-20awg wire, 4x 090 socket contacts
Mfr: OEM Yazaki
Series: 025II+090II Hybrid Unsealed
OEM P/N: Gray: 7283-4855-40
Mating Part: 025IIU/090IIU-25P
General
- Sealing:Unsealed
- Number of Ways:25
- Contact Size:Mixed
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:3
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-12414
090IIU-PIN
090II Unsealed Series Pin Contact
Mfr: Sumitomo, Yazaki
Series: TS 090 Unsealed, TS 050+090 Hybrid, TS 090+187 Hybrid, 090II Unsealed Series, 025II+090II Hybrid Unsealed, 090II+187 Hybrid Unsealed, 090II+312 Hybrid Unsealed
Mfr: Sumitomo, Yazaki
Series: TS 090 Unsealed, TS 050+090 Hybrid, TS 090+187 Hybrid, 090II Unsealed Series, 025II+090II Hybrid Unsealed, 090II+187 Hybrid Unsealed, 090II+312 Hybrid Unsealed
| Wire Size | Plating | Sumitomo | Yazaki | |
|---|---|---|---|---|
| - | .22-.35 mm2 (24-22 AWG) | Tin | 8230-4742 | - |
| - | Gold | - | - | |
| 090IIU-PIN1 | .3-.5 mm2 (22-20 AWG) | Tin | 8230-4492 | 7114-4020 |
| - | Gold | 8100-1341 | 7114-4052-08 | |
| 090IIU-PIN2 | .5-1.25 mm2 (20-16 AWG) | Tin | 8230-4502 | 7114-4021 |
| - | Gold | 8100-1342 | 7114-4053-08 | |
| 090IIU-PIN3 | 2.0 mm2 (14 AWG) | Tin | 8230-4512 | 7114-4022 |
| - | Gold | - | - | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:2.3mm (.090)
- Wire Size:0.50 - 2.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Delphi/Aptiv 13627112
- KET ST741101-3, ST740672-3, ST740673-3, ST740674-3
- KUM MT091-61080, MT091-83180
- Terminal used in Toyota 82998-12330, 82998-12350 (Gold plated) repair wire
090IIU-SKT
090II Unsealed Series Socket Contact
Mfr: Sumitomo, Yazaki
Series: TS 090 Unsealed, TS 050+090 Hybrid, TS 090+187 Hybrid, 090II Unsealed Series, 025II+090II Hybrid Unsealed, 090II+187 Hybrid Unsealed, 090II+312 Hybrid Unsealed
Mfr: Sumitomo, Yazaki
Series: TS 090 Unsealed, TS 050+090 Hybrid, TS 090+187 Hybrid, 090II Unsealed Series, 025II+090II Hybrid Unsealed, 090II+187 Hybrid Unsealed, 090II+312 Hybrid Unsealed
| Wire Size | Plating | Sumitomo | Yazaki | |
|---|---|---|---|---|
| - | .22-.35 mm2 (24-22 AWG) | Tin | 8240-0029 | - |
| - | Gold | - | - | |
| 090IIU-SKT1 | .3-.5 mm2 (22-20 AWG) | Tin | 8240-4882 | 7116-4020 |
| - | Gold | 8100-1346 | 7116-4052-08 | |
| 090IIU-SKT2 | .5-1.25 mm2 (20-16 AWG) | Tin | 8240-4892 | 7116-4021 |
| - | Gold | 8100-1347 | 7116-4053-08 | |
| 090IIU-SKT3 | 2.0 mm2 (14 AWG) | Tin | 8240-4942 | 7116-4022 |
| - | Gold | - | - | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Unsealed
- Contact Size:2.3mm (.090)
- Wire Size:0.50 - 2.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Delphi/Aptiv 12110740, 12129960, 12129961
- KET ST731100-3, ST730675-3, ST730676-3, ST730677-3
- KUM MT095-83080, MT095-83180, MT095-83280
- Terminal used in Mopar 68080556AA (18 &14 awg Tin) terminal repair kit
- Terminal used in Toyota 82998-12340, 82998-12360 (Gold plated) repair wire

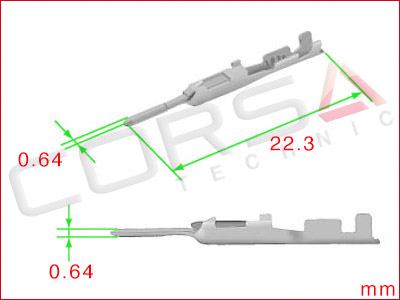

TS025U-PIN
TS 025 Unsealed Pin Contact
Mfr: Sumitomo
Series: TS 025 Unsealed, used in Tokai Rika 0.64II (025II) Unsealed, and Yazaki 025II+090II Hybrid Unsealed
Mfr: Sumitomo
Series: TS 025 Unsealed, used in Tokai Rika 0.64II (025II) Unsealed, and Yazaki 025II+090II Hybrid Unsealed
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| TS025U-PIN1 | .13 mm2 (26 AWG) .85-.95mm insulation dia. | Tin | 8230-4878 |
| - | Gold | 8230-5136 | |
| TS025U-PIN2 | .22-.35 mm2 (24-22 AWG) .95-1.2mm insulation dia. | Tin | 8100-3622 |
| - | Gold | 8100-3626 | |
| TS025U-PIN3 | .3-.5 mm2 (22-20 AWG) 1.1-1.7mm insulation dia. | Tin | 8100-3623 |
| - | Gold | 8100-3627 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7A
- Voltage Rating:14V DC
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-24270 (PIN3), 82998-24280 (Gold plated, PIN3-Au) repair wire
TS025U-SKT3
TS 025 Unsealed Socket Contact
Mfr: Sumitomo
Series: TS 025 Unsealed, used in Tokai Rika 0.64II (025II) Unsealed, and Yazaki 025II+090II Hybrid Unsealed
Mfr: Sumitomo
Series: TS 025 Unsealed, used in Tokai Rika 0.64II (025II) Unsealed, and Yazaki 025II+090II Hybrid Unsealed
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| TS025U-SKT1 | .13 mm2 (26 AWG) .85-.95mm insulation dia. | Tin | 8240-0182 |
| - | Gold | 8240-0338 | |
| TS025U-SKT2 | .22-.35 mm2 (24-22 AWG) .95-1.2mm insulation dia. | Tin | 8100-3624 |
| - | Gold | 8100-3628 | |
| TS025U-SKT3 | .3-.5 mm2 (22-20 AWG) 1.1-1.7mm insulation dia. | Tin | 8100-3625 |
| - | Gold | 8100-3629 | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:0.64mm (.025)
- Wire Size:0.13 - 0.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7A
- Voltage Rating:14V DC
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Terminal used in Toyota 82998-24290 (SKT3), 82998-24300 (Gold plated, SKT3-Au) repair wire
- Toyota 90980-09895
TOOL-CDIE54
Rennsteig PEW 12 Die Set for Sumitomo TS 025 Unsealed Terminals
Kit Contents: Crimp die set, locator, wire stop
OEM P/N: 624 1685 3 012 RT
Kit Contents: Crimp die set, locator, wire stop
OEM P/N: 624 1685 3 012 RT
| Compatibility | ||||
|---|---|---|---|---|
| P/N | Wire Size | Plating | Sumitomo P/N | |
| ✓ | TS025U-PIN1 | .13 mm2 (26 AWG) | Tin | 8230-4878 |
| Gold | 8230-5136 | |||
| ✓ | TS025U-PIN2 | .22-.35 mm2 (24-22 AWG) | Tin | 8100-3622 |
| Gold | 8100-3626 | |||
| ✓ | TS025U-PIN3 | .3-.5 mm2 (22-20 AWG) | Tin | 8100-3623 |
| Gold | 8100-3627 | |||
| ✓ | TS025U-SKT1 | .13 mm2 (26 AWG) | Tin | 8240-0182 |
| Gold | 8240-0338 | |||
| ✓ | TS025U-SKT2 | .22-.35 mm2 (24-22 AWG) | Tin | 8100-3624 |
| Gold | 8100-3628 | |||
| ✓ | TS025U-SKT3 | .3-.5 mm2 (22-20 AWG) | Tin | 8100-3625 |
| Gold | 8100-3629 | |||
TOOL-CDIE55
Rennsteig PEW 12 Die Set for Sumitomo TS090, Yazaki 090II Unsealed Socket Terminals
Kit Contents: Crimp die set, locator
OEM P/N: 624 1619 3 01 RT
NOTE: For 20 AWG wire only
Kit Contents: Crimp die set, locator
OEM P/N: 624 1619 3 01 RT
| Compatibility | |||||
|---|---|---|---|---|---|
| P/N | Wire Size | Plating | Sumitomo P/N | Yazaki P/N | |
| ✗ | - | .22-.35 mm2 (24-22 AWG) | Tin | 8240-0029 | - |
| Gold | - | - | |||
| ✓ | 090IIU-SKT1 | .3-.5 mm2 (22-20 AWG) | Tin | 8240-4882 | 7116-4020 |
| Gold | 8100-1346 | 7116-4052-08 | |||
| ✓ | 090IIU-SKT2 | .5-1.25 mm2 (20-16 AWG) | Tin | 8240-4892 | 7116-4021 |
| Gold | 8100-1347 | 7116-4053-08 | |||
| ✗ | 090IIU-SKT3 | 2.0 mm2 (14 AWG) | Tin | 8240-4942 | 7116-4022 |
| Gold | - | - | |||
