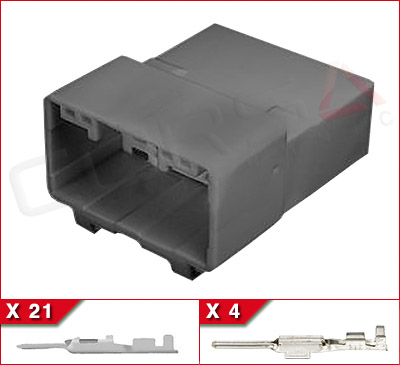

new item icon 025IIU/090IIU-25P
25-Way (21+4) Hybrid Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents: Housing, 21x 025 pin contacts, 4x 090 pin contacts
QtyPrice (USD)
1-5$6.52
6-19$6.19
20-49$5.87
50-99$5.54
100+$5.22
Quantity:  Kit

Mfr:OEM Yazaki
Series:025II+090II Hybrid Unsealed
OEM P/N:Gray: 7282-4855-40
Mating Part:025IIU/090IIU-25S


Documents

Specifications
General
  • Sealing:Unsealed
  • Number of Ways:25
  • Contact Size:Mixed
  • Wire Size:0.22 - 2.00 mm2
  • Number of Rows:3
  • Pitch:Multiple
  • Row Spacing:Multiple
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.


Cross Reference List
  • Toyota 90980-12413
