EPAS - Electric Power Steering
YESC.95-2S
2-Way KitKit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: YESC KAIZEN 9.5 Sealed
OEM P/N: 7283-3214-30 w/o CPA (IN STOCK)
7283-3215-30 w/CPA
Mating Part: 7282-3214-30, 7286-1076-30

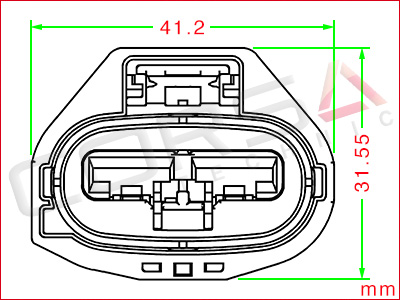

Mfr Drawing (7283-3214-30.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:9.5mm (.375)
- Wire Size:0.85 - 8.00 mm2
- Number of Rows:1
- Pitch:14.0mm

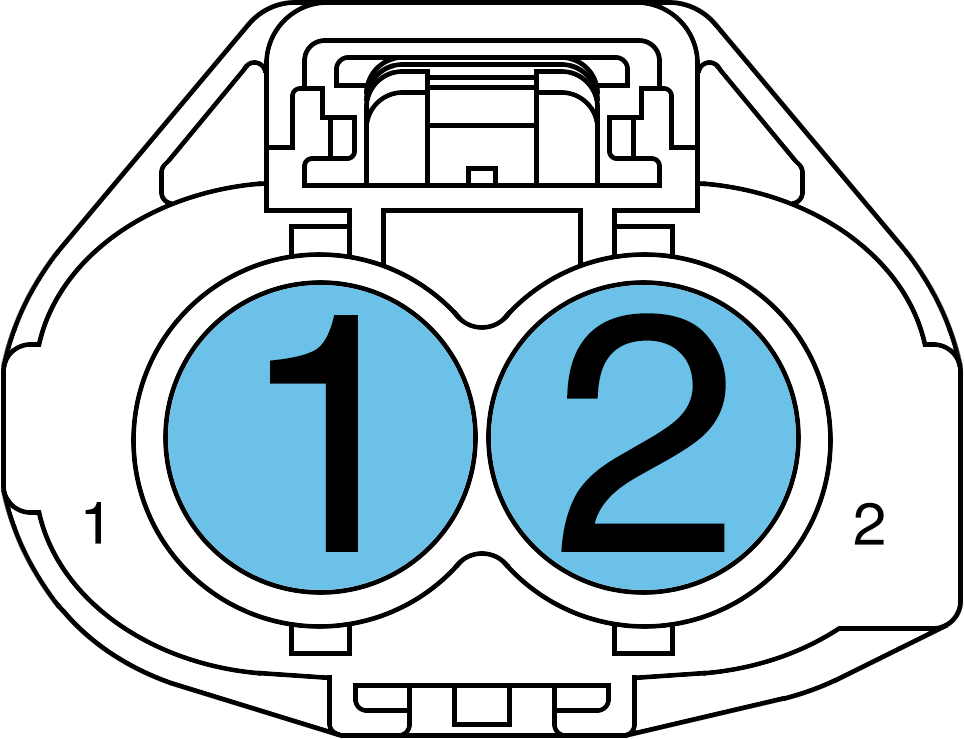

- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
