Knock Sensor
DMS-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-18 AWG wire, 2 seals for 1.6-1.8mm O.D. wire, rear TPA
Mfr: Yazaki
Series: DMS Series
OEM P/N: 7223-7826-30
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts for 20-18 AWG wire, 2 seals for 1.6-1.8mm O.D. wire, rear TPA
Mfr: Yazaki
Series: DMS Series
OEM P/N: 7223-7826-30
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford 3U2Z-14S411-EGA, WPT-244 (Tin plated terminals) pigtail connector
- Mopar 05013946AA repair kit connector
DPA-1S
1-Way Kit
Kit Contents: Housing, 1 socket contact, rear seal
Mfr: Denso
OEM P/N: 570040370
Mating Part: N/A, device only
Kit Contents: Housing, 1 socket contact, rear seal
Mfr: Denso
OEM P/N: 570040370
Mating Part: N/A, device only
Informational listing only. This connector is not available, but uses a terminal that is stocked and available to repin an existing connector. Uses PA-SKT terminal listed in related items.
General
- Sealing:Matte Sealed
- Number of Ways:1
- Contact Size:3.0mm (.118)
- Wire Size:0.20 - 2.00 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-10197
- Yazaki 7119-3410
HX090-1S
1-Way Kit
Kit Contents: Housing, 1 socket contact, 1 seal, front lock
Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0591
Mating Part: 6181-0803
Kit Contents: Housing, 1 socket contact, 1 seal, front lock
Mfr: OEM Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0591
Mating Part: 6181-0803
-
3D STEP (6189-0591.zip) - See related terminal for crimp specs
-
Series Catalog (HX090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:1
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

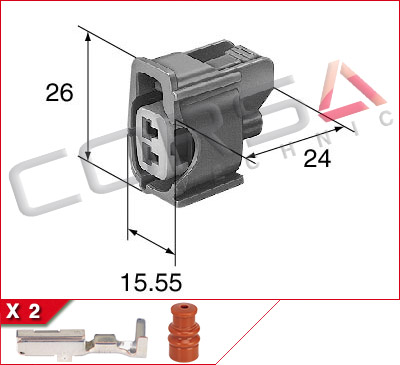

TS090-2S-8
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0611 (In stock)
Black: 6189-0819
Brown: 6189-0711
Part Name: 11875W9A02F-GR
Mating Part: TS090-2P-8
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0611 (In stock)
Black: 6189-0819
Brown: 6189-0711
Part Name: 11875W9A02F-GR
Mating Part: TS090-2P-8
-
3D STEP (6189-0611.zip)
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Ford CU2Z-14S411-UA, WPT-1277 (Tin greased terminals) pigtail connector
- Toyota 90980-11875
