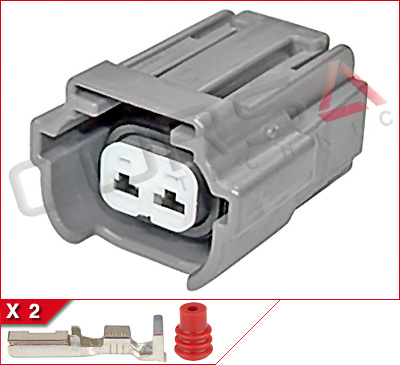

Fuel Injection
DL090-2S-2
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0043 w/o bottom tabs (see p/n: 6195-0041 for type with injector anti-rotation tabs on bottom)
Part Name: W-DL09INJ2AY-GR
Mating Part: DL090-2P-2
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: DL 090 Sealed Series
OEM P/N: 6195-0043 w/o bottom tabs (see p/n: 6195-0041 for type with injector anti-rotation tabs on bottom)
Part Name: W-DL09INJ2AY-GR
Mating Part: DL090-2P-2
-
3D STEP (6195-0043.zip) - See related terminal for crimp specs
-
Series Catalog (DL090-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:NBR
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
DMS-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts for 20-18 AWG wire, 2 seals for 1.6-1.8mm O.D. wire, rear TPA
Mfr: Yazaki
Series: DMS Series
OEM P/N: 7223-7826-30
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts for 20-18 AWG wire, 2 seals for 1.6-1.8mm O.D. wire, rear TPA
Mfr: Yazaki
Series: DMS Series
OEM P/N: 7223-7826-30
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford 3U2Z-14S411-EGA, WPT-244 (Tin plated terminals) pigtail connector
- Mopar 05013946AA repair kit connector

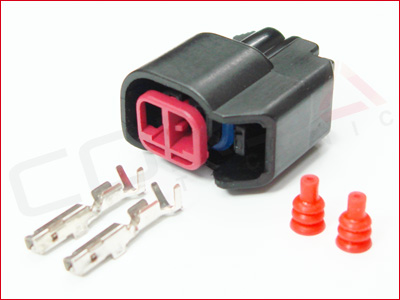

EPC15-2S-2
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-2157-000
Keying: A
Mating Part: EPC15-2P-2-CLIP
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-2157-000
Keying: A
Mating Part: EPC15-2P-2-CLIP
-
Drawing (XW43-14A464-AAA.PDF)
- See related terminal for crimp specs
-
Series Catalog (EPC15-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPE/PA+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- EV6, EV14 Uscar injector connector
- Ford 6U2Z-14S411-GA, WPT-871 (Gold plated terminals) pigtail connector
- Ford XW43-14A464-AAA (Black, w/o CPA, E-2157-000)
- Ford 97BG-14A464-SBA (Yellow, w/o CPA, E-2157-002)
- Ford 98AG-14A464-SBA (Gray, w/o CPA, E-2157-003)
EPC15-2S-5
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-3550
Keying: A
Mating Part: EPC15-2P-2-CLIP
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM EPC
Series: 1.5mm Sealed Series
OEM P/N: E-3550
Keying: A
Mating Part: EPC15-2P-2-CLIP
- See related terminal for crimp specs
-
Series Catalog (EPC15-CAT.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PPE/PA+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford XR3T-14A464-AA
GT150-2S-2
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: Black: 15497399
Gray: 15419715
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Delphi
Series: GT-150 Sealed Device
OEM P/N: Black: 15497399
Gray: 15419715
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:Yes, separate item
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 72098-06 (gray)
- Maserati 673004824 repair kit connector
- Mopar 68052577AA repair kit connector
HX040.JC-2P
2-Way Kit
Kit Contents: Housing, 2 pin contacts for 22-20 AWG wire, rear wire seal and retainer
Mfr: Aftermarket, Sumitomo does not make an actual part
Series: HX 040 Sealed Joint Connector Series
Mating Part: HX040.JC-2S
Kit Contents: Housing, 2 pin contacts for 22-20 AWG wire, rear wire seal and retainer
Mfr: Aftermarket, Sumitomo does not make an actual part
Series: HX 040 Sealed Joint Connector Series
Mating Part: HX040.JC-2S
NOTE: Intended for wire with an insulation diameter of 1.0-1.5 mm.
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hayabusa fuel injector (Gen II, 2008>)
- Various KTM fuel injector
HX040.JC-2S
2-Way Kit
Kit Contents: Housing, 2 socket contacts, TPA lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6904
Part Name: HX4TW-INJ2FAY-B
Mating Part: HX040.JC-2P
Kit Contents: Housing, 2 socket contacts, TPA lock
Mfr: OEM Sumitomo
Series: HX 040 Sealed Joint Connector Series
OEM P/N: 6189-6904
Part Name: HX4TW-INJ2FAY-B
Mating Part: HX040.JC-2P
NOTE: Intended for wire with an insulation diameter of 1.4-1.9 mm.
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:1
- Pitch:2.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Hayabusa fuel injector (Gen II, 2008>)
- Various KTM fuel injector
- KTM 000700000DQ

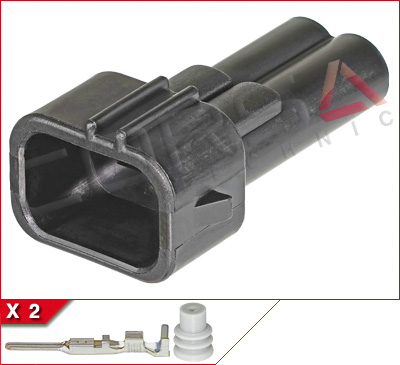

HX090-2P-3
2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals
Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 090 Sealed Series
Mating Part: HX090-2S-3
Kit Contents: Housing, 2 pin contacts, 2 seals
Mfr: Aftermarket, Sumitomo does not make an actual part.
Series: HX 090 Sealed Series
Mating Part: HX090-2S-3
- See related terminal for crimp specs
-
Series Catalog (HX090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- NH-1 Honda injector connector
- Used on many Honda injectors; motorcycle and cars
- Suzuki GSXR injector connector

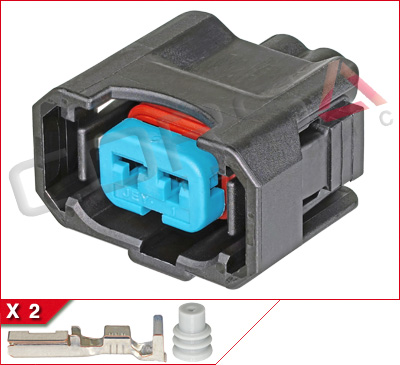

HX090-2S-3
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock
Mfr: Aftermarket Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0553
Mating Part: HX090-2P-3
Kit Contents: Housing, 2 socket contacts, 2 seals, front lock
Mfr: Aftermarket Sumitomo
Series: HX 090 Sealed Series
OEM P/N: 6189-0553
Mating Part: HX090-2P-3
- See related terminal for crimp specs
-
Series Catalog (HX090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- NH-1 Honda injector connector
- Used on many Honda injectors; motorcycle and cars
- Suzuki GSXR injector connector
- KTM 000700000CL
KOM4-2S-2
2-Way Kit, Code 2
Kit Contents: Housing, 2 socket contacts for 20-18 AWG wire, 2 seals
Mfr: OEM Bosch
Series: Kompakt 4
OEM P/N: 1 928 405 527 w/CPA, ss: 1 928 405 715 (IN STOCK)
1 928 405 530 w/o CPA
Code: 2
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts for 20-18 AWG wire, 2 seals
Mfr: OEM Bosch
Series: Kompakt 4
OEM P/N: 1 928 405 527 w/CPA, ss: 1 928 405 715 (IN STOCK)
1 928 405 530 w/o CPA
Code: 2
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:12A
- Voltage Rating:42V (DC)
Environmental
- Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP280.1-2S-1
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 280.1 Pull to Seat, Sealed
OEM P/N: 12129142 w/Gray seal for 2.0-2.66 mm dia. wire insulation (IN STOCK)
12129140 w/Purple seal for 1.65-2.15 mm dia. wire insulation
12110179 w/Red seal for 1.47-1.85 mm dia. wire insulation
Kit Contents: Housing, 2 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 280.1 Pull to Seat, Sealed
OEM P/N: 12129142 w/Gray seal for 2.0-2.66 mm dia. wire insulation (IN STOCK)
12129140 w/Purple seal for 1.65-2.15 mm dia. wire insulation
12110179 w/Red seal for 1.47-1.85 mm dia. wire insulation
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Harley Davidson 72244-95
MT-2P-4
2-Way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals
Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
Mating Part: Compatible with MT-2S-3, MT-2S-4
Kit Contents: Housing, 2 pin contacts, 2 seals
Mfr: Aftermarket Sumitomo
Series: MT Sealed Series
Mating Part: Compatible with MT-2S-3, MT-2S-4
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nippon Denso injector connector
- Honda CBR600RR, CBR1000RR injectors
- Many Subaru and Toyota
MT-2S-3
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0035 Gray
6189-0063 Black
Part Name: 09INJ2FAY
Mating Part: Not available, but MT-2P-4 is compatible
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0035 Gray
6189-0063 Black
Part Name: 09INJ2FAY
Mating Part: Not available, but MT-2P-4 is compatible
Related: Finger grip tab version (for easier connector removal), MT-2S-5
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MT-2S-4
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: Gray: 6189-0039
Brown: 6189-0040
Mating Part: Not available, but MT-2P-4 is compatible
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: Gray: 6189-0039
Brown: 6189-0040
Mating Part: Not available, but MT-2P-4 is compatible
Related: Finger grip tab version (for easier connector removal), MT-2S-6
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nippon Denso injector connector
- Honda CBR600RR, CBR1000RR injectors
- Many Subaru and Toyota
MT-2S-5
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0056
Mating Part: Not available, but MT-2P-4 is compatible
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0056
Mating Part: Not available, but MT-2P-4 is compatible
Related: Non-finger grip tab version, MT-2S-3
Obsolete per Sumitomo. Suggested alternative is TS090-2S-7
Obsolete per Sumitomo. Suggested alternative is TS090-2S-7
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nippon Denso injector connector
- Toyota 90980-10702
MT-2S-6
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0060
Mating Part: Not available, but MT-2P-4 is compatible
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: MT Sealed Series
OEM P/N: 6189-0060
Mating Part: Not available, but MT-2P-4 is compatible
Related: Non-finger grip tab version, MT-2S-4
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.70 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:22A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Nippon Denso injector connector
TRAPEZ-2S-1
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Bosch
Series: TRAPEZ
OEM P/N: 1 928 499 372 (1928499372)
Mating Part: N/A, Device only
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Bosch
Series: TRAPEZ
OEM P/N: 1 928 499 372 (1928499372)
Mating Part: N/A, Device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.2mm (.047)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:42V (DC)
Environmental
- Temp Range[2]:-40 - 150 °C
- Protection Rating:IP X9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

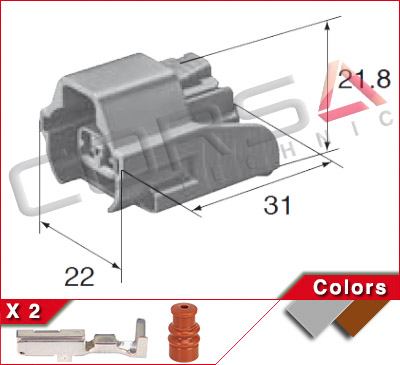

TS090-2S-6
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0573 (In Stock)
Natural: 6189-0600
Dark gray: 6189-0571
Blue: 6189-0574
Brown: 6189-0572 (In Stock)
Green: 6189-0669
Part Name: 11153W9A02F
Mating Part: N/A
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0573 (In Stock)
Natural: 6189-0600
Dark gray: 6189-0571
Blue: 6189-0574
Brown: 6189-0572 (In Stock)
Green: 6189-0669
Part Name: 11153W9A02F
Mating Part: N/A
Alternative to MT-2S-6
-
3D STEP (6189-0573.zip)
-
Drawing (6189-0573.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-11153

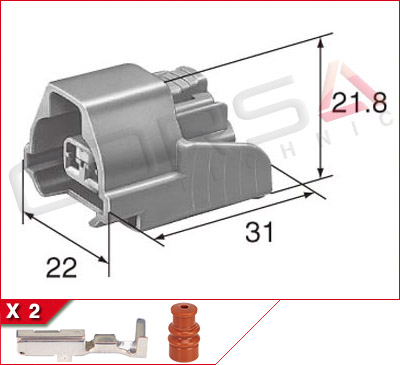

TS090-2S-7
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0566 (In stock)
Black: 6189-0568
Dark gray: 6189-0569
Blue: 6189-0570
Brown: 6189-0567
Part Name: 11154W9A02F
Mating Part: N/A
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Sumitomo
Series: TS 090 Sealed Series
OEM P/N: Light gray: 6189-0566 (In stock)
Black: 6189-0568
Dark gray: 6189-0569
Blue: 6189-0570
Brown: 6189-0567
Part Name: 11154W9A02F
Mating Part: N/A
Alternative to MT-2S-5
-
3D STEP (6189-0566.zip)
-
Drawing (6189-0566.pdf)
- See related terminal for crimp specs
-
Series Catalog (TS090-CAT_4-2024.pdf)
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
- Toyota 90980-11154
YESC.15-2S-6
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7283-6430-30
Mating Part: N/A, device only
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 1.5 System Sealed
OEM P/N: 7283-6430-30
Mating Part: N/A, device only
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:15A
Environmental
- Temp Range[2]:-40 - 145 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Mopar 05161919AB repair kit connector

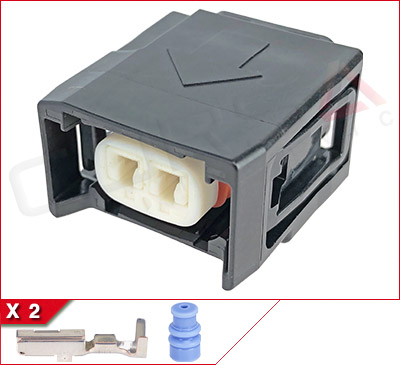

090II-2S-21
2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7287-1495-30
Part Name: 12747W9A02F-BY
Mating Part: N/A
Kit Contents: Housing, 2 socket contacts, 2 seals
Mfr: OEM Yazaki
Series: 090II Sealed Series
OEM P/N: 7287-1495-30
Part Name: 12747W9A02F-BY
Mating Part: N/A
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Toyota 90980-12747
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
