UW-2S2-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

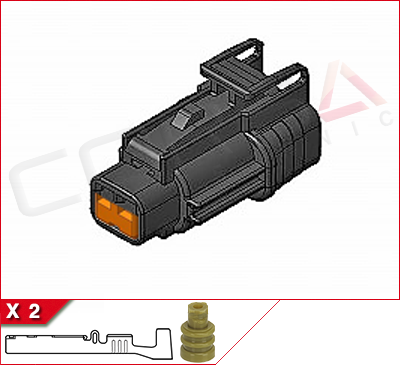

Kit Contents:
Housing, 2 socket contacts for 22-20 awg wire, 2 seals, TPA lock
Mfr:OEM Furukawa
Series:UW Series
OEM P/N:PK315-02020 (alt p/n: S120835, FT0932)
Part Name:UW02F-B
Mating Part:N/A, device only
Documents
Series Catalog (UW-CAT.pdf)Specifications
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 0.50 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:5.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
Application List
- Kubota skid steer AC connector
- Kubota MX4800, L4701 PTO solenoid connector
