DEW-6S
6-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

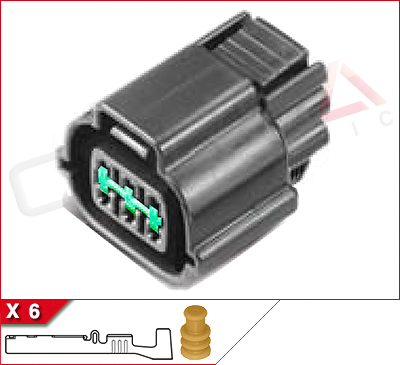

Kit Contents:
Housing, 6 socket contacts, 6 seals, TPA lock
Mfr:OEM Furukawa
Series:DEW Series
OEM P/N:PB535-06027
Part Name:DEW06F-B
Mating Part:PB531-06020, DEW06M-B
Documents
Rearview Pinout (DEW-6S.png)
Series Catalog (DEW-CAT.pdf)Specifications
General
- Sealing:Single Wire Sealed
- Number of Ways:6
- Contact Size:1.2mm (.047)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:2
- Pitch:4.5mm
- Row Spacing:6.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:5.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
