R5A1

WIRE-26AWG

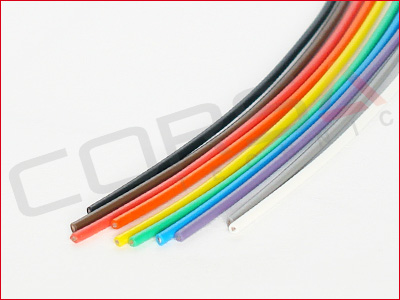

26 AWG MIL-W-22759/32-26 Wire
QtyPrice
1-99$0.24
100-249$0.20
250-499$0.17
500+$0.13
Quantity:  Ft

Also known as SPEC 55, or 55A wire, which is the marketing name used by TE for SAE AS22759/32 wire.
SPECS:
  • .125 mm2 (26 AWG) (.15 mm2 calculated)
  • 19/38 stranding
  • Nom. O.D. 0.81 mm (0.032 in)
  • Tin plated copper
  • Cross-linked modified Tefzel insulation (XLETFE)
  • 3.6A current rating*
  • 600 V voltage rating
  • -65° to +150° C temperature rating
* Current rating based on continuous duty, 60°C ambient temp, .5 bundle derating, 10k ft altitude derating. What does this mean?
