SICMA 1.5 Mini-Sealed
SICMA15-4P-2
4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: Aftermarket, FCI does not make an actual part. This is a custom part that uses Delphi Metri-Pack 150 pins and seals.
Series: SICMA 1.5 Mini-Sealed
Mating Part: 15369055
Kit Contents: Housing, 4 pin contacts, 4 seals
Mfr: Aftermarket, FCI does not make an actual part. This is a custom part that uses Delphi Metri-Pack 150 pins and seals.
Series: SICMA 1.5 Mini-Sealed
Mating Part: 15369055
SICMA15.CS-3S-2
3-Way Kit
Kit Contents: Housing, 3 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
OEM P/N: 211PC032S2081 (10866570)
Mating Part: N/A, device only
Kit Contents: Housing, 3 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
OEM P/N: 211PC032S2081 (10866570)
Mating Part: N/A, device only
-
3D STEP (10866570.zip) -
Mfr Drawing (PCC0803369_A.pdf) - See related terminal for crimp specs
-
Series Catalog (SICMA-MiniSealed-CAT.pdf)
General
- Sealing:Matte Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:1
- Pitch:3.33mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:26A
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP68, IPx9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Renault 8200399949
- Sumitomo 1310-1534
SICMA15.NM-2S-0
2-Way Kit
Kit Contents: Housing, 2 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
OEM P/N: 211PC022S0149 (10820158)
Mating Part: 211PL022S0049, 10787262
Kit Contents: Housing, 2 socket contacts
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
OEM P/N: 211PC022S0149 (10820158)
Mating Part: 211PL022S0049, 10787262
-
3D STEP (10820158.zip)
-
Mfr Drawing (211FT0525_B.pdf)
- See related terminal for crimp specs
-
Series Catalog (SICMA-MiniSealed-CAT.pdf)
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.22 - 2.00 mm2
- Number of Rows:1
- Pitch:3.33mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:26A
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP68, IPx9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Lear 3216735S7
- Sumitomo 1310-1504
- Yazaki 7283-3818-30
SICMA15-SKT2
Sicma2 1.5 Series Socket Contact
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
| Wire Size | Plating | Part Number (Aptiv p/n) | |
|---|---|---|---|
| SICMA15-SKT1 | .35-.75 mm2 (22-20 AWG) | Tin | 211CC2S1120 (10738188) |
| - | Gold | 211CC2S1230 (10738192) | |
| SICMA15-SKT2 | 1-2 mm2 (18-14 AWG) | Tin | 211CC2S2120 (10726212) |
| - | Gold | 211CC2S2230 (10757258) | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Mixed
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 2.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:26A
Environmental
- Temp Range[2]:-40 - 155 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
SICMA15P-SKT
Sicma3+ Clean Body 1.5 Series Socket Contact
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
| Wire Size | Plating | Part Number (Aptiv p/n) | |
|---|---|---|---|
| - | .22 mm2 (24 AWG) | Tin | 211CC2S0160P (13625048) |
| - | Gold | 211CC2S0460P | |
| SICMA15P-SKT1 | .35-.70 mm2 (22-20 AWG) | Tin | 211CC2S1160P (10863984) |
| - | Gold | 211CC2S1460P (13764604) | |
| SICMA15-SKT2 | .75-1.30 mm2 (18-16 AWG) | Tin | 211CC2S4160P (10865182) |
| - | Gold | 211CC2S4460P (33500701) | |
| SICMA15-SKT3 | 1.35-2.0 mm2 (14 AWG) | Tin | 211CC2S2160P (10863985) |
| - | Gold | 211CC2S2460P (13764602) | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Mixed
- Contact Size:1.5mm (.060)
- Wire Size:0.22 - 2.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:26A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Lear 3202521B5 (SKT1), 3202536R3 (SKT2), 3202521C3 (SKT3)
- Sumitomo 1400-4883 (SKT1), 1400-5441 (SKT2), 1400-4884 (SKT3)
- Volvo 25371115 (SKT1)
- Yazaki 7116-6955-02 (SKT1), 7116-6957-02 (SKT2), 7116-6958-02 (SKT3)

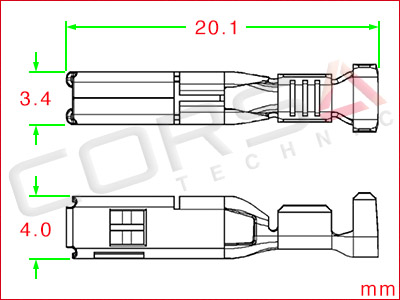

SICMA28-SKT3
Sicma3 Clean Body 2.8 Series Socket Contact
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
| Wire Size | Plating | Part Number (Aptiv p/n) | |
|---|---|---|---|
| SICMA28-SKT1 | .35-.70 mm2 (22-20 AWG) | Tin | 211CC3S1160 (10781041) |
| - | Gold | 211CC3S1460 (13567906) | |
| SICMA28-SKT2 | .75-1.30 mm2 (18-16 AWG) | Tin | 211CC3S4160 (15522621) |
| - | Gold | 211CC3S4460 (33510894) | |
| SICMA28-SKT3 | 1.35-2.5 mm2 (14 AWG) | Tin | 211CC3S2160 (10726549) |
| - | Gold | 211CC3S2460 (33501949) | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Mixed
- Contact Size:2.8mm (.110)
- Wire Size:0.35 - 2.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:26A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
