APEX 2.8 + 6.3 Hybrid
APEX.28/63-7S
7-Way Kit for trailer tow harness
Kit Contents: Housing, 6x 2.8 socket contacts and seals, 1x 6.3 socket contact and seal
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
Mating Part: 9U5T-14A624-MAC, XL3T-14A624-BB, 8U5T-14A624-AB, FU5T-14A624-GA
Kit Contents: Housing, 6x 2.8 socket contacts and seals, 1x 6.3 socket contact and seal
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
Mating Part: 9U5T-14A624-MAC, XL3T-14A624-BB, 8U5T-14A624-AB, FU5T-14A624-GA
3D STEP (33362479.zip)
Mfr Drawing (33363699_01.pdf)General
- Sealing:Single Wire Sealed
- Number of Ways:7
- Contact Size:Mixed
- Wire Size:0.50 - 6.00 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes
Electrical
- Current Rating[1]:55A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford 8U5T-14A464-AAB, ss: 8U5T-14A464-AAA
- Ford 8U5T-14A464-FBB, ss: 8U5T-14A464-FBA
- Ford 8U5T-14A464-GBB, ss: 8U5T-14A464-GBA
- Ford 8U5T-14A464-JBB, ss: 8U5T-14A464-JBA
- Ford 3U2Z-14S411-JXB, WPT-975 (Tin plated terminals) pigtail connector
APEX.28SWS-SKT
APEX 2.8 Single Wire Sealing Socket Contact
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Single Wire Sealing Series, APEX 2.8 + 6.3 Hybrid
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Single Wire Sealing Series, APEX 2.8 + 6.3 Hybrid
| Wire Size | Plating | Part Number (Aptiv p/n) | |
|---|---|---|---|
| APEX.28SWS-SKT1 | .5-.85 mm2 (20-18 AWG) | Tin | 54001807 (10810375) |
| - | Gold | 54001811 (13948955) | |
| APEX.28SWS-SKT2 | 1.25-2.0 mm2 (16-14 AWG) | Tin | 54001404 (13627267) |
| - | Gold | 54001410 (15470590) | |
| APEX.28SWS-SKT3 | 3.0 mm2 (12 AWG) | Tin | 54001202 (10810733) |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 3.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford 9U5T-14474-KA (54001879), 9U5T-14474-JA (54001448), XL3T-14474-DA (54001840), XL3T-14474-AA (54001432)

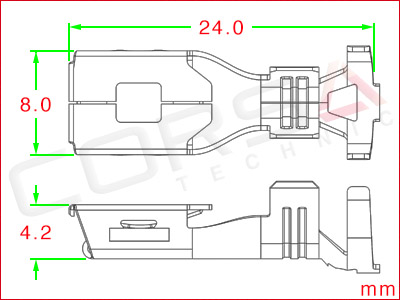

APEX.63SWS-SKT
APEX 6.3 Single Wire Sealing Socket Contact
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
| Wire Size | Plating | Part Number (Aptiv p/n) | |
|---|---|---|---|
| APEX.63SWS-SKT1 | .75-1.5 mm2 (18-16 AWG) | Tin | 54001623 (13673119) |
| - | Tin/Silver | F185900 (15509071) | |
| APEX.63SWS-SKT2 | 2-3 mm2 (14-12 AWG) | Tin | 54001200/54001224 (13658862) |
| - | Tin/Silver | F285900 (15509072) | |
| APEX.63SWS-SKT3 | 4-6 mm2 (10 AWG) | Tin | 54001004/54001023 (10863886) |
| - | Tin/Silver | F385900 (13874918) | |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Single Wire Sealed
- Contact Size:6.3mm (.250)
- Wire Size:0.75 - 6.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:55A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Ford 1L5T-14474-AA (SKT2)
MP150-SL
Metri-Pack 150 Sealed Seals
Mfr: Delphi
Series: Metri-Pack 150 Sealed series
Mfr: Delphi
Series: Metri-Pack 150 Sealed series
| Wire Insulation Dia. | Color | Part Number | Alt. Info | |
|---|---|---|---|---|
| MP150-SL1 | 1.29-1.70 mm (.051-.067 in) | Blue | 15324974 | old: 12048087, spool: 12052925 |
| MP150-SL2 | 1.60-2.15 mm (.063-.085 in) | White | 15324976 | |
| MP150-SL3 | 2.03-2.85 mm (.080-.112 in) | Red | 15324973 | old: 12048086 |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
Mechanical
- Seal Material:Silicone Rubber
MP630-SL
Metri-Pack 630 Seals
Mfr: Delphi
Series: Metri-Pack 630 series, and used in APEX 2.8 + 6.3 Hybrid
Mfr: Delphi
Series: Metri-Pack 630 series, and used in APEX 2.8 + 6.3 Hybrid
| Wire Insulation Dia. | Color | Part Number | Alt. Info | |
|---|---|---|---|---|
| MP630-SL1 | 1.65-2.15 mm (.065-.085 in) | Tan | 15324997 | old: 12077759, reel: 12077760 |
| MP630-SL2 | 2.01-2.85 mm (.079-.112 in) | Dk. Red | 15324995 | old: 12052388, reel: 12059259 |
| MP630-SL3 | 2.81-3.75 mm (.111-.148 in) | Gray | 15324994 | old: 12052387, reel: 12059258 |
| MP630-SL4 | 3.61-4.50 mm (.142-.177 in) | Blue | 15324996 | old: 12052668, reel: 12059260 |
| MP630-SL5 | 4.40-5.15 mm (.173-.203 in) | Green | 15324993 | old: 12052386, reel: 12059257 |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
Mechanical
- Seal Material:Silicone Rubber
Environmental
- Temp Range[2]:-40 - 140 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
- Lear 329983050, Yazaki 7158-3264-40 (-SL3)
