Metri-Pack 630 Rear Insert, Sealed
MP630-PIN

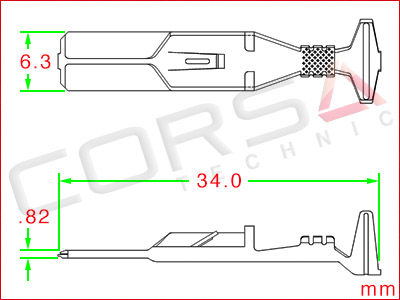

Metri-Pack 630 Sealed Pin Contact
Mfr: Delphi
Series: Metri-Pack 630 series
Mfr: Delphi
Series: Metri-Pack 630 series
| Wire Size | P/N | |
|---|---|---|
| MP630-PIN1 | .5-.8 mm2 (20-18 AWG) | 12064734 |
| MP630-PIN2 | 1.0-2.0 mm2 (16-14 AWG) | 12064735 |
| MP630-PIN3 | 3.0 mm2 (12 AWG) | 12064737 |
| MP630-PIN4 | 5.0 mm2 (10 AWG) | 12064736 |
| Available stock: Aftermarket OEM | ||
Mfr Drawing (12065869_08.pdf)General
- Sealing:Single Wire Sealed
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 5.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:46A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP630-SKT

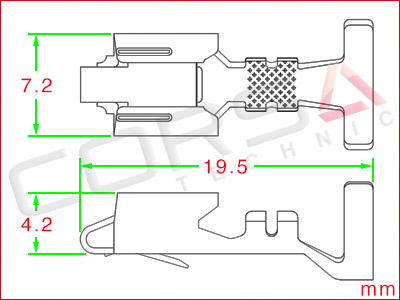

Metri-Pack 630 Sealed Socket Contact
Mfr: Delphi
Series: Metri-Pack 630 series
Mfr: Delphi
Series: Metri-Pack 630 series
| Wire Size | P/N | |
|---|---|---|
| MP630-SKT1 | .5-.8 mm2 (20-18 AWG) | 12052457 |
| MP630-SKT2 | 1.0-2.0 mm2 (16-14 AWG) | 12052455 |
| MP630-SKT3 | 3.0-5.0 mm2 (12-10 AWG) | 12052456 |
| MP630-SKT4 | 4.0-6.0 mm2 (10 AWG) | 15317331 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Single Wire Sealed
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 6.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:46A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MP630-PG
Metri-Pack 630 Seal Plug
Mfr: OEM Delphi
Series: Metri-Pack 630 series
OEM P/N: 12059255
Mfr: OEM Delphi
Series: Metri-Pack 630 series
OEM P/N: 12059255
Cavity plug for unused connector positions.
General
- Sealing:Single Wire Sealed
Mechanical
- Seal Material:Silicone Rubber
Environmental
- Temp Range[2]:-40 - 140 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
MP630-SL
Metri-Pack 630 Seals
Mfr: Delphi
Series: Metri-Pack 630 series, and used in APEX 2.8 + 6.3 Hybrid
Mfr: Delphi
Series: Metri-Pack 630 series, and used in APEX 2.8 + 6.3 Hybrid
| Wire Insulation Dia. | Color | Part Number | Alt. Info | |
|---|---|---|---|---|
| MP630-SL1 | 1.65-2.15 mm (.065-.085 in) | Tan | 15324997 | old: 12077759, reel: 12077760 |
| MP630-SL2 | 2.01-2.85 mm (.079-.112 in) | Dk. Red | 15324995 | old: 12052388, reel: 12059259 |
| MP630-SL3 | 2.81-3.75 mm (.111-.148 in) | Gray | 15324994 | old: 12052387, reel: 12059258 |
| MP630-SL4 | 3.61-4.50 mm (.142-.177 in) | Blue | 15324996 | old: 12052668, reel: 12059260 |
| MP630-SL5 | 4.40-5.15 mm (.173-.203 in) | Green | 15324993 | old: 12052386, reel: 12059257 |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Single Wire Sealed
Mechanical
- Seal Material:Silicone Rubber
Environmental
- Temp Range[2]:-40 - 140 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
- Lear 329983050, Yazaki 7158-3264-40 (-SL3)
