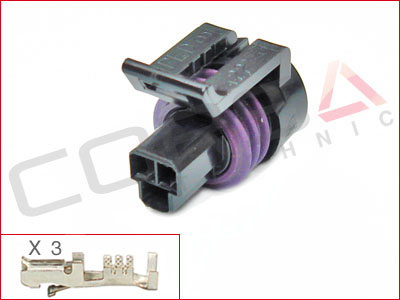

Metri-Pack 150 Pull to Seat, Sealed
MP150P-3S
3-Way Kit
Kit Contents: Housing, 3 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150 Pull to Seat Series
OEM P/N: 12065287
Mating Part: N/A, device only
Kit Contents: Housing, 3 socket contacts
Mfr: OEM Delphi
Series: Metri-Pack 150 Pull to Seat Series
OEM P/N: 12065287
Mating Part: N/A, device only
3D STEP (12065287.zip)
Mfr Drawing (12078088_03.pdf)General
- Sealing:Matte Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:3.4mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
- Oil pressure sensor on some newer Ducati models
MP150P-SKT
Metri-Pack 150 Socket Contact
Mfr: Delphi
Series: Metri-Pack 150 Pull to Seat Series
Mfr: Delphi
Series: Metri-Pack 150 Pull to Seat Series
| Wire Size | P/N | |
|---|---|---|
| MP150P-SKT1 | .35-.5 mm2 (22-20 AWG) | 12089290 |
| MP150P-SKT2 | .8-1.0 mm2 (18 AWG) | 12103881 |
| Available stock: Aftermarket OEM | ||
General
- Sealing:Matte Sealed
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TOOL-CDIE74
Rennsteig PEW 12 Die Set for Delphi/Aptiv MP-150 Pull to Seat terminals
Kit Contents: Crimp die set, locator, wire stop
OEM P/N: 624 1490 3 012 RT
Kit Contents: Crimp die set, locator, wire stop
OEM P/N: 624 1490 3 012 RT
| Compatibility | |||
|---|---|---|---|
| P/N | Wire Size | Aptiv P/N | |
| ✓ | MP150.2-SKT1 | .35-.5 mm2 (22-20) | 12124076 |
| ✓ | MP150.2-SKT2 | .8-1.0 mm2 (18 AWG) | 12124075 |
| ✓ | MP150P-SKT1 | .35-.5 mm2 (22-20) | 12089290 |
| ✓ | MP150P-SKT2 | .8-1.0 mm2 (18 AWG) | 12103881 |
- Aptiv 13782652
