MP150P-3P3-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

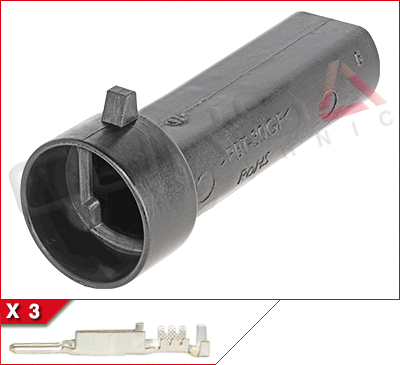

Kit Contents:
Housing, 3 pin contacts, rear seal
Mfr:Aftermarket Delphi
Series:Not technically part of these series, but is an applicable mate to a connector of these series: GT-150 3.5mm CL Sealed Series, Metri-Pack 150 Pull to Seat Series
OEM P/N:410027
Mating Part:GT150.35-3S-6, MP150P-3S
Documents
Crimp Specs, PIN1 (12059894-CS.pdf)Specifications
General
- Sealing:Matte Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:2
- Pitch:3.5mm
- Row Spacing:3.4mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
