Deutsch AS Series Connectors

AS 13 Position Flange Recept., Keying N = Red
AS010-35SN

AS010-35SN
AS 13 Position Flange Recept., Keying N = Red
OEM P/N: AS010-35SN

AS010-35SN AS 13 Position Flange Recept., Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS010-35SN
Part Name: RECEPT. 2 HOLE MNT. TYPE 0
Keying: N = Red
Mating Part: AS610-35PN

General

Sealing:Matte Sealed
Number of Ways:13
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Panel Mount

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.

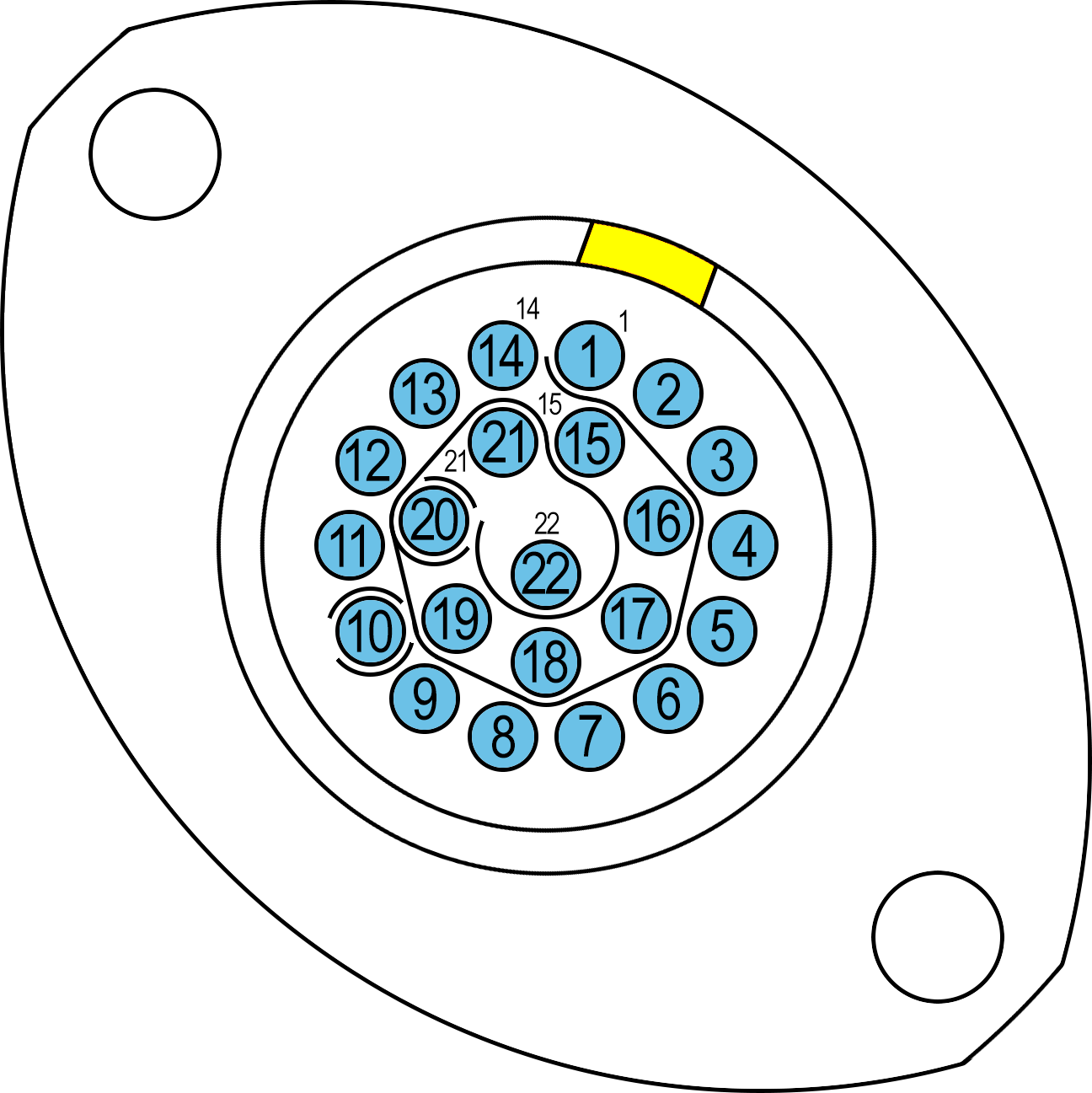

AS 22 Position Flange Recept., Keying A = Yellow
AS012-35SA

AS012-35SA
AS 22 Position Flange Recept., Keying A = Yellow
OEM P/N: AS012-35SA

View Item

AS012-35SA AS 22 Position Flange Recept., Keying A = Yellow
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS012-35SA
Part Name: RECEPT. 2 HOLE MNT. TYPE 0
Keying: A = Yellow
Mating Part: AS612-35PA

General

Sealing:Matte Sealed
Number of Ways:22
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Panel Mount

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.

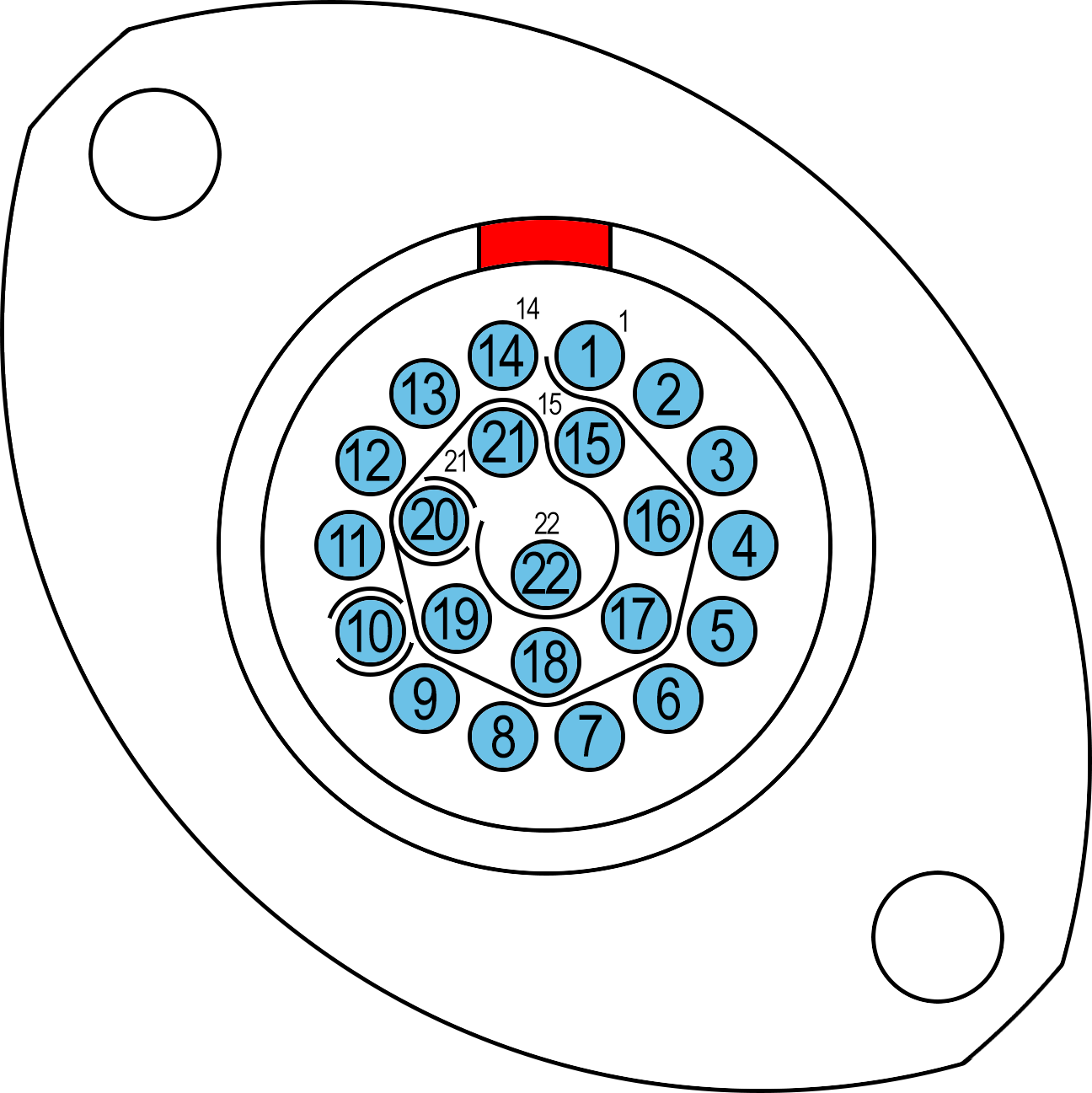

AS 22 Position Flange Recept., Keying N = Red
AS012-35SN

AS012-35SN
AS 22 Position Flange Recept., Keying N = Red
OEM P/N: AS012-35SN

View Item

AS012-35SN AS 22 Position Flange Recept., Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS012-35SN
Part Name: RECEPT. 2 HOLE MNT. TYPE 0
Keying: N = Red
Mating Part: AS612-35PN

General

Sealing:Matte Sealed
Number of Ways:22
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Panel Mount

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

AiM Steering Wheel 4 (SW4), chassis side

This item is backordered.

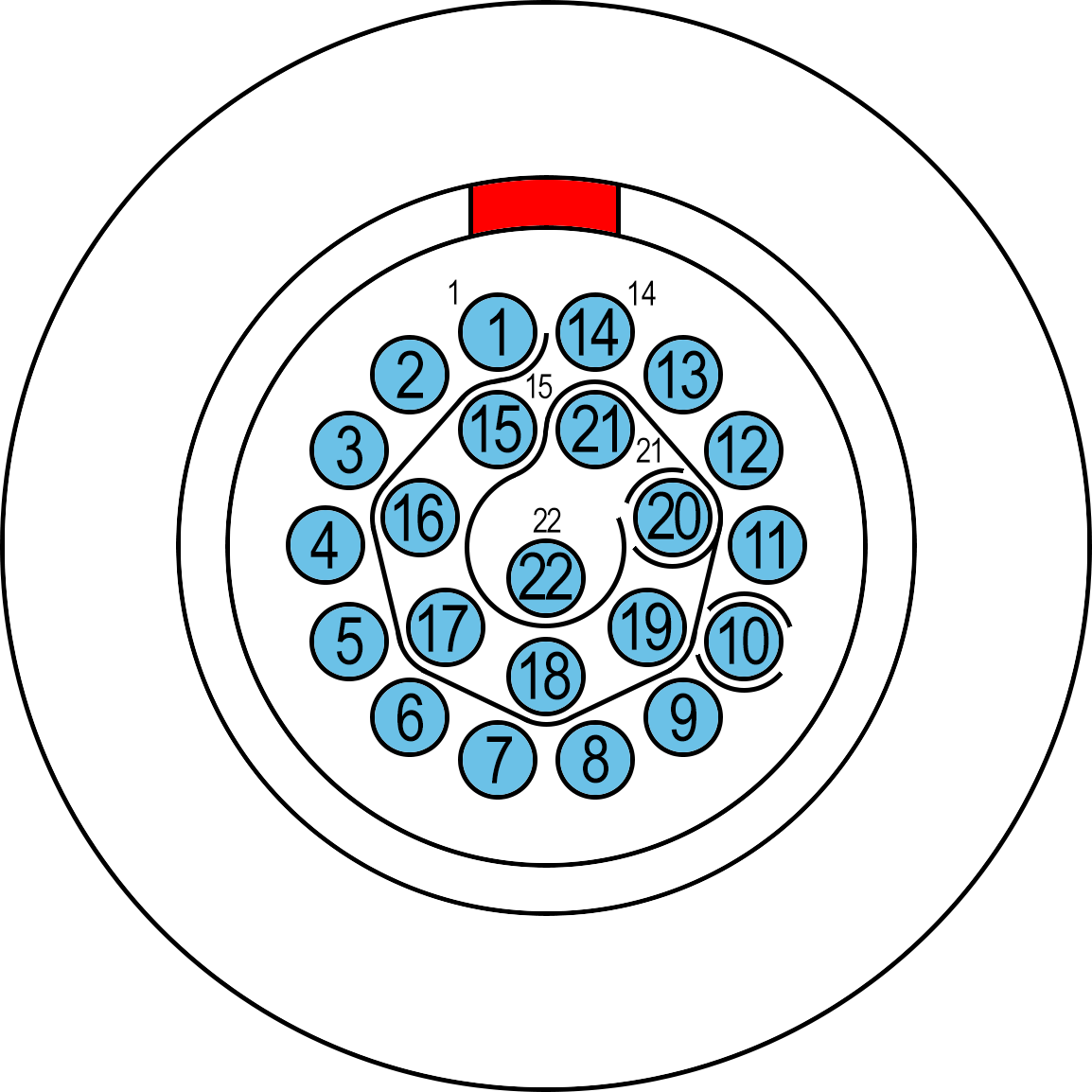

AS 22 Position Inline Recept., Keying N = Red
AS112-35PN

AS112-35PN
AS 22 Position Inline Recept., Keying N = Red
OEM P/N: AS112-35PN

View Item

AS112-35PN AS 22 Position Inline Recept., Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS112-35PN
Part Name: RECEPT. CABLE COUP. TYPE 1
Keying: N = Red
Mating Part: AS612-35SN

General

Sealing:Matte Sealed
Number of Ways:22
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Pin, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.

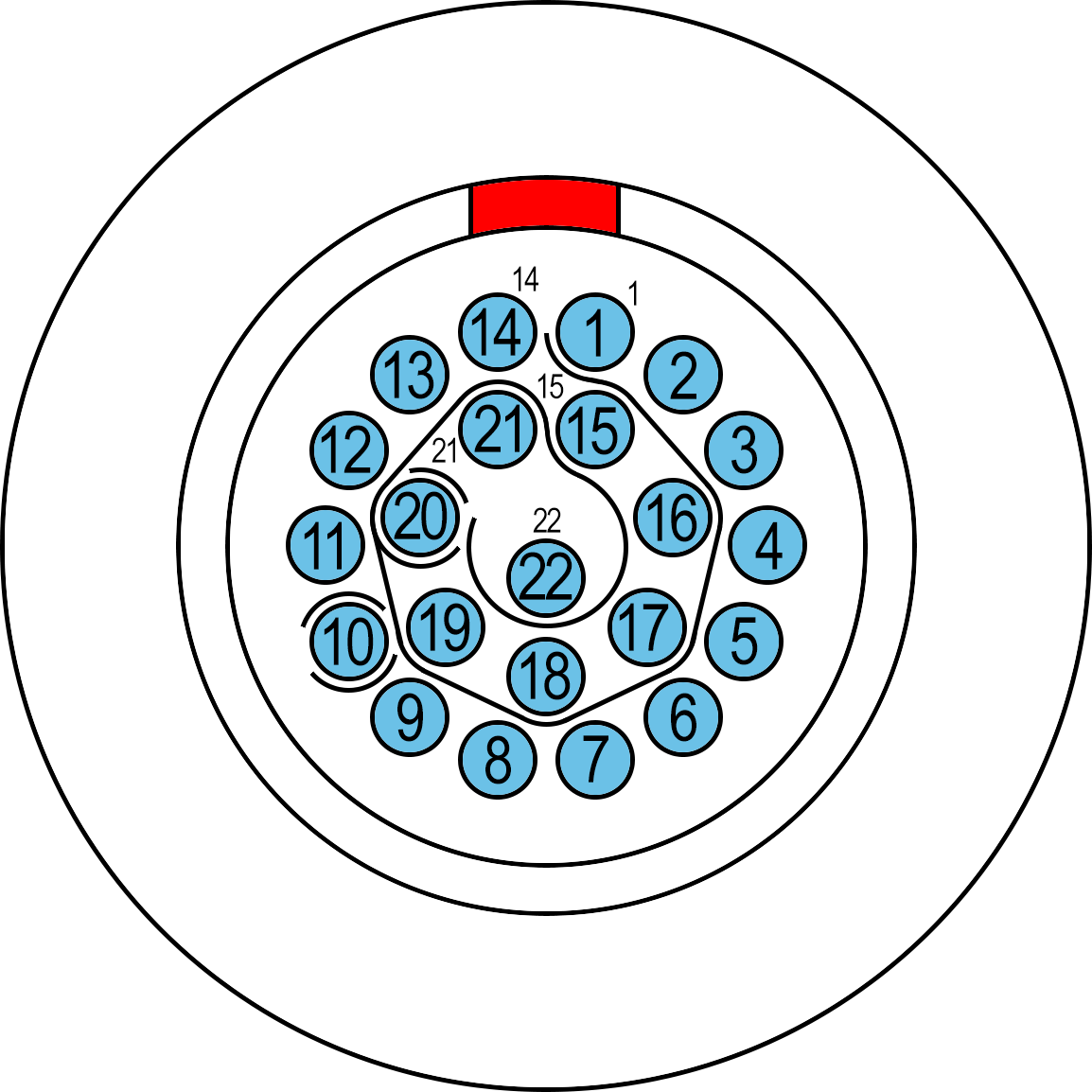

AS 22 Position Inline Recept., Keying N = Red
AS112-35SN

AS112-35SN
AS 22 Position Inline Recept., Keying N = Red
OEM P/N: AS112-35SN

View Item

AS112-35SN AS 22 Position Inline Recept., Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS112-35SN
Part Name: RECEPT. CABLE COUP. TYPE 1
Keying: N = Red
Mating Part: AS612-35PN

General

Sealing:Matte Sealed
Number of Ways:22
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.

AS 13 Position Plug, Keying N = Red
AS610-35PN

AS610-35PN
AS 13 Position Plug, Keying N = Red
OEM P/N: AS610-35PN

View Item

AS610-35PN AS 13 Position Plug, Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS610-35PN
Part Name: PLUG BOOT TERMINN TYPE 6
Keying: N = Red
Mating Part: AS010-35SN, AS110-35SN, AS210-35SN

General

Sealing:Matte Sealed
Number of Ways:13
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Pin, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.

AS 13 Position Plug, Keying A = Yellow
AS610-35SA

AS610-35SA
AS 13 Position Plug, Keying A = Yellow
OEM P/N: AS610-35SA

View Item

AS610-35SA AS 13 Position Plug, Keying A = Yellow
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS610-35SA
Part Name: PLUG BOOT TERMINN TYPE 6
Keying: A = Yellow
Mating Part: AS010-35PA, AS110-35PA, AS210-35PA

General

Sealing:Matte Sealed
Number of Ways:13
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.

AS 13 Position Plug, Keying N = Red
AS610-35SN

AS610-35SN
AS 13 Position Plug, Keying N = Red
OEM P/N: AS610-35SN

View Item

AS610-35SN AS 13 Position Plug, Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS610-35SN
Part Name: PLUG BOOT TERMINN TYPE 6
Keying: N = Red
Mating Part: AS010-35PN, AS110-35PN, AS210-35PN

General

Sealing:Matte Sealed
Number of Ways:13
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Motec ADR2 data recorder

This item is backordered.

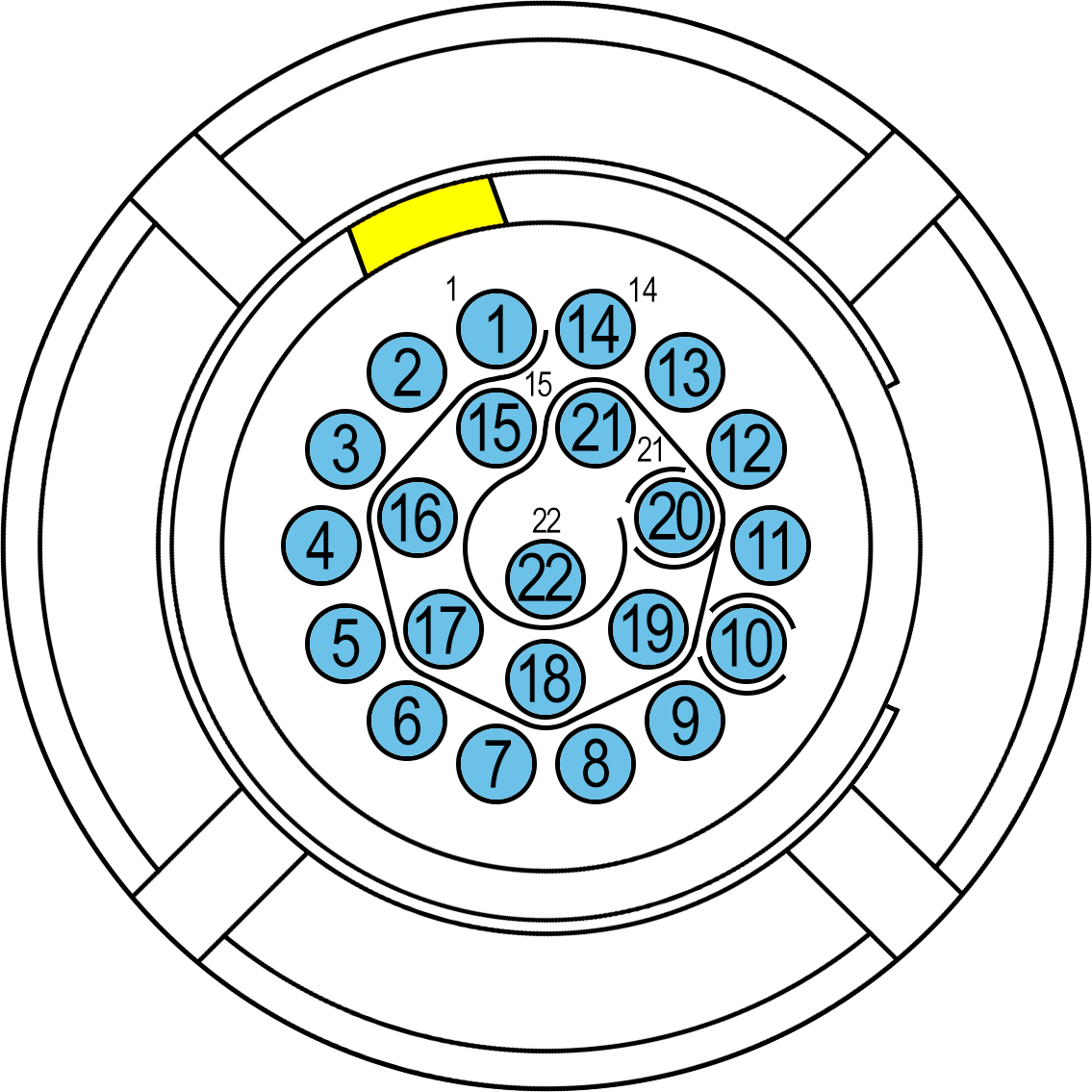

AS 22 Position Plug, Keying A = Yellow
AS612-35PA

AS612-35PA
AS 22 Position Plug, Keying A = Yellow
OEM P/N: AS612-35PA

View Item

AS612-35PA AS 22 Position Plug, Keying A = Yellow
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS612-35PA
Part Name: PLUG BOOT TERMINN TYPE 6
Keying: A = Yellow
Mating Part: AS012-35SA, AS112-35SA, AS212-35SA

General

Sealing:Matte Sealed
Number of Ways:22
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Pin, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

This item is backordered.

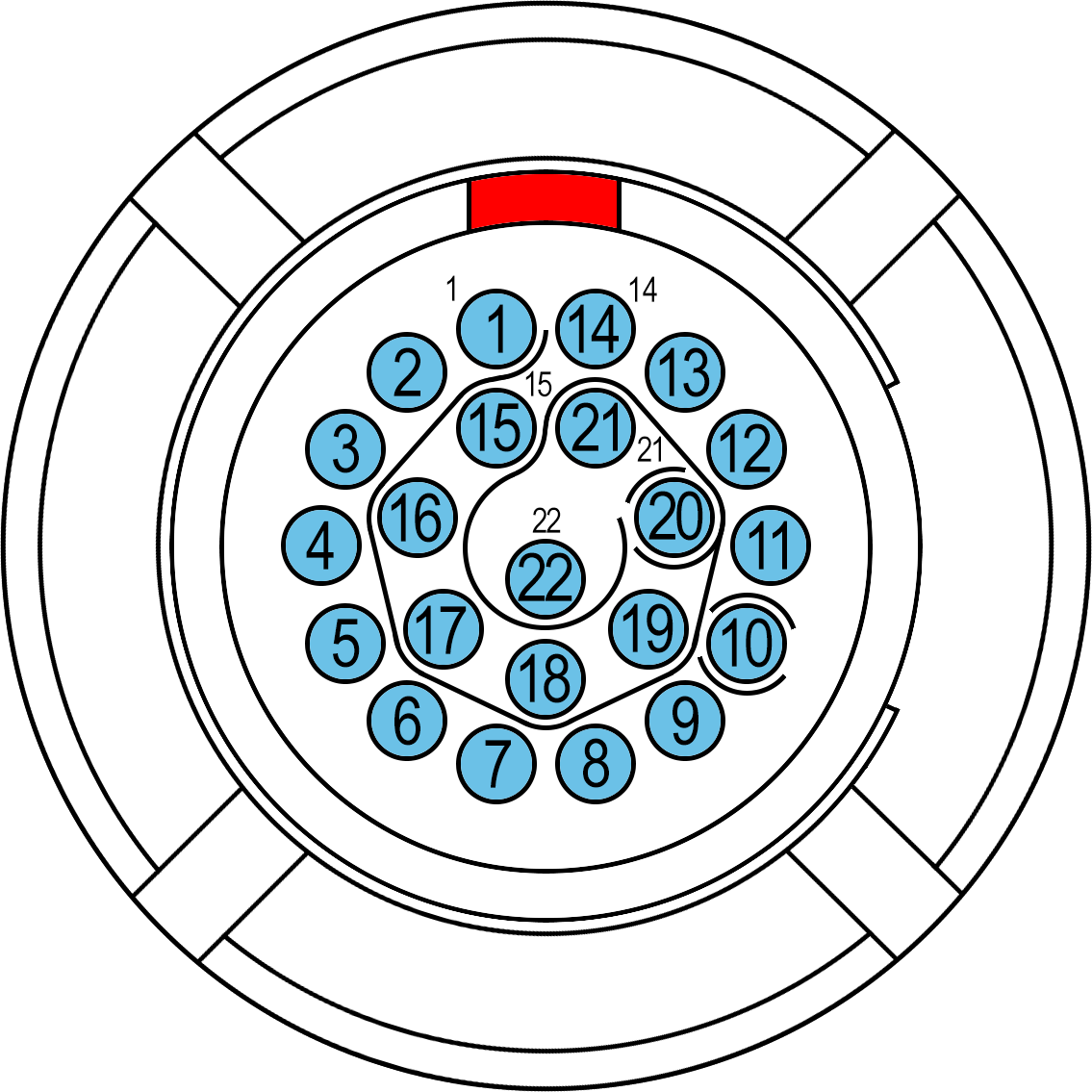

AS 22 Position Plug, Keying N = Red
AS612-35PN

AS612-35PN
AS 22 Position Plug, Keying N = Red
OEM P/N: AS612-35PN

View Item

AS612-35PN AS 22 Position Plug, Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS612-35PN
Part Name: PLUG BOOT TERMINN TYPE 6
Keying: N = Red
Mating Part: AS012-35SN, AS112-35SN, AS212-35SN

General

Sealing:Matte Sealed
Number of Ways:22
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Pin, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

AIM Steering Wheel 4 (SW4), steering wheel sub-harness side
Life Racing MCHL (Mini Comms Hub Lite)

This item is backordered.

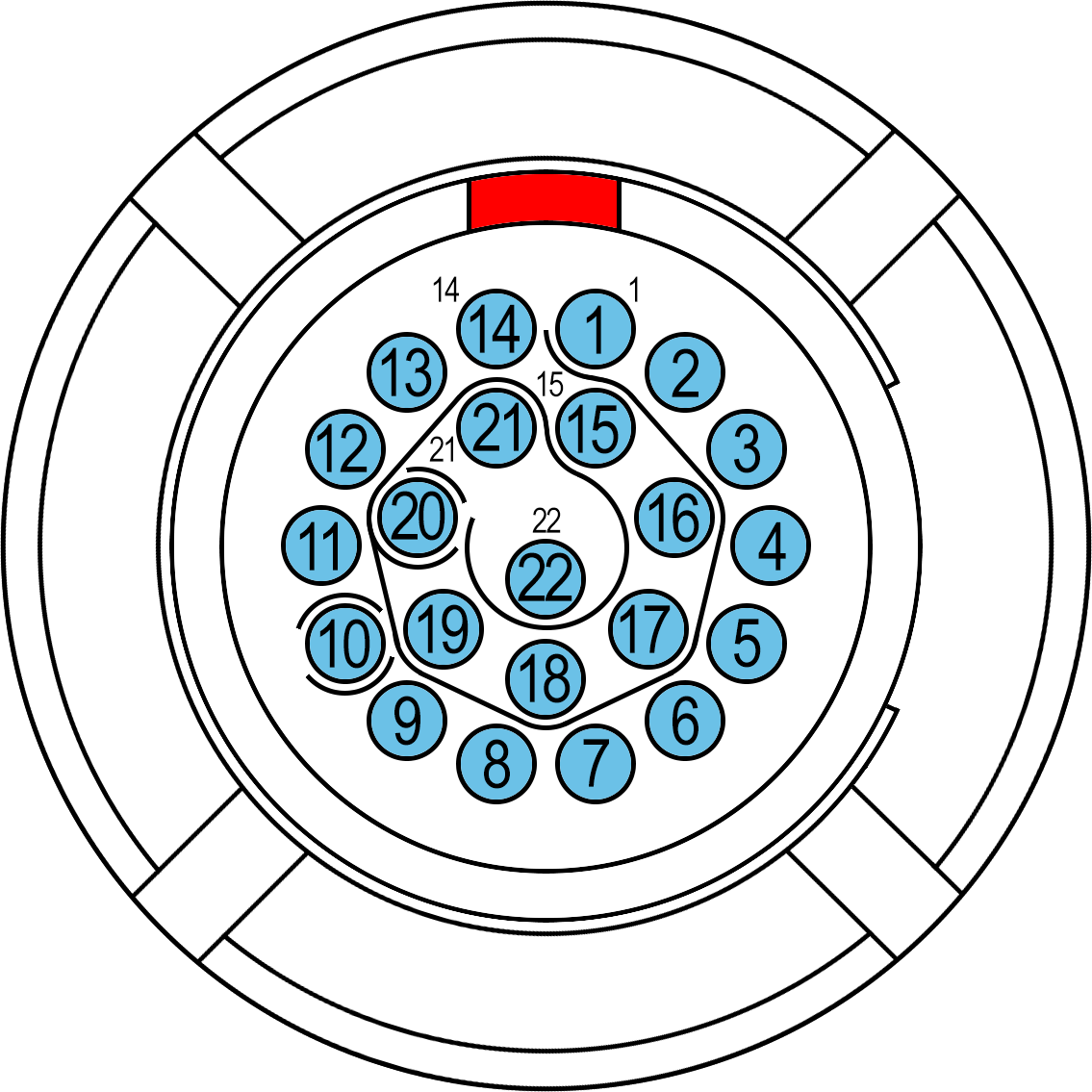

AS 22 Position Plug, Keying N = Red
AS612-35SN

AS612-35SN
AS 22 Position Plug, Keying N = Red
OEM P/N: AS612-35SN

View Item

AS612-35SN AS 22 Position Plug, Keying N = Red
Kit Contents: Complete with crimp contacts and insertion/extraction tool

Mfr: Deutsch
Series: AS Series
OEM P/N: AS612-35SN
Part Name: PLUG BOOT TERMINN TYPE 6
Keying: N = Red
Mating Part: AS012-35PN, AS112-35PN, AS212-35PN

General

Sealing:Matte Sealed
Number of Ways:22
Contact Size:Size 22D
Wire Size:0.08 - 0.35 mm²
Number of Rows:N/A
Pitch:N/A, Circular
Numbered Cavities:Yes, Numbered

Mechanical

Contact Type:Socket, circular
Termination:Closed barrel crimp
Lance Type:Housing Lance
Housing Material:Aluminum alloy
Seal Material:Silicone Rubber
Mounting Style:Free hanging

Electrical

Current Rating^[1]:5A

Environmental

Temp Range^[2]:-55 - 175 °C
Protection Rating:IP67

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

AiM EVO5, EVO6 logger
AiM MX 1.3 series dash loggers
AiM SmartyCam 3 Dual
Life Racing GDI Driver8 (conn. 2)
Motec D175 display

AiM 5CN822F00
Motec #65048

This item is backordered.
