SurLok Plus
Display:
SLP120-1S-25
SurLok Plus Right Angle PlugMfr: Amphenol
Series: SurLok Plus
OEM P/N: Orange: SLPPA25BSO
Red: SLPPA25BSR
Black: SLPPA25BSB
Part Name: C10-730186-x00
Keying: No Keyway
Radsok Size: 5.7mm (120A max.)
Conductor Size: 25 mm2 (4 AWG)
Cable Size: 10.2mm dia. (0.40" dia.)
3D STEP (C10-730186-X00_G.zip)
Drawing (C10-730186_G.pdf)

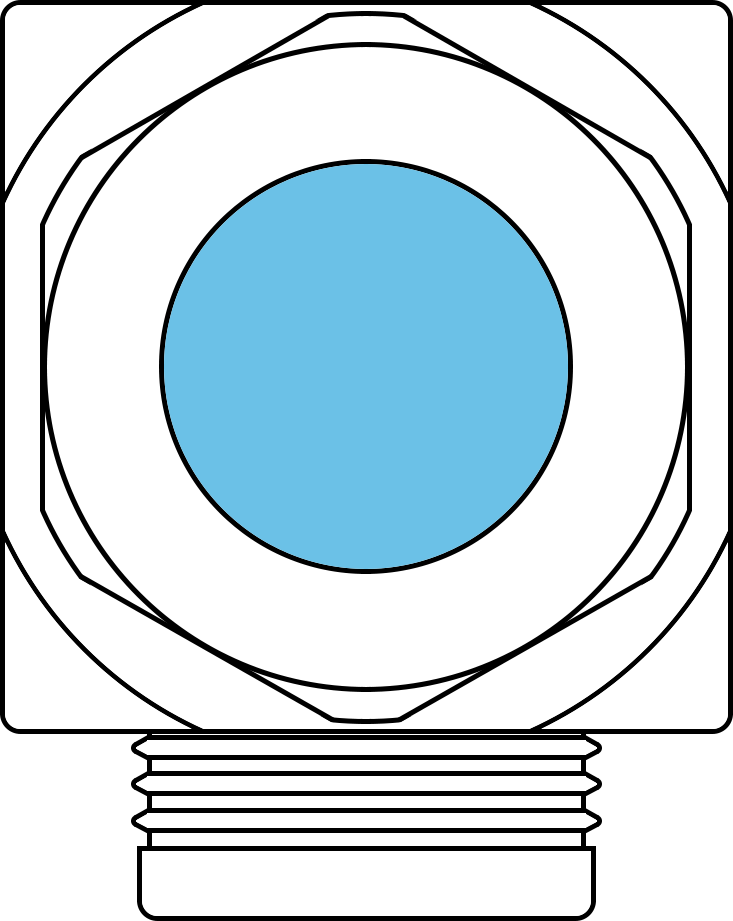

Rearview Pinout (SLP120-1S-25.png)
General
- Sealing:Matte Sealed
- Number of Ways:1
- Contact Size:5.7mm
- Wire Size:25.00 - 25.00 mm2
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, circular
- Termination:Closed barrel crimp
- Housing Material:Thermoplastic
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:120A
Environmental
- Temp Range[2]:-40 - 105 °C
- Protection Rating:IP67
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
