DC15-2S-A
2-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

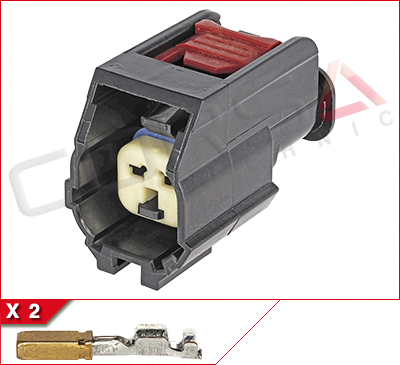

Kit Contents:
Housing, 2x socket contacts for 20-18 AWG wire
Mfr:OEM Molex
Series:1.5mm Blade System
OEM P/N:33214-0002 (old p/n: A30UP-0201Z)
Mating Part:N/A, device only
Documents
Drawing (SD-33214-002_G1.pdf)Specifications
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:1.5mm (.060)
- Wire Size:0.20 - 1.25 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6+GF
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:Yes
Cross Reference List
- Chrysler 04793107
- Mopar 05017119AA repair kit connector
Related Items:
|
DC15-SKT2 1.5mm Blade System Socket Contact |
