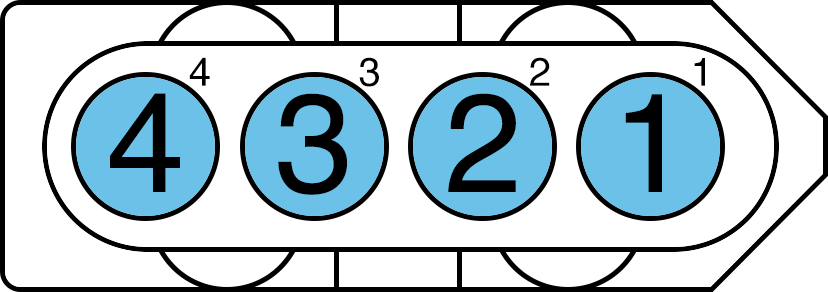

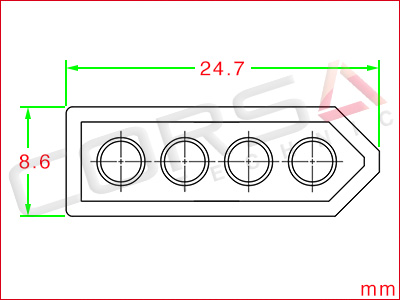

Standard .093"
MX093-4P
4-Way Kit
Kit Contents: Housing, 4 pin contacts
Mfr: Molex
Series: Standard .093" Series
OEM P/N: 03-09-2042
Mating Part: MX093-4S
Kit Contents: Housing, 4 pin contacts
Mfr: Molex
Series: Standard .093" Series
OEM P/N: 03-09-2042
Mating Part: MX093-4S
3D STEP (0003092042.zip)
Mfr Drawing (14900000-SD_A1.pdf)General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.36mm dia. (.093)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
- Voltage Rating:600V
Environmental
- Temp Range[2]:-40 - 105 °C
- Flammability Rating:UL94 V-2
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

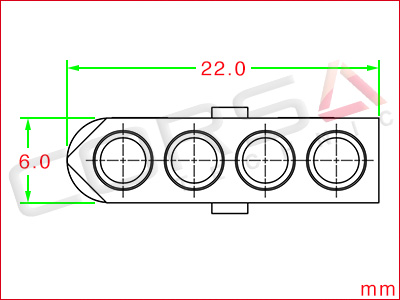

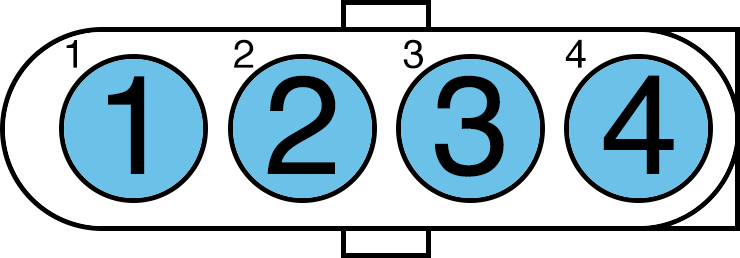

MX093-4S
4-Way Kit
Kit Contents: Housing, 4 socket contacts
Mfr: Molex
Series: Standard .093" Series
OEM P/N: 03-09-1042
Mating Part: MX093-4P
Kit Contents: Housing, 4 socket contacts
Mfr: Molex
Series: Standard .093" Series
OEM P/N: 03-09-1042
Mating Part: MX093-4P
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.36mm dia. (.093)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
- Voltage Rating:600V
Environmental
- Temp Range[2]:-40 - 105 °C
- Flammability Rating:UL94 V-2
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

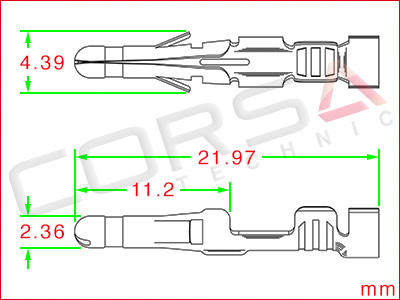

MX093-PIN
Standard .093" Pin Contact
Mfr: Molex
Series: Standard .093" Series
Mfr: Molex
Series: Standard .093" Series
| Wire Size | Strip | Loose | |
|---|---|---|---|
| MX093-PIN1 | .3-.85 mm2 (22-18 AWG) | 02-09-2116 | 02-09-2118 |
| MX093-PIN2 | .5-2.0 mm2 (20-14 AWG) | 02-09-2101 | 02-09-2103 |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:2.36mm dia. (.093)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Pin, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX093-SKT
Standard .093" Socket Contact
Mfr: Molex
Series: Standard .093" Series
Mfr: Molex
Series: Standard .093" Series
| Wire Size | Strip | Loose | |
|---|---|---|---|
| MX093-SKT1 | .3-.85 mm2 (22-18 AWG) | 02-09-1117 | 02-09-1119 |
| MX093-SKT2 | .5-2.0 mm2 (20-14 AWG) | 02-09-1102 | 02-09-1104 |
| Available stock: Aftermarket OEM | |||
General
- Sealing:Unsealed
- Contact Size:2.36mm dia. (.093)
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
