MX64 Series
Display:
MX64-2S-C
2-Way KitKit Contents: Housing, 2x socket contacts for 22awg wire
Mfr: OEM Molex
Series: MX64
OEM P/N: 31403-2600 w/o CPA
31403-2610 w/CPA (IN STOCK)
Keying: C
Mating Part: N/A, device only
3D STEP (31403-2610.zip)
Drawing (SD-31402-211_U8.pdf)
General
- Sealing:Matte Sealed
- Number of Ways:2
- Contact Size:0.64mm (.025)
- Wire Size:0.35 - 0.75 mm2
- Number of Rows:1
- Pitch:2.54mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:11A
- Voltage Rating:20V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
MX64-3S-A
3-Way KitKit Contents: Housing, 3x socket contacts for 22awg wire
Mfr: OEM Molex
Series: MX64
OEM P/N: 31403-3100 w/o CPA
31403-3110 w/CPA (IN STOCK)
Keying: A
Mating Part: N/A, device only
General
- Sealing:Matte Sealed
- Number of Ways:3
- Contact Size:0.64mm (.025)
- Wire Size:0.35 - 0.75 mm2
- Number of Rows:1
- Pitch:2.54mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT+GF15
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:11A
- Voltage Rating:20V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

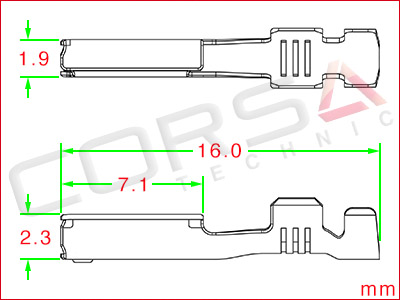

MX64-SKT
MX64 Socket ContactMfr: Molex
Series: MX64
| Wire Size | Plating | RH "B" Wind | LH "D" Wind | |
|---|---|---|---|---|
| MX64-SKT1 | .35 mm2 (22 AWG) 1.47-1.65mm Insulation dia | Tin Plated | 33468-0001 | 33468-0002 |
| -Au | Gold Plated | 33467-0003 | 33467-0004 | |
| MX64-SKT2 | .5-.75 mm2 (20-18 AWG) 1.70-2.06mm Insulation dia | Tin Plated | 33468-0003 | 33468-0004 |
| -Au | Gold Plated | 33467-0005 | 33467-0006 | |
| Available stock: Aftermarket OEM | ||||
General
- Sealing:Matte Sealed
- Contact Size:0.64mm (.025)
- Wire Size:0.35 - 0.75 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:11A
- Voltage Rating:20V
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
TOOL-CDIE79
Rennsteig PEW 12 Die Set for JST AIT 064, Molex MX64
Kit Contents: Crimp die set, locator, wire stop
OEM P/N: 624 363 3 012 RT
Kit Contents: Crimp die set, locator, wire stop
OEM P/N: 624 363 3 012 RT
| Compatibility | ||||
|---|---|---|---|---|
| P/N | Wire Size | Plating | P/N | |
| ✓ | ATSS-SKT1 | .3-.5 mm2 (22-20 AWG) | Tin | SAIT-A03T-M064 |
| Gold | SAIT-A03GF-M064 | |||
| ✗ | ATSS-SKT2 | .75-.8 mm2 (18 AWG) | Tin | SAIT-A02T-M064 |
| Gold | SAIT-A02GF-M064 | |||
| ✗ | MX64-SKT1 | .3 mm2 (22 AWG) | Tin | 33468-0001, 33468-0002 |
| Silver | 34736-2001, 34736-1001 | |||
| Gold | 33467-0003, 33467-0004 | |||
| ✓ | MX64-SKT2 | .5-.8 mm2 (20-18 AWG) | Tin | 33468-0003, 33468-0004 |
| Silver | 34736-2002, 34736-1002 | |||
| Gold | 33467-0005, 33467-0006 | |||
